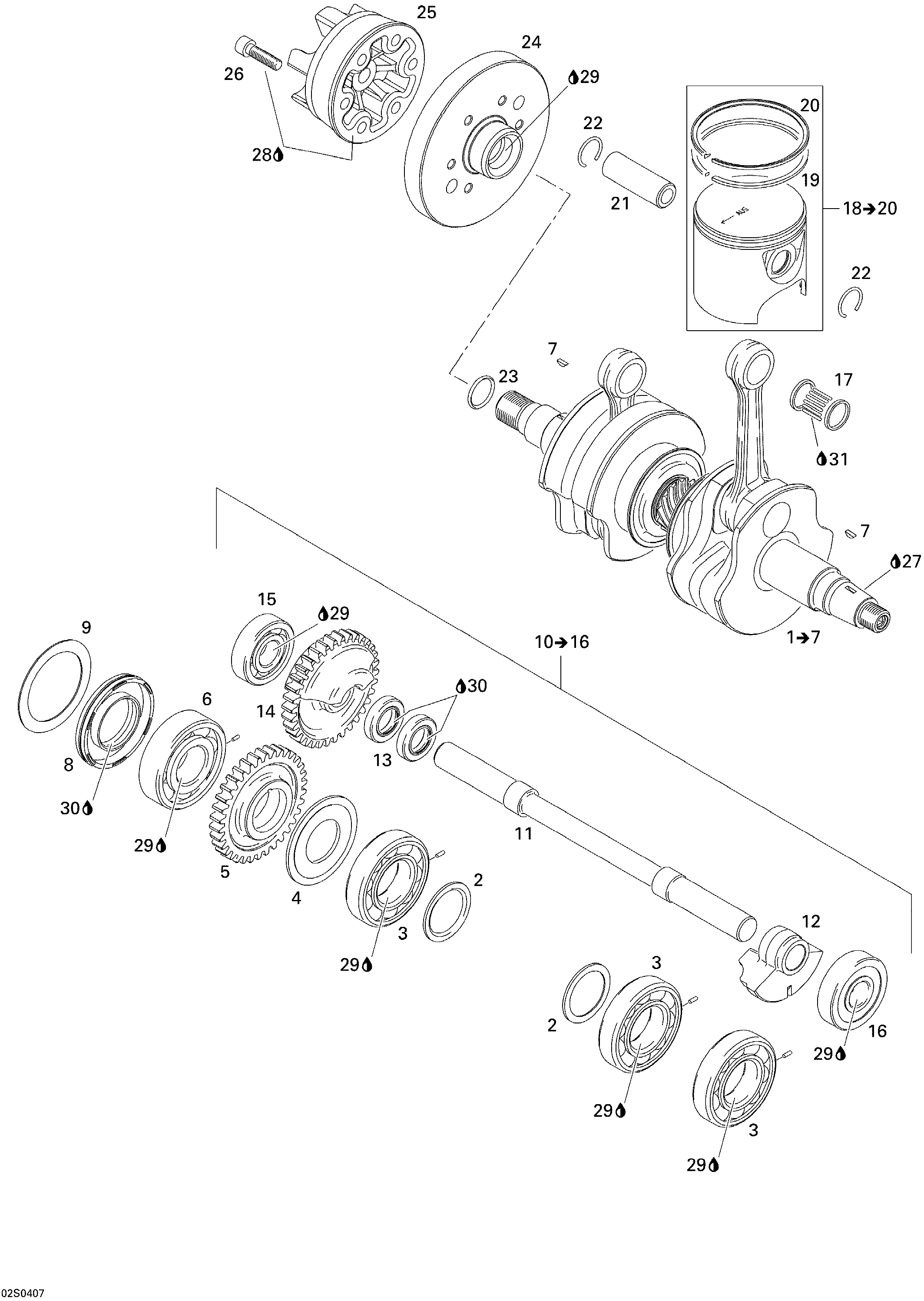

01- Crankshaft, Pistons And Balance Shaft для BRP 3D RFI - 2004
-
№АртикулНазвание
-
1420887891 Crankshaft 787 Ass'Y. Includes 1 to 7Crankshaft 787 Ass'Y. Includes 1 to 7
-
2420827760 Distance RingDistance Ring
-
3420832573 Ball Bearing Ass'YBall Bearing Ass'Y
-
4420926140 Labyrinth WasherLabyrinth Washer
-
5420834315 Gear 43 TeethGear 43 Teeth
-
6420932579 Ball BearingBall Bearing
-
7420246055 Woodruff KeyWoodruff Key
-
8420830638 Oil SealOil Seal
-
9420926060 Retaining ShimRetaining Shim
-
10420837406 Balance Shaft Ass'Y. Includes 10 to 16Balance Shaft Ass'Y. Includes 10 to 16
-
11420837400 Balanced Shaft 787Balanced Shaft 787
-
12420818800 Balanced MassBalanced Mass
-
13420930390 Oil SealOil Seal
-
14420834305 Balanced Gear (43 Teeth)Balanced Gear (43 Teeth)
-
15420932095 Ball BearingBall Bearing
-
16420932098 Ball BearingBall Bearing
-
17420832421 Needle BearingNeedle Bearing
-
18420888410 Piston With 2 Rings, 81.91 mm. Includes 18 to 20Piston With 2 Rings, 81.91 mm. Includes 18 to 20
-
18420888411 Piston Oversize, 2 Rings, 82.16 mm. Includes 18 to 20Piston Oversize, 2 Rings, 82.16 mm. Includes 18 to 20
-
19420815080 Rectangular Ring 82.00 mmRectangular Ring 82.00 mm
-
19420815081 Rectangular Ring 82.25 mmRectangular Ring 82.25 mm
-
20420815100 Semi-trapez Ring 82.00 mmSemi-trapez Ring 82.00 mm
-
20420815101 Semi-trapez Ring 82.25 mmSemi-trapez Ring 82.25 mm
-
21420916404 Piston PinPiston Pin
-
22420845100 CirclipCirclip
-
23420430782 O-RingO-Ring
-
24420958145 Coupling Ass'y (black)Coupling Ass'y (black)
-
25420958137 CouplingCoupling
-
26420840993 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
29293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
30413707000 Molykote 111Molykote 111
-
31413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
