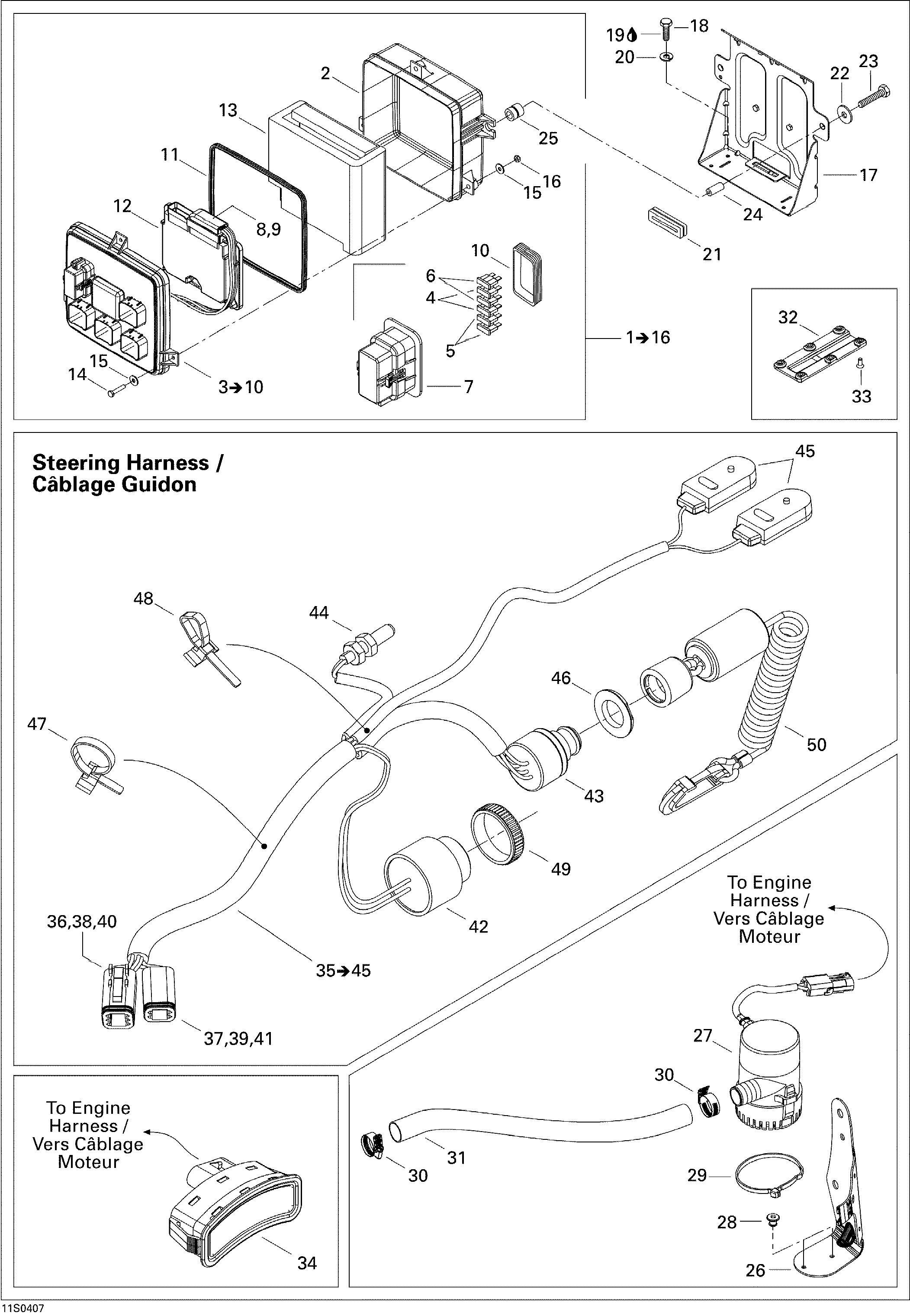

10- Electrical Accessories для BRP 3D RFI - 2004
-
№АртикулНазвание
-
2278000938 Electronic Box BaseElectronic Box Base
-
3278001981 Electronic Module. Includes 3 to 10Electronic Module. Includes 3 to 10
-
4278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
5278001197 Fuse (10 Amperes)Fuse (10 Amperes)
-
6278000343 Fuse 15 AmperesFuse 15 Amperes
-
7278001618 Fuse CoverFuse Cover
-
8278000998 Female TerminalFemale Terminal
-
9278000999 SealSeal
-
10278001070 Cover SealCover Seal
-
11293250063 GasketGasket
-
12278001924 Electronic ModuleElectronic Module
-
13278001974 FoamFoam
-
14207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
15234062600 Flat Washer 6 mmFlat Washer 6 mm
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17278001949 Box Support Ass'yBox Support Ass'y
-
18211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
19293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
20211200043 Lock WasherLock Washer
-
21278001259 InsulatorInsulator
-
22234062600 Flat Washer 6 mmFlat Washer 6 mm
-
23207363060 Hex Screw (Scotch Grip) M6 X 30Hex Screw (Scotch Grip) M6 X 30
-
24272000074 SpacerSpacer
-
25278001260 Upper InsulatorUpper Insulator
-
26271000897 Bilge SupportBilge Support
-
27278002020 Bilge PumpBilge Pump
-
28293150059 Pop Rivet 5/32''Pop Rivet 5/32''
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30293650172 Tridon ClampTridon Clamp
-
31291001206 Bilgeflex Hose (Meter)Bilgeflex Hose (Meter)
-
32291002035 Shoe Ride CapShoe Ride Cap
-
33250000020 Oval Head Phillips Countersunk Screw M5 X 10Oval Head Phillips Countersunk Screw M5 X 10
-
34278001903 Multi-fonction IndicatorMulti-fonction Indicator
-
35278001901 Steering Harness Ass'y. Includes 35 to 45Steering Harness Ass'y. Includes 35 to 45
-
36278000631 Male TerminalMale Terminal
-
37278000632 Female TerminalFemale Terminal
-
38278000635 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
39278000736 Male Connector (6 Circuits)Male Connector (6 Circuits)
-
40278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
41278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
42278001586 BuzzerBuzzer
-
43278001944 Safety SwitchSafety Switch
-
44278002029 Otas SwitchOtas Switch
-
45278001933 Switch Start / Stop Ass'ySwitch Start / Stop Ass'y
-
46278000508 Safety Switch NutSafety Switch Nut
-
47293750009 Tie Rap 160 mmTie Rap 160 mm
-
48293750009 Tie Rap 160 mmTie Rap 160 mm
-
49414805101 Plastic NutPlastic Nut
-
50278001543 Safety LanyardSafety Lanyard
