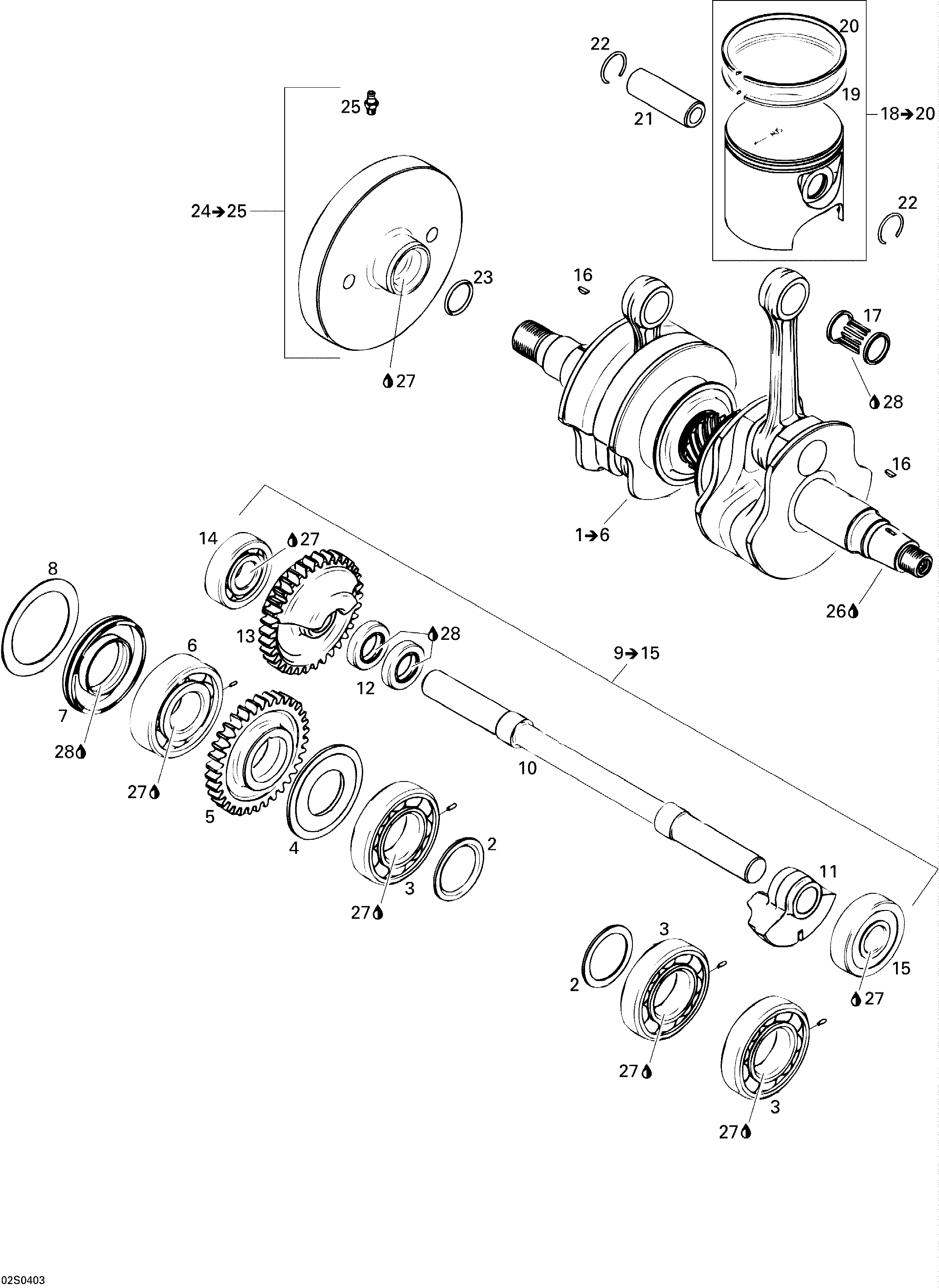

01- Crankshaft, Pistons And Balance Shaft для BRP GTI RFI - 2004
-
№АртикулНазвание
-
1420887891 Crankshaft 787 Ass'Y. Includes 1 to 6Crankshaft 787 Ass'Y. Includes 1 to 6
-
2420827760 Distance RingDistance Ring
-
3420832573 Ball Bearing Ass'YBall Bearing Ass'Y
-
4420926140 Labyrinth WasherLabyrinth Washer
-
5420834315 Gear 43 TeethGear 43 Teeth
-
6420932579 Ball BearingBall Bearing
-
7420830638 Oil SealOil Seal
-
8420926060 Retaining ShimRetaining Shim
-
9420837406 Balance Shaft Ass'Y. Includes 9 to 15Balance Shaft Ass'Y. Includes 9 to 15
-
10420837400 Balanced Shaft 787Balanced Shaft 787
-
11420818800 Balanced MassBalanced Mass
-
12420930390 Oil SealOil Seal
-
13420834305 Balanced Gear (43 Teeth)Balanced Gear (43 Teeth)
-
14420932095 Ball BearingBall Bearing
-
15420932098 Ball BearingBall Bearing
-
16420246055 Woodruff KeyWoodruff Key
-
17420832421 Needle BearingNeedle Bearing
-
18420888410 Piston With 2 Rings, 81.91 mm. Includes 18 to 20Piston With 2 Rings, 81.91 mm. Includes 18 to 20
-
18420888411 Piston Oversize, 2 Rings, 82.16 mm. Includes 18 to 20Piston Oversize, 2 Rings, 82.16 mm. Includes 18 to 20
-
19420815080 Rectangular Ring 82.00 mmRectangular Ring 82.00 mm
-
19420815081 Rectangular Ring 82.25 mmRectangular Ring 82.25 mm
-
20420815100 Semi-Trapez Ring 82.00 mmSemi-Trapez Ring 82.00 mm
-
20420815101 Semi-Trapez Ring 82.25 mmSemi-Trapez Ring 82.25 mm
-
21420916404 Piston PinPiston Pin
-
22420845100 CirclipCirclip
-
23420430782 O-RingO-Ring
-
24420958142 Flywheel Clutch (Black). Includes 24 to 25Flywheel Clutch (Black). Includes 24 to 25
-
25420499113 Grease FittingGrease Fitting
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
28413707000 Molykote 111Molykote 111
