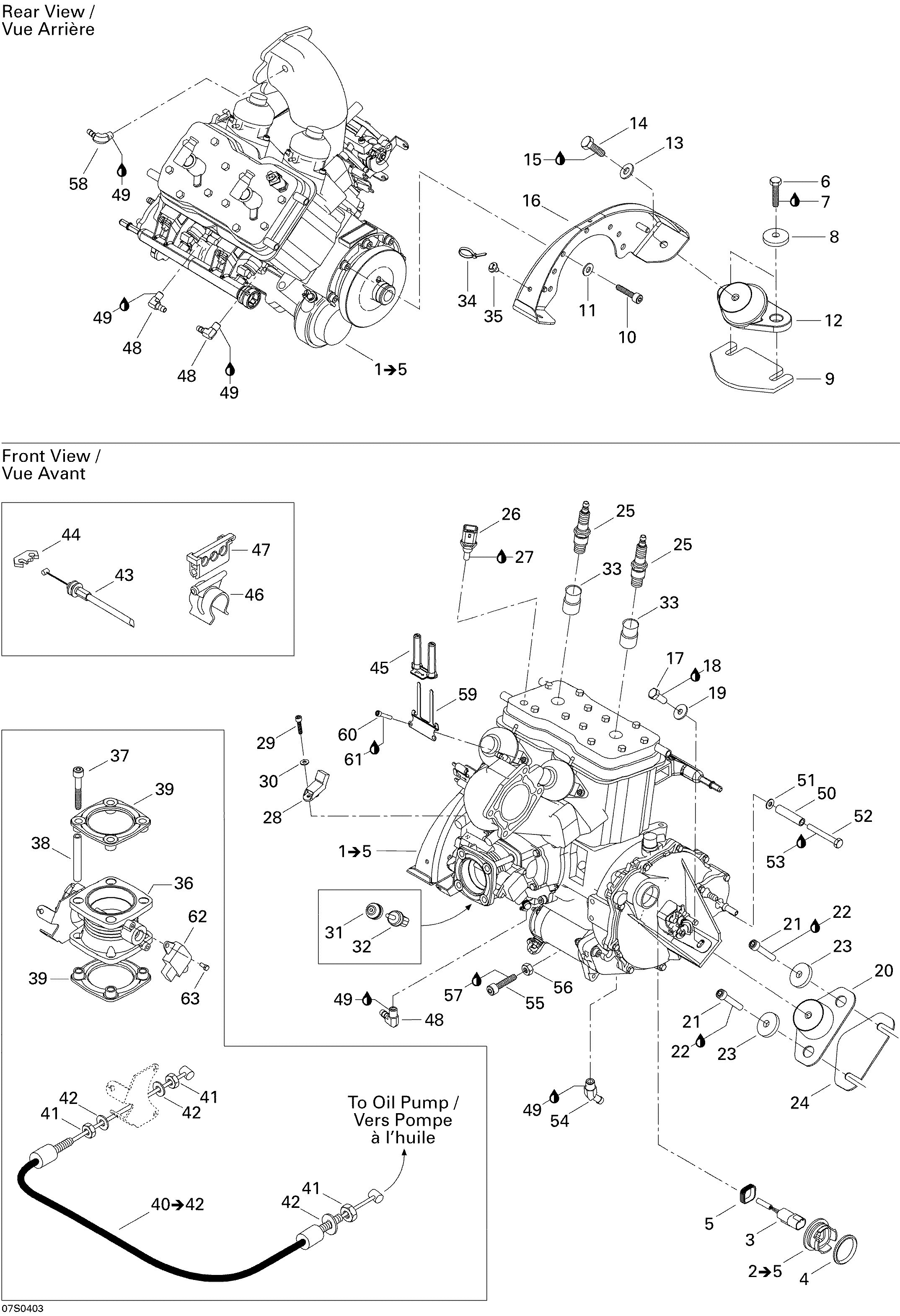

01- Engine для BRP GTI RFI - 2004
-
№АртикулНазвание
-
1270000599 Rotax Engine 787 Sdi. Includes 1 to 5Rotax Engine 787 Sdi. Includes 1 to 5
-
2270000243 Adaptor Ass'Y. Includes 2 to 5Adaptor Ass'Y. Includes 2 to 5
-
3278000635 Female Connector (4 Circuits)Female Connector (4 Circuits)
-
4293300033 GasketGasket
-
5293200042 GasketGasket
-
6205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
7293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
8250200018 Conical WasherConical Washer
-
9270000445 Shim 0.3 mmShim 0.3 mm
-
9270000446 Shim 1.3 mmShim 1.3 mm
-
10205582560 Socket Head Screw M8 X 25 (Scotch Grip)Socket Head Screw M8 X 25 (Scotch Grip)
-
11234081600 Flat Washer 8 mmFlat Washer 8 mm
-
12270000612 Rubber Mount (Black)Rubber Mount (Black)
-
13234082600 Flat Washer 8 mmFlat Washer 8 mm
-
14207181660 Hex Screw M8 X 16Hex Screw M8 X 16
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16270000584 Engine SupportEngine Support
-
17207182060 Hex Screw M8 X 20Hex Screw M8 X 20
-
18293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
19234082600 Flat Washer 8 mmFlat Washer 8 mm
-
20270000588 Rubber MountRubber Mount
-
21205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23250200018 Conical WasherConical Washer
-
24270000445 Shim 0.3 mmShim 0.3 mm
-
24270000446 Shim 1.3 mmShim 1.3 mm
-
25278000609 Spark Plug (NGK Br8-Es)Spark Plug (NGK Br8-Es)
-
26278001016 Temperature SensorTemperature Sensor
-
27293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
28270600040 Pressure SensorPressure Sensor
-
29205561260 Socket Head Screw M6 X 12 (Scotch Grip)Socket Head Screw M6 X 12 (Scotch Grip)
-
30234061600 Flat Washer 6 mmFlat Washer 6 mm
-
31278001054 InsulatorInsulator
-
32270600000 Air Temperature SensorAir Temperature Sensor
-
33278001380 Protector CapProtector Cap
-
34414115200 Tie Rap 180 mmTie Rap 180 mm
-
35293730018 Mount DartMount Dart
-
36270600092 Throttle BodyThrottle Body
-
37205569060 Socket Head Screw M6 X 90 (Scotch Grip)Socket Head Screw M6 X 90 (Scotch Grip)
-
38275500352 Spacer TubeSpacer Tube
-
39293250071 GasketGasket
-
40270000437 Injection Cable Ass'Y. Includes 40 to 42Injection Cable Ass'Y. Includes 40 to 42
-
41232160600 Hex Jam Nut M6Hex Jam Nut M6
-
42234061600 Flat Washer 6 mmFlat Washer 6 mm
-
43277000847 Throttle CableThrottle Cable
-
44277000279 Lock TabLock Tab
-
45278001512 InsolatorInsolator
-
46278001597 Wire SupportWire Support
-
47278000559 Collar SupportCollar Support
-
48293700016 Elbow Fitting 90°Elbow Fitting 90°
-
49293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
50275500640 Spacer TubeSpacer Tube
-
51234061600 Flat Washer 6 mmFlat Washer 6 mm
-
52207066060 Hex Screw M6 X 60Hex Screw M6 X 60
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
54293700036 Elbow Fitting 45°Elbow Fitting 45°
-
55205003060 Socket Head Screw M10 X 30Socket Head Screw M10 X 30
-
56232001600 Hex Nut M10Hex Nut M10
-
57293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
58293710018 Elbow Fitting 90°Elbow Fitting 90°
-
59278001662 Ground PlateGround Plate
-
60205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
61293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
62270000251 Position SensorPosition Sensor
