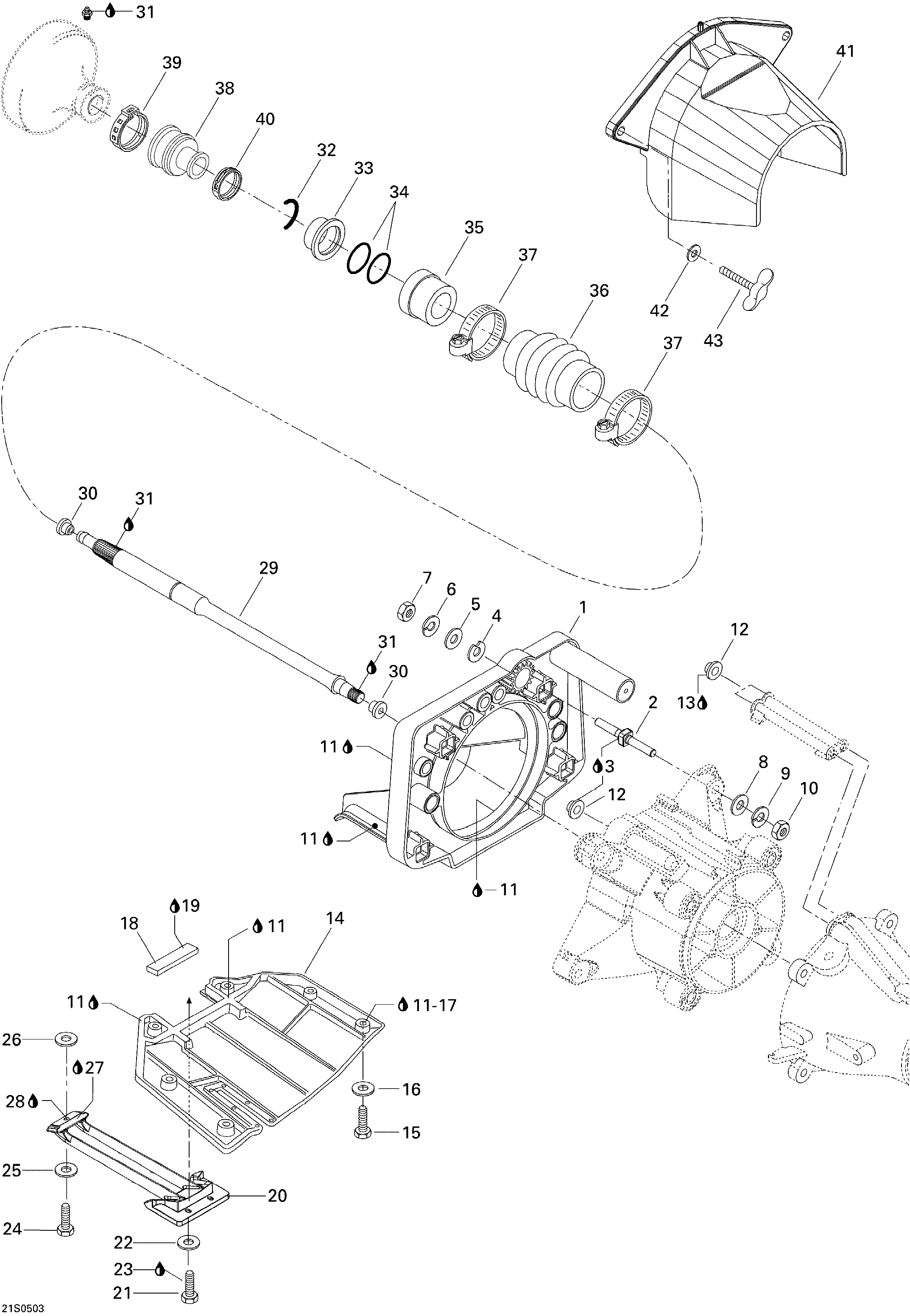

05- Propulsion LE для BRP GTI LE RFI - 2005
-
№АртикулНазвание
-
1271001151 Pump Support. LEPump Support. LE
-
2250300018 Square StudSquare Stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 ShimShim
-
5234002600 Flat Washer 10 mmFlat Washer 10 mm
-
6234101601 Lock Washer 10 mm, StainlessLock Washer 10 mm, Stainless
-
7232001600 Hex Nut M10Hex Nut M10
-
8234002600 Flat Washer 10 mmFlat Washer 10 mm
-
9234101601 Lock Washer 10 mm, StainlessLock Washer 10 mm, Stainless
-
10232001600 Hex Nut M10Hex Nut M10
-
11293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
12293250084 Watertight SealWatertight Seal
-
13293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
14271001472 Riding Plate (Black). STDRiding Plate (Black). STD
-
15250000230 Hex Screw, Scotch Grip M8 X 40Hex Screw, Scotch Grip M8 X 40
-
16234081600 Flat Washer 8 mmFlat Washer 8 mm
-
17296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
18293200003 GasketGasket
-
19293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
20271001455 Pump Grate (Black)Pump Grate (Black)
-
21207161660 Hex Screw M6 X 16Hex Screw M6 X 16
-
22234061600 Flat Washer 6 mmFlat Washer 6 mm
-
23293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
24207383060 Hex Screw M8 X 30, Scotch GripHex Screw M8 X 30, Scotch Grip
-
25234081600 Flat Washer 8 mmFlat Washer 8 mm
-
26234001600 Flat Washer 10 mmFlat Washer 10 mm
-
27293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
28296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
29272000096 Drive ShaftDrive Shaft
-
30272000019 Drive Shaft PlugDrive Shaft Plug
-
31293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
32272000135 '' C'' Clip'' C'' Clip
-
33272000064 Support RingSupport Ring
-
34293300032 O-RingO-Ring
-
35272000770 Carbon RingCarbon Ring
-
36272000184 BellowsBellows
-
37293650075 Norma ClampNorma Clamp
-
38272000001 Rubber BootRubber Boot
-
39293650021 Oetiker ClampOetiker Clamp
-
40293650067 Oetiker ClampOetiker Clamp
-
41272000094 Flywheel GuardFlywheel Guard
-
42234082600 Flat Washer 8 mmFlat Washer 8 mm
-
43232681100 Wing Nut M8Wing Nut M8
