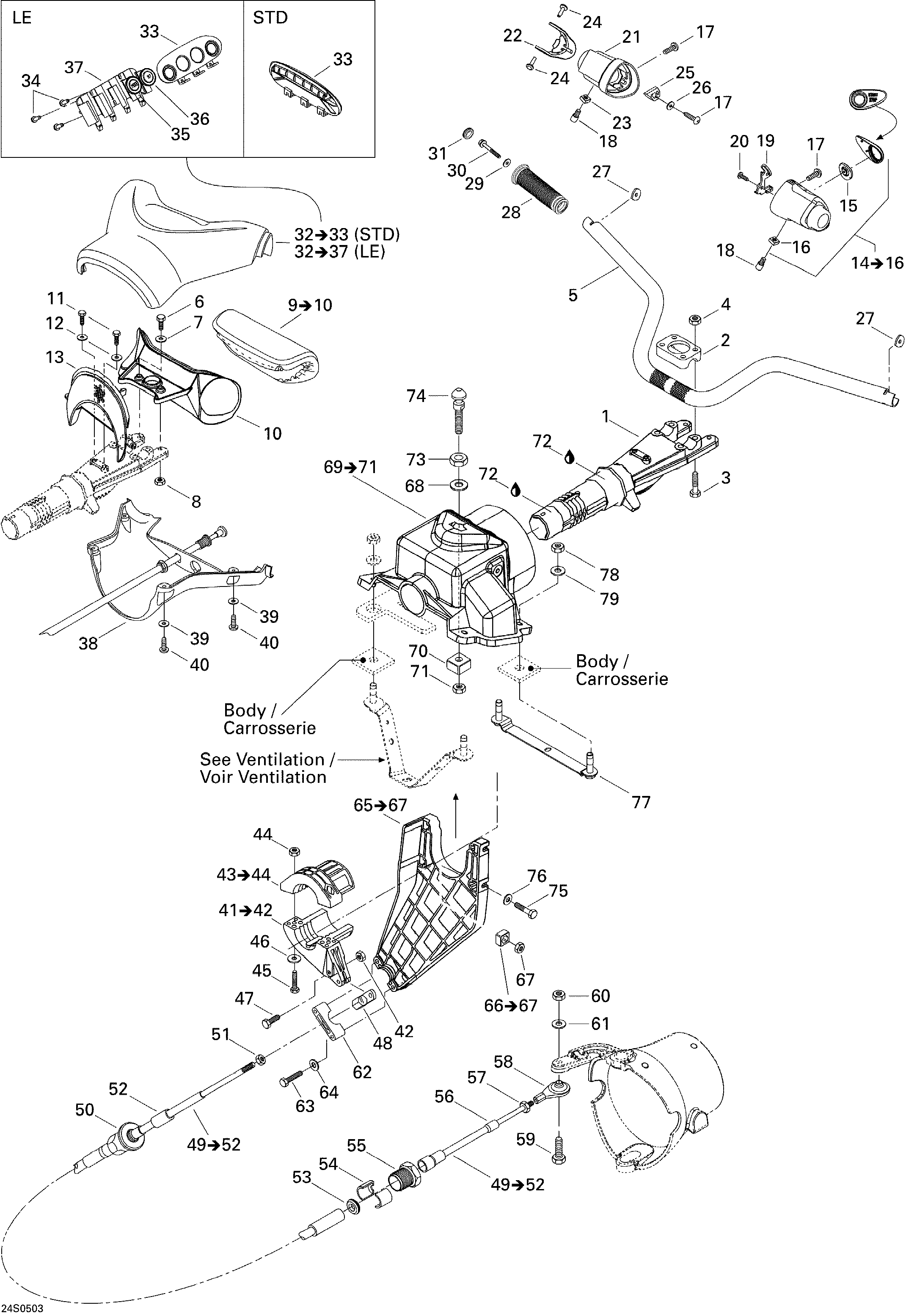

07- Steering System LE для BRP GTI LE RFI - 2005
-
№АртикулНазвание
-
1277000562400 Steering StemSteering Stem
-
2277000142 Steering ClampSteering Clamp
-
3207085060 Hex Screw M8 X 50Hex Screw M8 X 50
-
4232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
5277001450 Handle BarHandle Bar
-
6207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
7234061600 Flat Washer 6 mmFlat Washer 6 mm
-
8232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
9277001366 Handle Bar Pad, Bright Yellow. Includes 9 to 10Handle Bar Pad, Bright Yellow. Includes 9 to 10
-
10277000687 Handle Bar Pad SupportHandle Bar Pad Support
-
11211000036 Hex Flanged Screw 1/4''-20 X 1/2''Hex Flanged Screw 1/4''-20 X 1/2''
-
12234062600 Flat Washer 6 mmFlat Washer 6 mm
-
13277000549 PlatePlate
-
14277000869 LH Handle Housing Ass'Y. Includes 14 to 16LH Handle Housing Ass'Y. Includes 14 to 16
-
15277000306 Switch KnobSwitch Knob
-
16232860600 Square Nut M6Square Nut M6
-
17209630960 Phillips Screw M3.9 X 9.5Phillips Screw M3.9 X 9.5
-
18250000036 Socket Head Screw M6Socket Head Screw M6
-
19277000845 Retainer PlateRetainer Plate
-
20209631360 Phillips Screw M3.5 X 13Phillips Screw M3.5 X 13
-
21277000872 Throttle Housing Ass'YThrottle Housing Ass'Y
-
22277001107 Throttle HandleThrottle Handle
-
23232860600 Square Nut M6Square Nut M6
-
24277000381 PinPin
-
25293450153 InsertInsert
-
26234051600 Flat Washer 5 mmFlat Washer 5 mm
-
27277000554 Handle Grip InsertHandle Grip Insert
-
28277001336 Handle Grip, Slate GreyHandle Grip, Slate Grey
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30250000002 Hex Screw M6 X 30, Scotch GripHex Screw M6 X 30, Scotch Grip
-
31277000203 Grip CapGrip Cap
-
32277000753 Upper Steering Cover Ass'Y. LE, Includes 32 to 37Upper Steering Cover Ass'Y. LE, Includes 32 to 37
-
33277000688 Retainer Plate. LERetainer Plate. LE
-
34241140060 Hex Flanged Screw K40 X 10. LEHex Flanged Screw K40 X 10. LE
-
35293000099 Mode Knob. LEMode Knob. LE
-
36293000099 Mode Knob. LEMode Knob. LE
-
37277000563 Switch Support. LESwitch Support. LE
-
38277000808 Lower Steering CoverLower Steering Cover
-
39234051600 Flat Washer 5 mmFlat Washer 5 mm
-
40241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
41277000518 Steering Stem Arm. Includes 41 to 42Steering Stem Arm. Includes 41 to 42
-
42232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
43277000519 Arm Thrust. Includes 43 to 44Arm Thrust. Includes 43 to 44
-
44232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
45207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
46234062600 Flat Washer 6 mmFlat Washer 6 mm
-
47211000081 Hex Screw M6 X 30Hex Screw M6 X 30
-
48277001180 Ball JointBall Joint
-
49277001322 Steering Cable. Includes 49 to 52Steering Cable. Includes 49 to 52
-
50277000782 Ajustment KnobAjustment Knob
-
51211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
52277000441 Terminal WiperTerminal Wiper
-
53293830063 Rubber WasherRubber Washer
-
54277000783 Half-RingHalf-Ring
-
55277000784 Steering Cable LockSteering Cable Lock
-
56277000441 Terminal WiperTerminal Wiper
-
57211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
58277000775 Ball JointBall Joint
-
59207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
60232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
61234061600 Flat Washer 6 mmFlat Washer 6 mm
-
62277000162 Support ThrustSupport Thrust
-
63207065060 Hex Screw M6 X 50Hex Screw M6 X 50
-
64234061600 Flat Washer 6 mmFlat Washer 6 mm
-
65277000516 Cable Support. Includes 65 to 67Cable Support. Includes 65 to 67
-
66269500252 Nut Housing Ass'y M6. Includes 66 to 67Nut Housing Ass'y M6. Includes 66 to 67
-
67232061600 Hex Nut M6Hex Nut M6
-
68234002600 Flat Washer 10 mmFlat Washer 10 mm
-
69277000515 Steering Support. Includes 69 to 71Steering Support. Includes 69 to 71
-
70271000598 Nut Housing Ass'yNut Housing Ass'y
-
71232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
72293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
73232100600 Hex Jam Nut M10Hex Jam Nut M10
-
74291000689 Stud LatchStud Latch
-
75207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
76234061600 Flat Washer 6 mmFlat Washer 6 mm
-
77277001000 Steering SupportSteering Support
-
78232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
79234081600 Flat Washer 8 mmFlat Washer 8 mm
