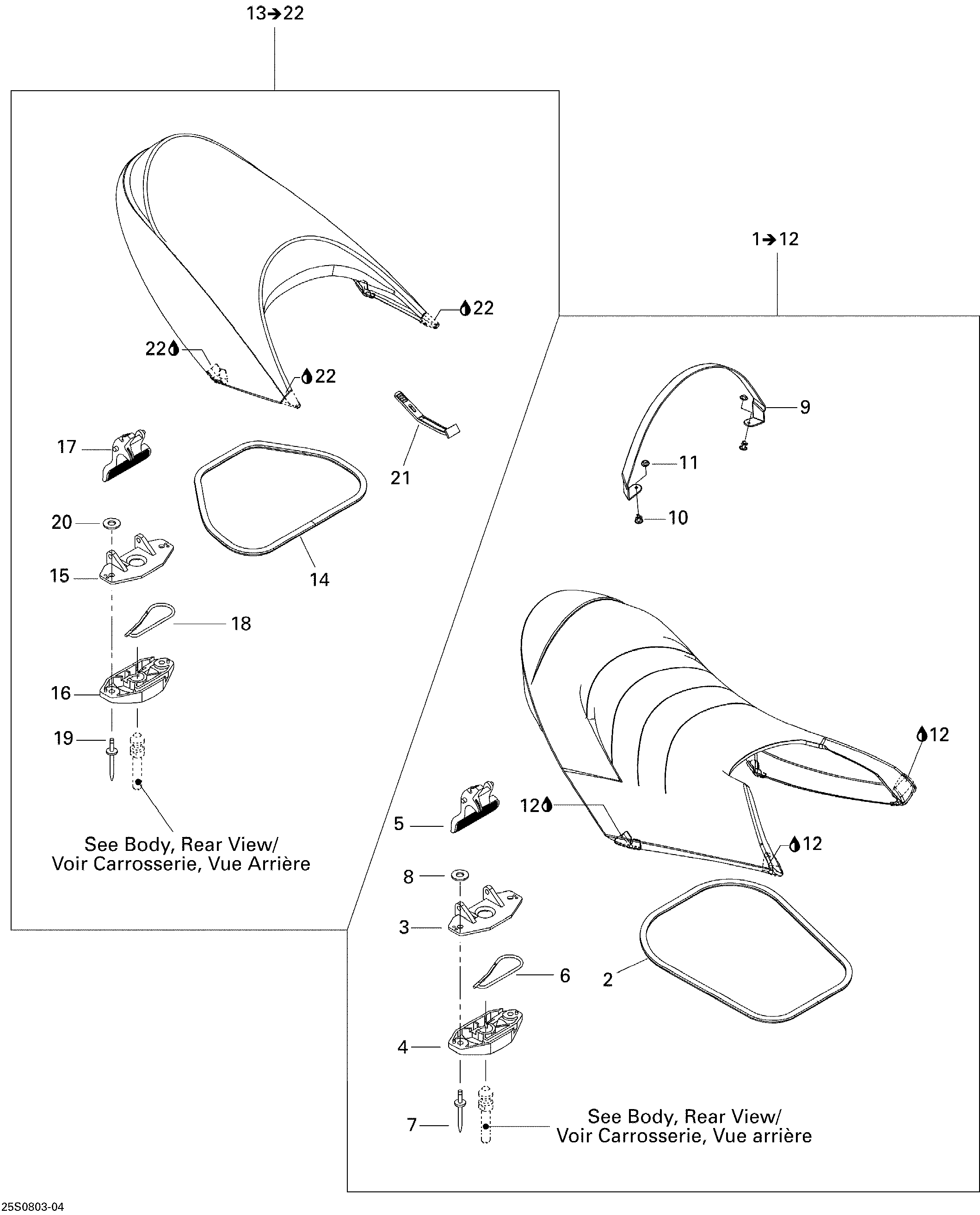

09- Seat для BRP WAKE 155 - 2008
-
№АртикулНазвание
-
1269001432 Front Seat Ass'y, Red. Includes 1 to 12Front Seat Ass'y, Red. Includes 1 to 12
-
2293200107 Seal, MeterSeal, Meter
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150151 Rivet 1/4''Rivet 1/4''
-
8234061600 Flat Washer M6Flat Washer M6
-
9269001391 Seat StrapSeat Strap
-
10293150067 RivetRivet
-
11293720067 GrommetGrommet
-
12413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
13269001434 Rear Seat Ass'y, Red. Includes 13 to 22Rear Seat Ass'y, Red. Includes 13 to 22
-
14293200107 Seal, MeterSeal, Meter
-
15269700076 Latch CoverLatch Cover
-
16269000015 Latch BaseLatch Base
-
17269700077 Latch LeverLatch Lever
-
18269700017 Latch SpringLatch Spring
-
19293150151 Rivet 1/4''Rivet 1/4''
-
20234061600 Flat Washer M6Flat Washer M6
-
21269500408 StrapStrap
-
22413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
