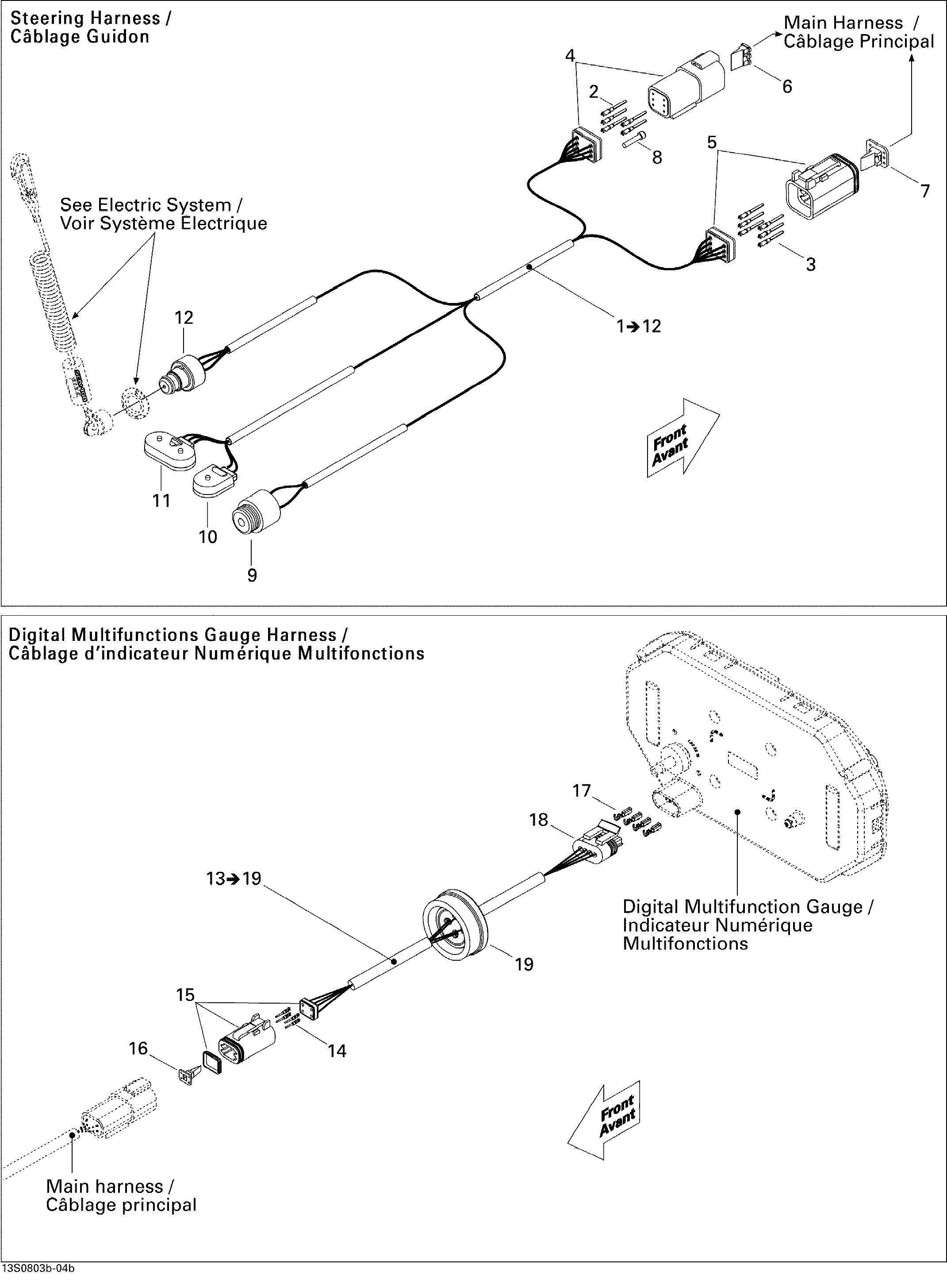

10- Electrical Harness 2 для BRP WAKE 155 - 2008
-
№АртикулНазвание
-
1278002382 Steering Harness. Includes 1 to 12Steering Harness. Includes 1 to 12
-
2278000631 Male TerminalMale Terminal
-
3278000632 Female TerminalFemale Terminal
-
4270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
5278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
6278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
7278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
8293000052 Sealing CapSealing Cap
-
9278002290 BuzzerBuzzer
-
10278001733 Start/Stop SwitchStart/Stop Switch
-
11278002156 VTS SwitchVTS Switch
-
12278002350 Safety SwitchSafety Switch
-
13278002180 Digital Multifunction Gauge Harness. Includes 13 to 19Digital Multifunction Gauge Harness. Includes 13 to 19
-
14278000632 Female TerminalFemale Terminal
-
15278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
16278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
17278001114 Female TerminalFemale Terminal
-
18278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
19293720079 Cable GrommetCable Grommet
