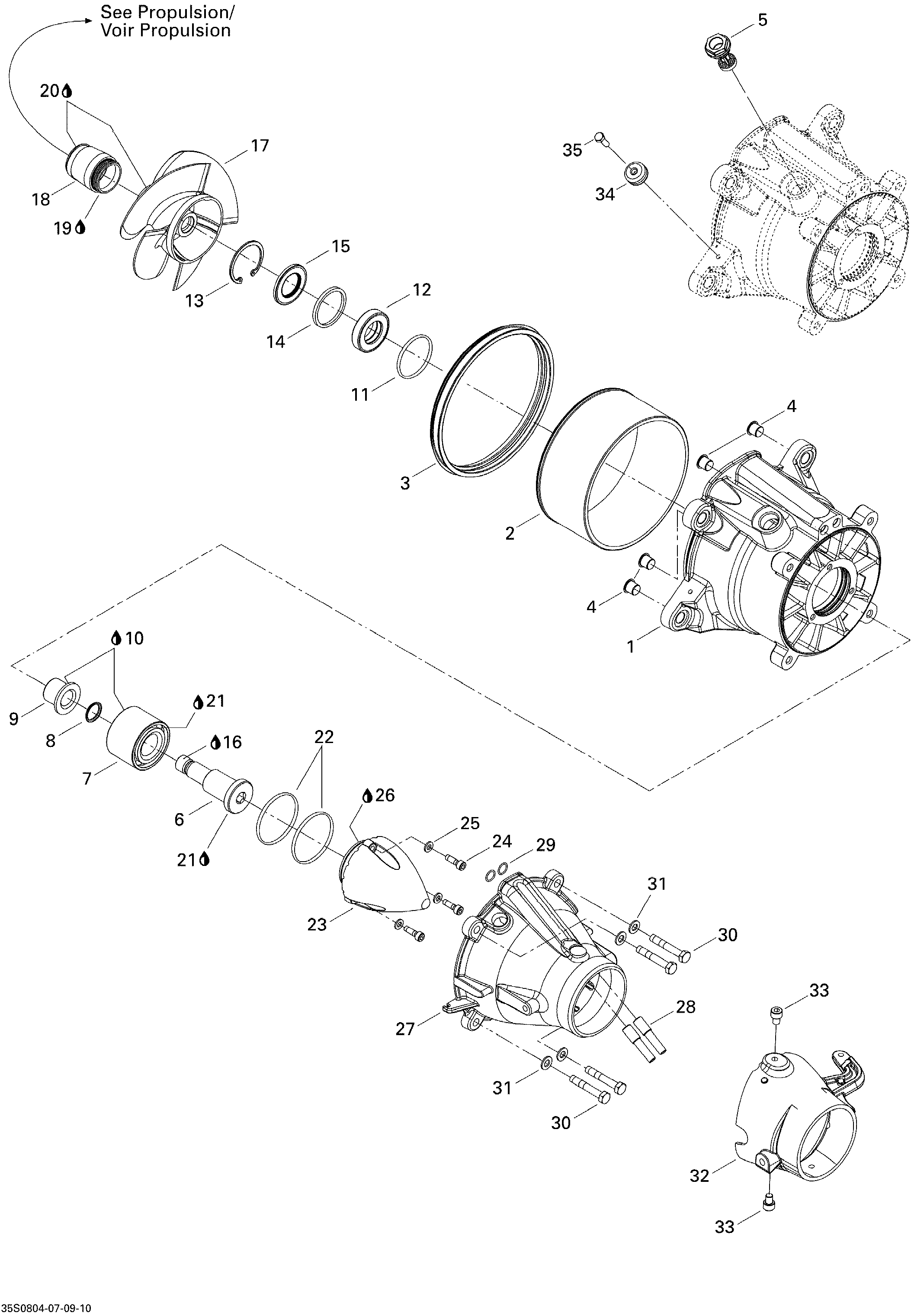

05- Pump для BRP RXP 215 - 2008
-
№АртикулНазвание
-
1267000327 Impeller HousingImpeller Housing
-
2267000372 Wear RingWear Ring
-
3293200087 Neoprene SealNeoprene Seal
-
4267000093 BushingBushing
-
5267000282 PlugPlug
-
6267000054 Impeller ShaftImpeller Shaft
-
7267000030 Angled BearingAngled Bearing
-
8505070315 O-RingO-Ring
-
9267000318 Shaft SleeveShaft Sleeve
-
10293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
11293300090 O-RingO-Ring
-
12293200086 Oil SealOil Seal
-
13293370038 CirclipCirclip
-
14271001393 SpacerSpacer
-
15293200089 Oil SealOil Seal
-
16293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
17267000283 Impeller Ass'yImpeller Ass'y
-
18267000458 Impeller Boot Ass'yImpeller Boot Ass'y
-
19293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
20293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
21293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
22293300086 O-RingO-Ring
-
23267000262 Impeller CoverImpeller Cover
-
24205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
25234061600 Flat Washer M6Flat Washer M6
-
26293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
27267000216 VenturiVenturi
-
28271001133 Siphon TubeSiphon Tube
-
29293300013 O-RingO-Ring
-
30207384060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
31234081600 Flat Washer 8 mmFlat Washer 8 mm
-
32267000302 Steering Nozzle, BlackSteering Nozzle, Black
-
33211000127 Socket Screw M8 X 10, Scotch GripSocket Screw M8 X 10, Scotch Grip
-
34271001487 Anode ZincAnode Zinc
-
35207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
