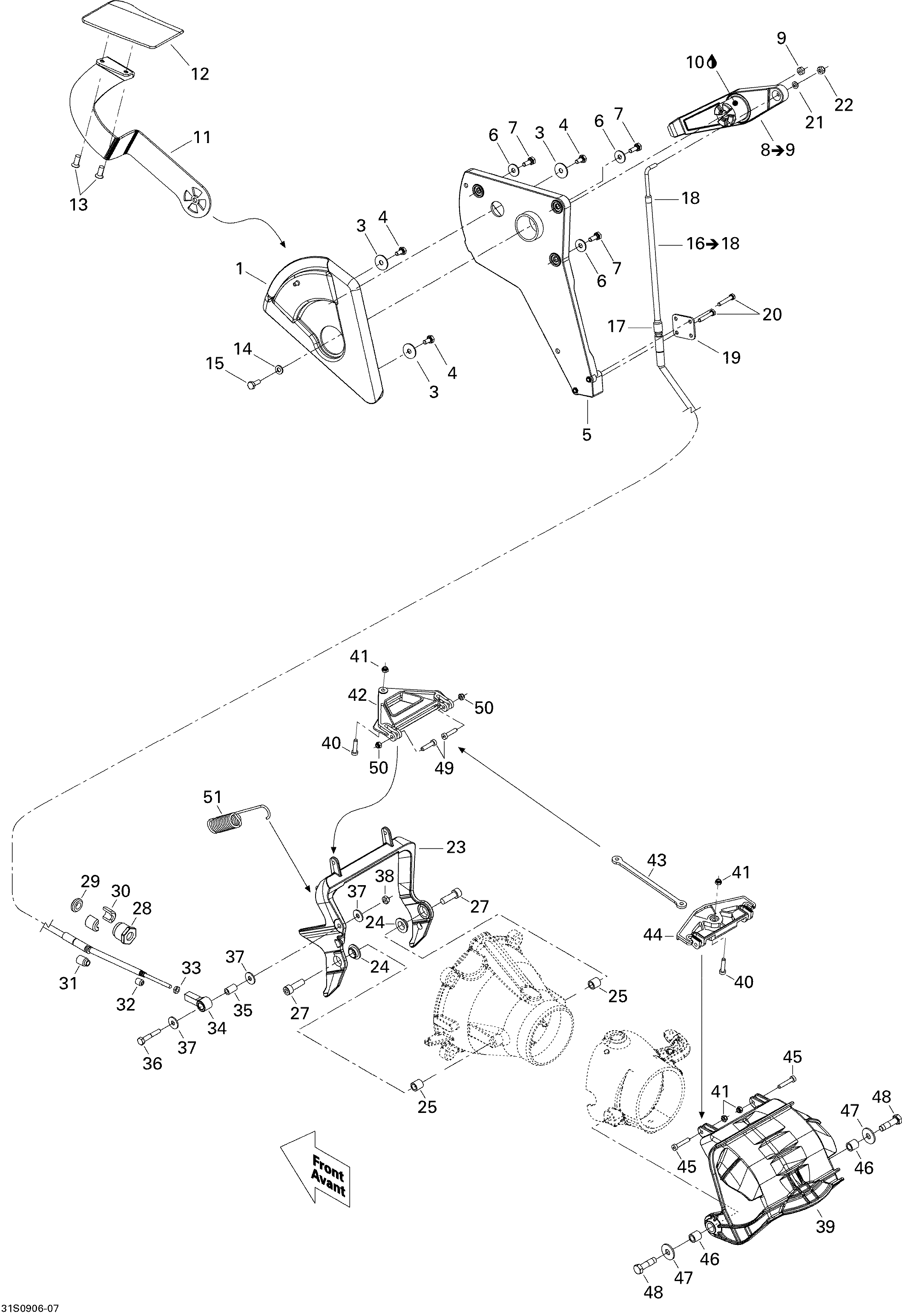

05- Reverse для BRP RXP-X 255 and 255 RS - 2009
-
№АртикулНазвание
-
1268000009 Reverse Handle HousingReverse Handle Housing
-
3250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
5268000010 Reverse Cable SupportReverse Cable Support
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
8271000986 Lever Ass.. Includes 8 to 9Lever Ass.. Includes 8 to 9
-
9232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
11271000982 Handle LeverHandle Lever
-
12268000031 Reverse HandleReverse Handle
-
13250000319 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
14234061600 Flat Washer M6Flat Washer M6
-
15207161660 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
16268000017 Reverse Cable. Includes 16 to 18Reverse Cable. Includes 16 to 18
-
17268000018 Boot, LargeBoot, Large
-
18268000019 Boot, SmallBoot, Small
-
19277001058 BracketBracket
-
20207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
21234051600 Flat Washer M5Flat Washer M5
-
22212000006 Hex. Elastic Stop NutHex. Elastic Stop Nut
-
23271001012 Arm BlackArm Black
-
24271000321 Venturi BushingVenturi Bushing
-
25271001039 SpacerSpacer
-
27250000026 Pivot Screw M8 X 25Pivot Screw M8 X 25
-
28277000784 Steering Cable LockSteering Cable Lock
-
29211100009 Rubber WasherRubber Washer
-
30277000055 Half RingHalf Ring
-
31268000018 Boot, LargeBoot, Large
-
32268000019 Boot, SmallBoot, Small
-
33212100005 Hex. NutHex. Nut
-
34277001204 JointJoint
-
35271001020 SpacerSpacer
-
36207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
37234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
38232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
39268000028 Reverse GateReverse Gate
-
40250000018 Pivot ScrewPivot Screw
-
41232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
42268000013 TriangleTriangle
-
43271001018 Connector RodConnector Rod
-
44268000014 Rod PivotRod Pivot
-
45250000023 Screw PivotScrew Pivot
-
46271001039 SpacerSpacer
-
47234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
48207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
49250000018 Pivot ScrewPivot Screw
-
50232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
51271001328 SpringSpring
