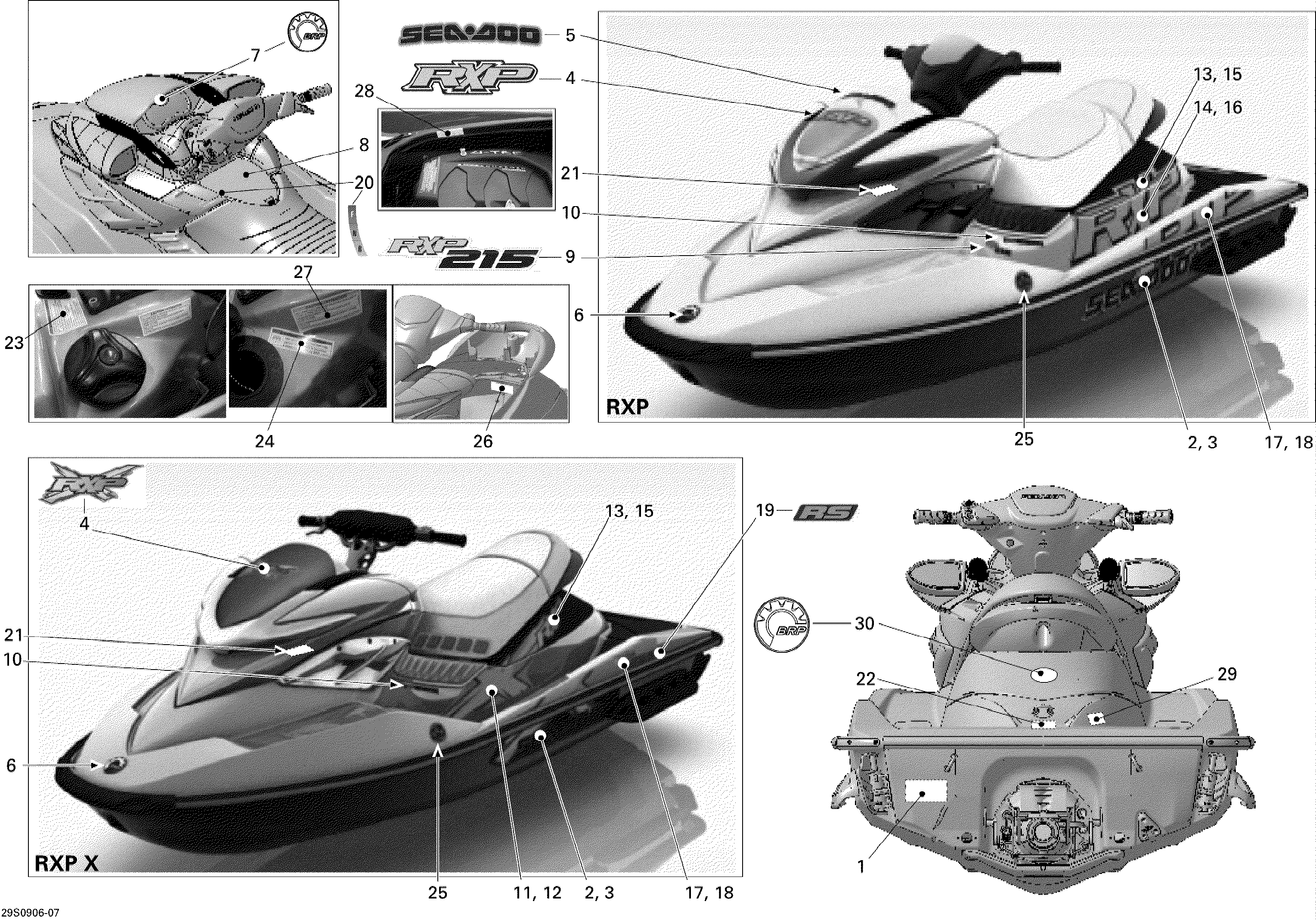

09- Decals для BRP RXP-X 255 and 255 RS - 2009
-
№АртикулНазвание
-
1219902650 Warning Label, HeatWarning Label, Heat
-
2219902896 LH Sea-Doo Hull DecalLH Sea-Doo Hull Decal
-
3219902897 RH Sea-Doo Hull DecalRH Sea-Doo Hull Decal
-
4219902887 RXP Decal DeflectorRXP Decal Deflector
-
6219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
7219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
8219902552 Warning Label - EnglishWarning Label - English
-
10219902849 ROTAX 4-TEC DecalROTAX 4-TEC Decal
-
11219902889 LH Rear Lateral DecalLH Rear Lateral Decal
-
12219902890 RH Rear Lateral DecalRH Rear Lateral Decal
-
13219903073 LH Rear DecalLH Rear Decal
-
15219903074 RH DecalRH Decal
-
17219902893 LH Rear Side DecalLH Rear Side Decal
-
18219902894 RH Rear Side DecalRH Rear Side Decal
-
19219903072 RS Decal. InternationalRS Decal. International
-
20219902827 Reverse DecalReverse Decal
-
21219902641 Warning Label, BatteryWarning Label, Battery
-
22219902654 Brp Exemption LabelBrp Exemption Label
-
23219902652 Warning Label, FuelWarning Label, Fuel
-
24219903071 Warning Label Vented Fuel CapWarning Label Vented Fuel Cap
-
25219902679 Emission LabelEmission Label
-
26219902643 Warning Label, SecurityWarning Label, Security
-
27219902653 Warning Label, FuelWarning Label, Fuel
-
28219902695 Label, MaintenanceLabel, Maintenance
-
29219902638 Comformity Label. InternationalComformity Label. International
-
30219902471 BRP LogoBRP Logo
