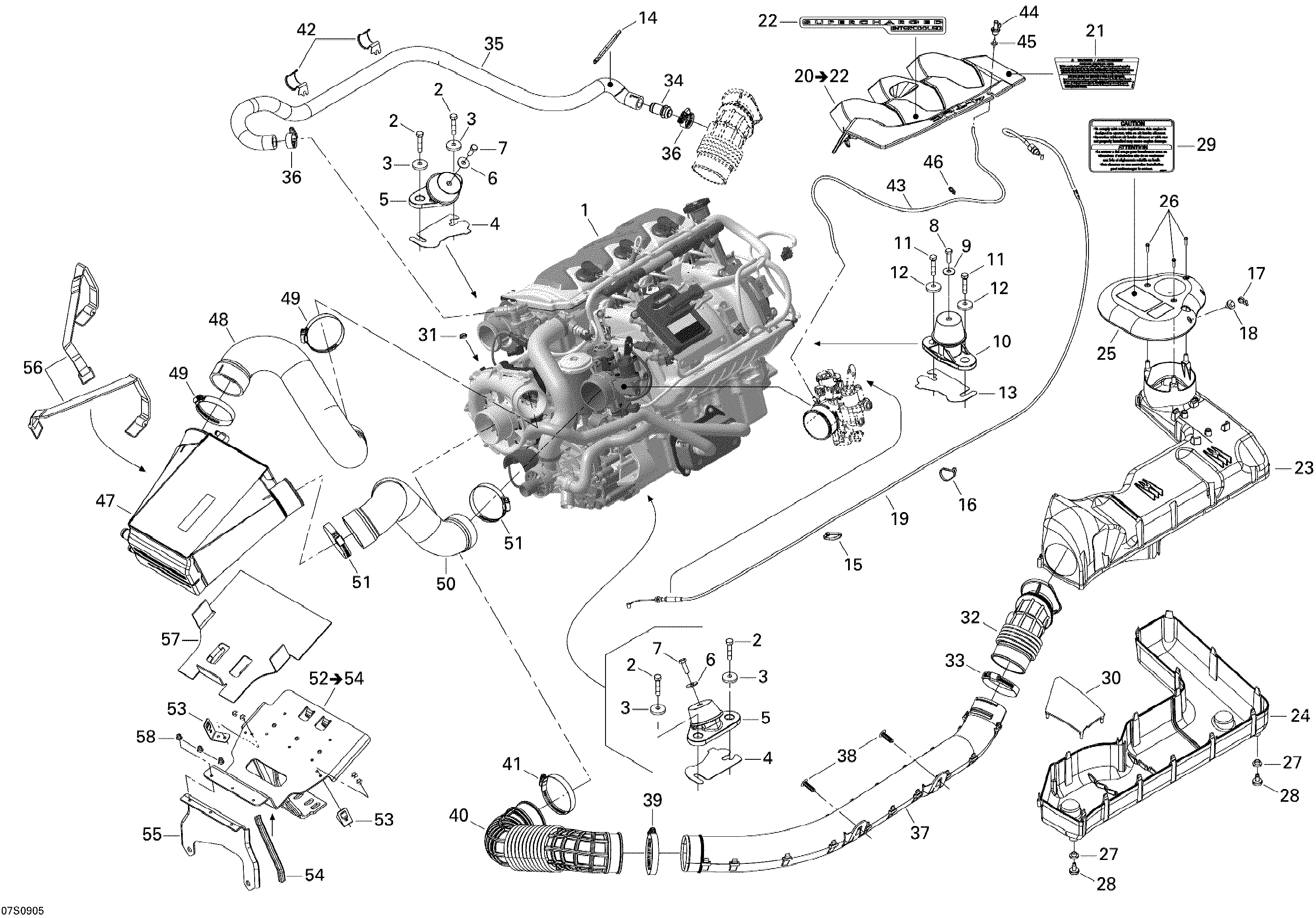

01- Engine And Air Intake Silencer для BRP RXT-X 255 and 255 RS - 2009
-
№АртикулНазвание
-
1420150355 Engine Long Block, 1503 HOEngine Long Block, 1503 HO
-
2207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000762 Shim 1.3 mmShim 1.3 mm
-
5270000688 Rubber MountRubber Mount
-
6234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10270000690 Rubber MountRubber Mount
-
11207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
12250200018 Cone WasherCone Washer
-
13270000762 Shim 1.3 mmShim 1.3 mm
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
18293730040 Mount DartMount Dart
-
19277001589 Throttle CableThrottle Cable
-
20270000727 Engine Cover Ass'y. Includes 20 to 22Engine Cover Ass'y. Includes 20 to 22
-
21219902674 Warning Decal, Engine Oil LevelWarning Decal, Engine Oil Level
-
22219902676 Identification Decal, Motor SCICIdentification Decal, Motor SCIC
-
23273000245 Air Silencer UpperAir Silencer Upper
-
24273000190 Air Silencer LowerAir Silencer Lower
-
25273000266 Air Silencer CoverAir Silencer Cover
-
26241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
27293720064 GrommetGrommet
-
28275500454 Check ValveCheck Valve
-
29219902673 Caution Decal, Air SilencerCaution Decal, Air Silencer
-
30273000206 DeflectorDeflector
-
31293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
32273000186 Intake HoseIntake Hose
-
33293650179 Tridon Gear ClampTridon Gear Clamp
-
34273000234 BreatherBreather
-
35270000629 Formed HoseFormed Hose
-
36293650051 Tridon Gear ClampTridon Gear Clamp
-
37273000233 Hose IntakeHose Intake
-
38293730006 Dart, BlackDart, Black
-
39293650179 Tridon Gear ClampTridon Gear Clamp
-
40273000188 Intake HoseIntake Hose
-
41293650179 Tridon Gear ClampTridon Gear Clamp
-
42275500664 RetainerRetainer
-
43270000469 Hose 3 mmHose 3 mm
-
44293830120 Grommet CapGrommet Cap
-
45293710107 ConnectorConnector
-
46293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
47276000179 IntercoolerIntercooler
-
48273000238 Inlet Hose CoolerInlet Hose Cooler
-
49293650107 Tridon ClampTridon Clamp
-
50273000239 Outlet Hose CoolerOutlet Hose Cooler
-
51293650107 Tridon ClampTridon Clamp
-
52270000756 Cooler Support Ass'y. Includes 52 to 54Cooler Support Ass'y. Includes 52 to 54
-
53293850075 Strap ClipStrap Clip
-
54204610371 Trim, BlackTrim, Black
-
55270000760 Rear Cooler SupportRear Cooler Support
-
56293850067 Fuel Tank StrapFuel Tank Strap
-
57293830124 Rubber PadRubber Pad
-
58293150039 Pop Rivet 3/16''Pop Rivet 3/16''
