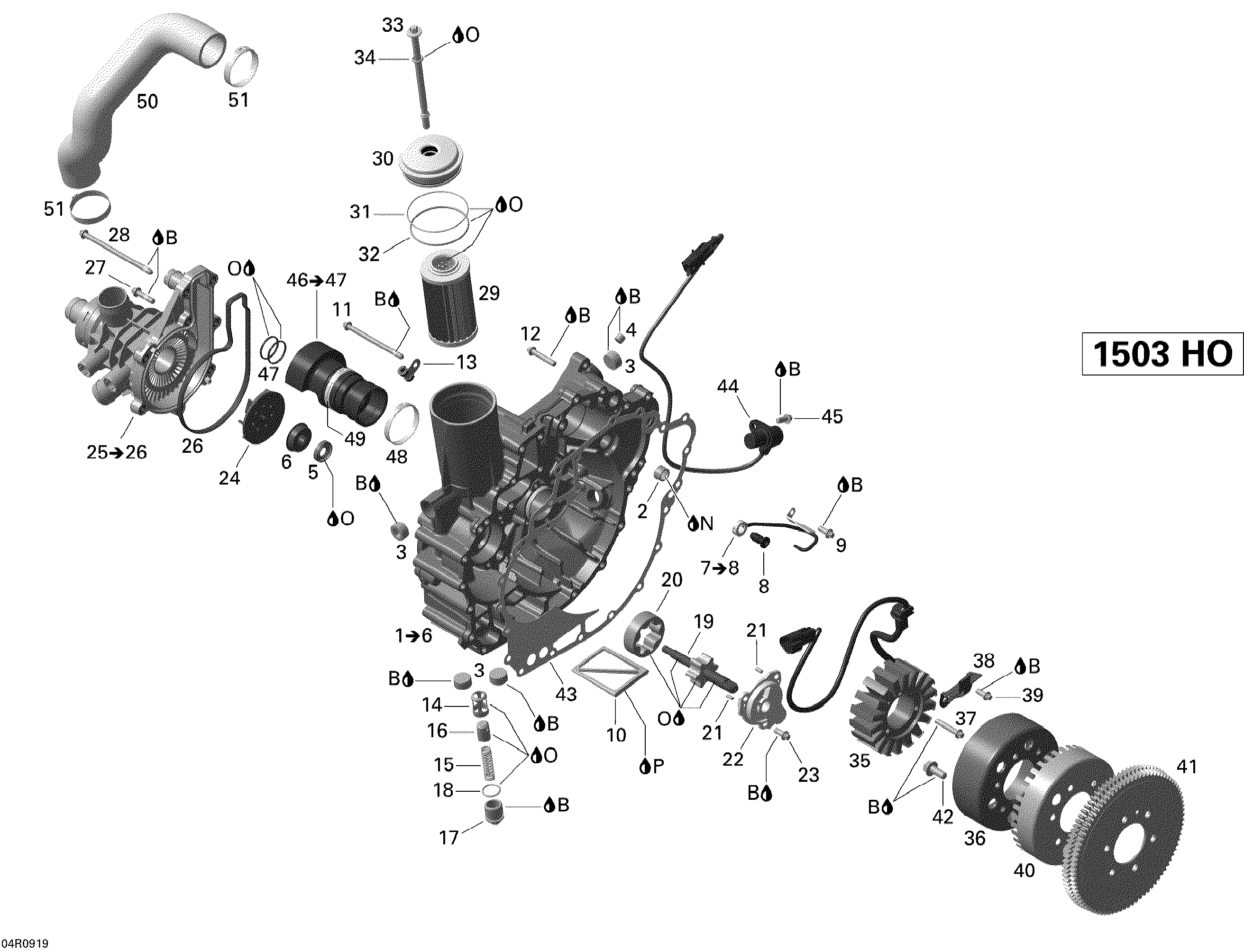

03- PTO Cover And Magneto _V1 для BRP RXT-X 255 and 255 RS - 2009
-
№АртикулНазвание
-
1420812623 Timing/Drive Cover Ass'y. Includes 1 to 6Timing/Drive Cover Ass'y. Includes 1 to 6
-
2420232480 Needle BushingNeedle Bushing
-
3420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
4420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
5420650310 Oil SealOil Seal
-
6420650370 Rotary SealRotary Seal
-
7420856875 Gicleur d'Huile. Includes 7 to 8Gicleur d'Huile. Includes 7 to 8
-
8420840180 Banjo ScrewBanjo Screw
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
10420956950 Oil SieveOil Sieve
-
11420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
12420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
13420853414 ClampClamp
-
14420256606 Valve Seat SleeveValve Seat Sleeve
-
15420939410 Compression SpringCompression Spring
-
16420256630 Piston ValvePiston Valve
-
17420641052 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
18420230890 O-RingO-Ring
-
19420837472 Pump Shaft Ass'yPump Shaft Ass'y
-
20420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
21420929070 Needle PinNeedle Pin
-
22420811590 Oil Pump CoverOil Pump Cover
-
23420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
24420922801 ImpellerImpeller
-
25420922686 Water Pump Housing Ass'y. Includes 25 to 26Water Pump Housing Ass'y. Includes 25 to 26
-
26420950840 GasketGasket
-
27420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
28420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
29420956741 Oil FilterOil Filter
-
30420610329 Oil Filter CoverOil Filter Cover
-
31420850500 O-RingO-Ring
-
32420230920 O-RingO-Ring
-
33420641105 Hex. Screw M8 X 140.5Hex. Screw M8 X 140.5
-
34420950860 O-RingO-Ring
-
35420889721 Stator PlateStator Plate
-
36420296900 Magneto FlywheelMagneto Flywheel
-
37420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
38420926300 Retaining PlateRetaining Plate
-
39420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
40420664082 Trigger WheelTrigger Wheel
-
41420834488 Starter Double GearStarter Double Gear
-
42420641016 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
43420931130 GasketGasket
-
44420966570 Crankshaft Position SensorCrankshaft Position Sensor
-
45420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
46420832753 Ball Bearing With Bellows. Includes 46 to 47Ball Bearing With Bellows. Includes 46 to 47
-
47420631610 O-RingO-Ring
-
48420851653 Gear ClampGear Clamp
-
49420853023 Gear ClampGear Clamp
-
50420922825 Formed HoseFormed Hose
-
51420851683 Gear ClampGear Clamp
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
