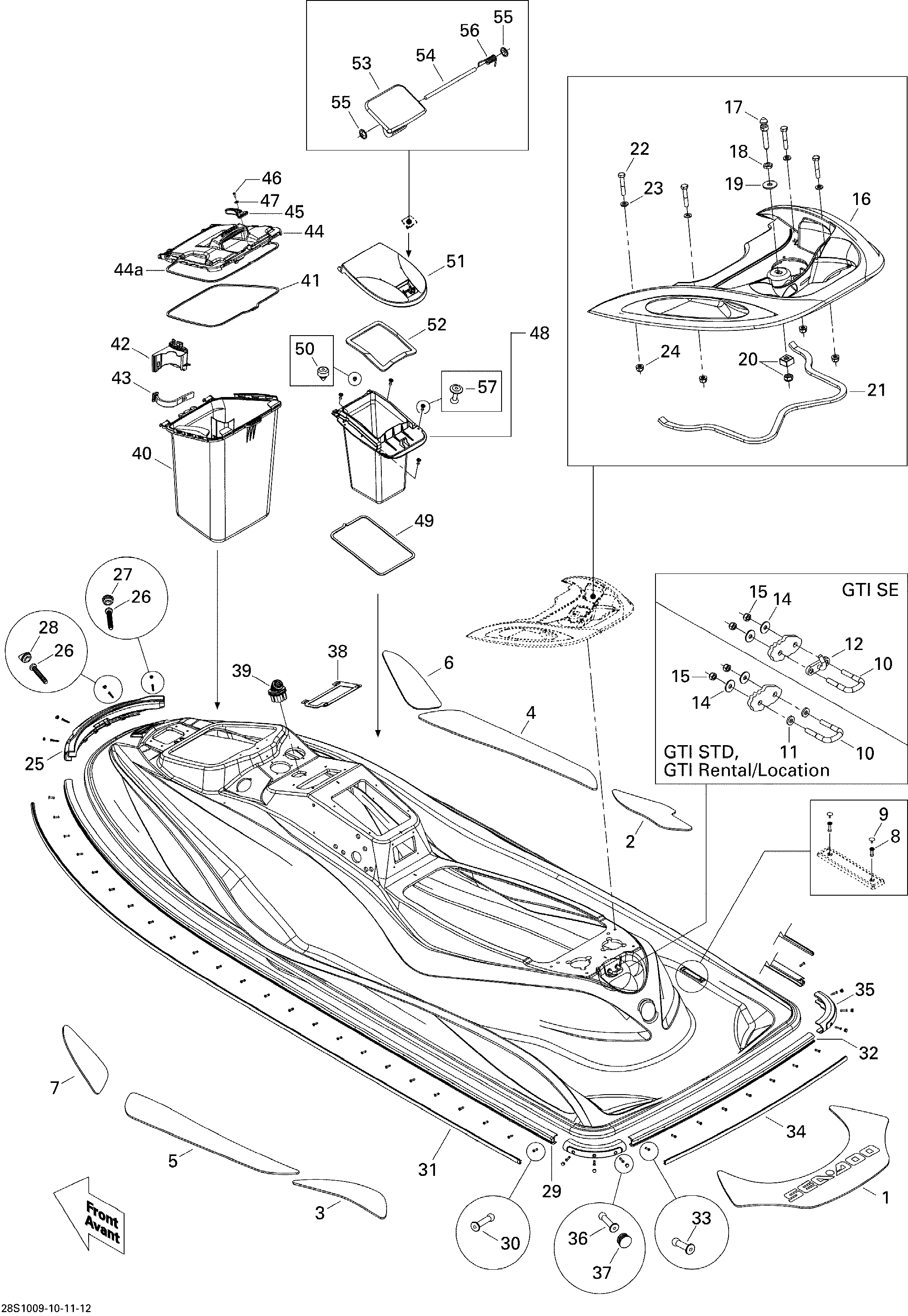

09- Body, Rear View для BRP GTI 130 and Rental - 2010
-
№АртикулНазвание
-
1291002356 Rear CarpetRear Carpet
-
2291002380 RH Center Rear CarpetRH Center Rear Carpet
-
3291002381 LH Center Rear CarpetLH Center Rear Carpet
-
4291002357 RH Center Front CarpetRH Center Front Carpet
-
5291002358 LH Center Front CarpetLH Center Front Carpet
-
6291002365 RH Front CarpetRH Front Carpet
-
7291002366 LH Front CarpetLH Front Carpet
-
8293150016 Rivet 1/8''Rivet 1/8''
-
9293000014 Snap CapSnap Cap
-
10292000933 U-ClampU-Clamp
-
11250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
16291002792 Rear Handle GrabRear Handle Grab
-
17291000945 Seat StudSeat Stud
-
18232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
19234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
20271000598 Nut Housing Ass'yNut Housing Ass'y
-
21293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
22207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
23234081600 Flat Washer 8 mmFlat Washer 8 mm
-
24232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
25291001942 Bumper Nose, BlackBumper Nose, Black
-
26250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
27291001519 Bumper Plug, BlackBumper Plug, Black
-
28291001040 Bumper Plug, BlackBumper Plug, Black
-
29204050270 Side Bumper, BlackSide Bumper, Black
-
30293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
31204050271 Side Bumper TrimSide Bumper Trim
-
32291002242 Rear Bumper, BlackRear Bumper, Black
-
33293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
34204050279 Side Bumper TrimSide Bumper Trim
-
35291002244 Bumper CornerBumper Corner
-
36293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
37291000339 Bumper PlugBumper Plug
-
38293250171 GasketGasket
-
39293720042 GrommetGrommet
-
40269501491 Storage Tray Ass'yStorage Tray Ass'y
-
41293250161 GasketGasket
-
42269501501 Extinguisher SupportExtinguisher Support
-
43269500408 StrapStrap
-
44269501643 Storage Tray CoverStorage Tray Cover
-
44a293250168 GasketGasket
-
46211000021 Pan Head Phillips Screw 10 X 7/8''Pan Head Phillips Screw 10 X 7/8''
-
47234052600 Flat Washer 5 mmFlat Washer 5 mm
-
48291002531 Glove BoxGlove Box
-
49291002251 GasketGasket
-
50293830005 Rubber Plug, BlackRubber Plug, Black
-
51291002249 Glove Box DoorGlove Box Door
-
52291002250 GasketGasket
-
53269500553 Latch, BlackLatch, Black
-
54211400008 PinPin
-
55211100002 Push NutPush Nut
-
56291000922 Latch SpringLatch Spring
-
57293150123 Pop Rivet 3/16''Pop Rivet 3/16''
