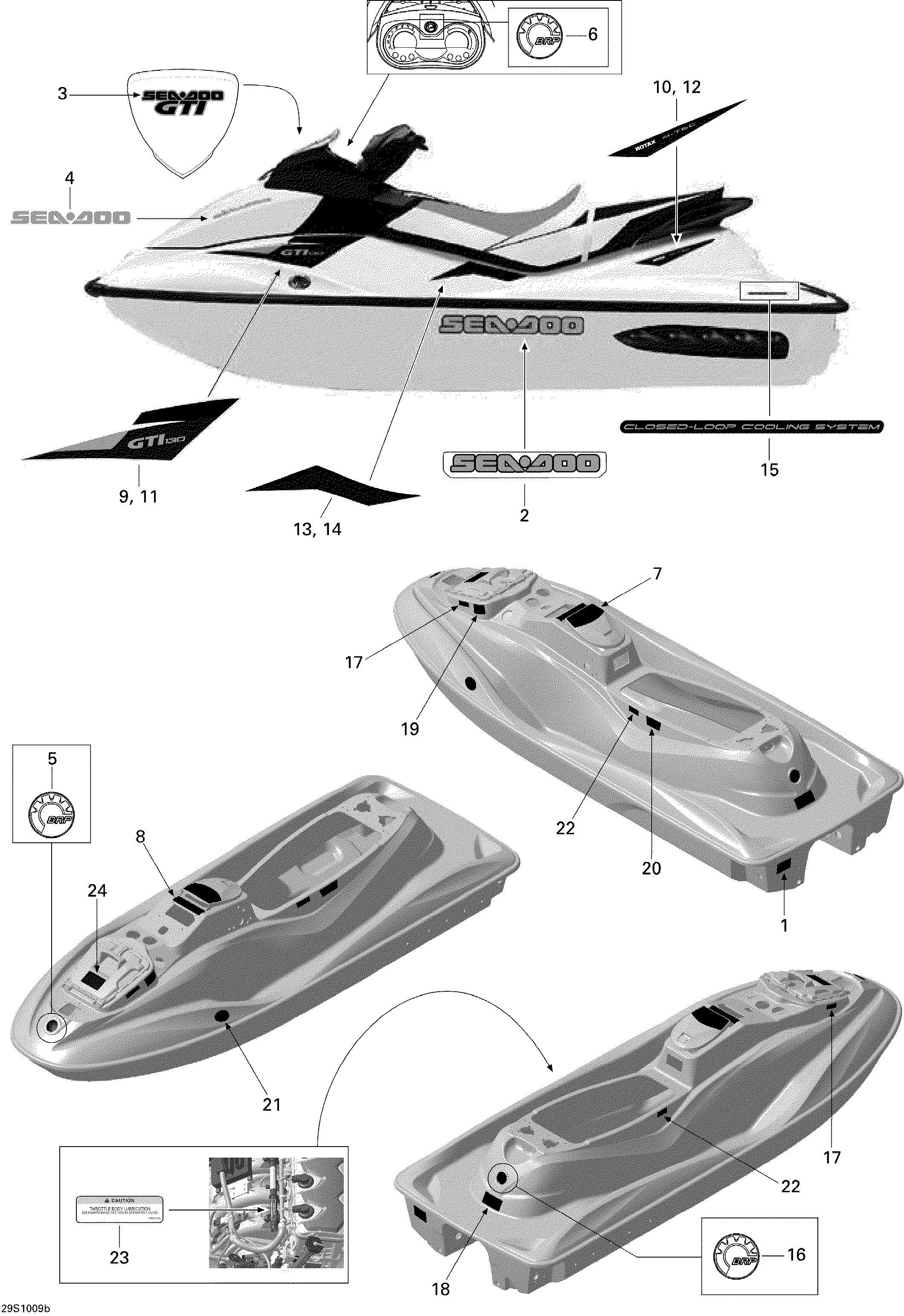

09- Decals STDR для BRP GTI 130 and Rental - 2010
-
№АртикулНазвание
-
1219903076 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
2219903103 Sea-Doo Hull DecalSea-Doo Hull Decal
-
3219903113 Decal DeflectorDecal Deflector
-
4219903114 Front Sea-Doo LogoFront Sea-Doo Logo
-
5219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
6219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
7219902979 Warning Decal, Injuries And DeathsWarning Decal, Injuries And Deaths
-
8219902684 Masking StripMasking Strip
-
9219903105 LH Front Side DecalLH Front Side Decal
-
10219903111 Decal, ROTAX 4-TECDecal, ROTAX 4-TEC
-
11219903106 RH Front Side DecalRH Front Side Decal
-
12219903112 Decal, ROTAX 4-TECDecal, ROTAX 4-TEC
-
13219903109 LH Center DecalLH Center Decal
-
14219903110 RH Center DecalRH Center Decal
-
15219903102 Decal, Closed-Loop Cooling SystemDecal, Closed-Loop Cooling System
-
16219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
17219903082 Warning Decal, BatteryWarning Decal, Battery
-
18219902656 Decal, ExemptionDecal, Exemption
-
19219903123 Warning Decal, GasolineWarning Decal, Gasoline
-
20219903135 Caution Decal, Engine Oil LevelCaution Decal, Engine Oil Level
-
21219902679 Decal, Emission ControlDecal, Emission Control
-
22219903132 Caution Decal, SecurityCaution Decal, Security
-
23219903126 Caution Decal, MaintenanceCaution Decal, Maintenance
-
24219902982 Pictogram Cover LabelPictogram Cover Label
