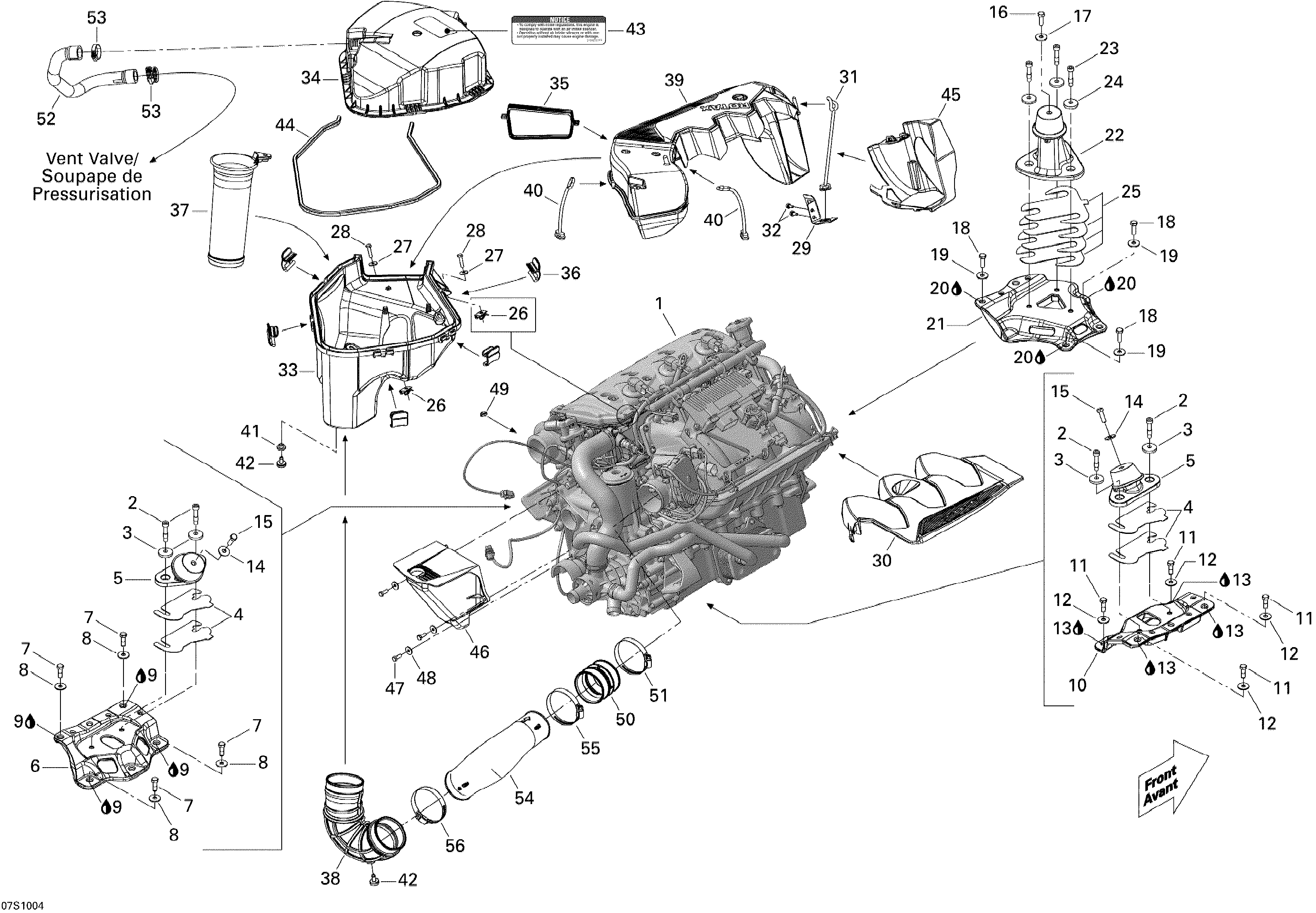

01- Engine And Air Intake Silencer для BRP GTX 155 - 2010
-
№АртикулНазвание
-
1420150318 Engine Long Block, 1503 NA ETCEngine Long Block, 1503 NA ETC
-
2250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000762 Shim 1.3 mmShim 1.3 mm
-
5270000669 Rubber MountRubber Mount
-
6270000763 SpacerSpacer
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10270000766 SpacerSpacer
-
11207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
12234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
16207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
17234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
18207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
19234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
20293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
21270000767 SpacerSpacer
-
22270000738 Rubber MountRubber Mount
-
23250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
24250200018 Cone WasherCone Washer
-
25270000770 Shim 1.3 mmShim 1.3 mm
-
26420942108 ClipClip
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
28207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
29273000260 Air Intake Tube SupportAir Intake Tube Support
-
30270000804 Engine CoverEngine Cover
-
31273000261 Rubber LatchRubber Latch
-
32207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
33273000250 Exh. Emission Component Air Intake SilencesExh. Emission Component Air Intake Silences
-
34273000249 Exh. Emission Component Air Silencer CoverExh. Emission Component Air Silencer Cover
-
35293250190 SealSeal
-
36269501718 ClipClip
-
37273000252 Air Intake Silencer BaffleAir Intake Silencer Baffle
-
38273000257 Connector HoseConnector Hose
-
39273000253 Air Intake TubeAir Intake Tube
-
40269501299 Rubber LatchRubber Latch
-
41293720064 GrommetGrommet
-
42275500454 Check ValveCheck Valve
-
43219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
44293200123 Neoprene SealNeoprene Seal
-
45273000271 DeflectorDeflector
-
46270000791 Air Box SupportAir Box Support
-
47207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
48234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
49293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
50273000277 Intake FittingIntake Fitting
-
51293650179 Tridon Gear ClampTridon Gear Clamp
-
52270000807 Formed HoseFormed Hose
-
53293650051 Tridon Gear ClampTridon Gear Clamp
-
54273000276 Intake TubeIntake Tube
-
55293650179 Tridon Gear ClampTridon Gear Clamp
-
56293650179 Tridon Gear ClampTridon Gear Clamp
