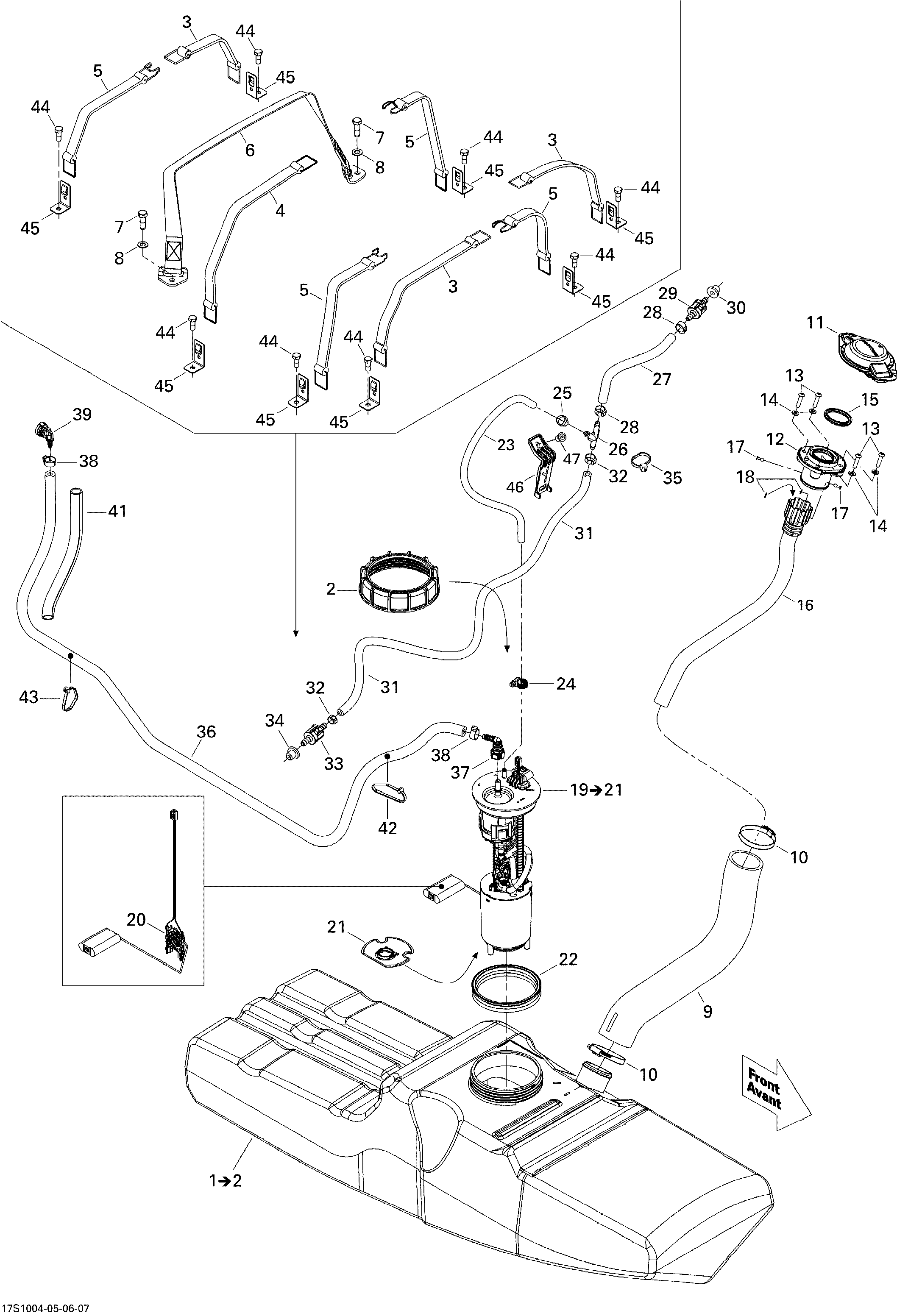

02- Fuel System для BRP GTX 155 - 2010
-
№АртикулНазвание
-
1275500720 Fuel Tank Ass'y. Includes 1 to 2Fuel Tank Ass'y. Includes 1 to 2
-
2250100062 Special Nut M130Special Nut M130
-
3293850087 Fuel Tank StrapFuel Tank Strap
-
4293850095 Fuel Tank StrapFuel Tank Strap
-
5293850094 Fuel Tank StrapFuel Tank Strap
-
6275500775 Strap Ass'yStrap Ass'y
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8234081600 Flat Washer 8 mmFlat Washer 8 mm
-
9275500778 Filler Neck HoseFiller Neck Hose
-
10293650081 Norma ClampNorma Clamp
-
11275500722 Fuel Tank CapFuel Tank Cap
-
12275500744 Filler Neck, FuelFiller Neck, Fuel
-
13250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
14234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15293300139 X-RingX-Ring
-
16275500757 Filler Neck, InteriorFiller Neck, Interior
-
17293150032 Pop Rivet 1/8''Pop Rivet 1/8''
-
18234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
19275500779 Fuel Pump Ass'y. Includes 19 to 21Fuel Pump Ass'y. Includes 19 to 21
-
20275500780 Sensor LeverSensor Lever
-
21270600108 Fuel FilterFuel Filter
-
22293250173 GasketGasket
-
23275500549 Hose 1/4''Hose 1/4''
-
24293650084 Norma ClampNorma Clamp
-
25293650025 Oetiker Gear ClampOetiker Gear Clamp
-
26293710059 Y-FittingY-Fitting
-
27204300184 Hose-1/4Hose-1/4
-
28293650025 Oetiker Gear ClampOetiker Gear Clamp
-
29275500770 Check ValveCheck Valve
-
30293720029 GrommetGrommet
-
31204300184 Hose-1/4Hose-1/4
-
32293650025 Oetiker Gear ClampOetiker Gear Clamp
-
33275500774 Check ValveCheck Valve
-
34293720029 GrommetGrommet
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36296000331 HoseHose
-
37275500700 Quick Attach 90°Quick Attach 90°
-
38293650140 Oetiker ClampOetiker Clamp
-
39293710105 Elbow Fitting 90°Elbow Fitting 90°
-
41415080000 Tubing 16 mmTubing 16 mm
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
44243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
45275500743 Strap Clip 90°Strap Clip 90°
-
46275500787 SupportSupport
-
47293150123 Pop Rivet 3/16''Pop Rivet 3/16''
