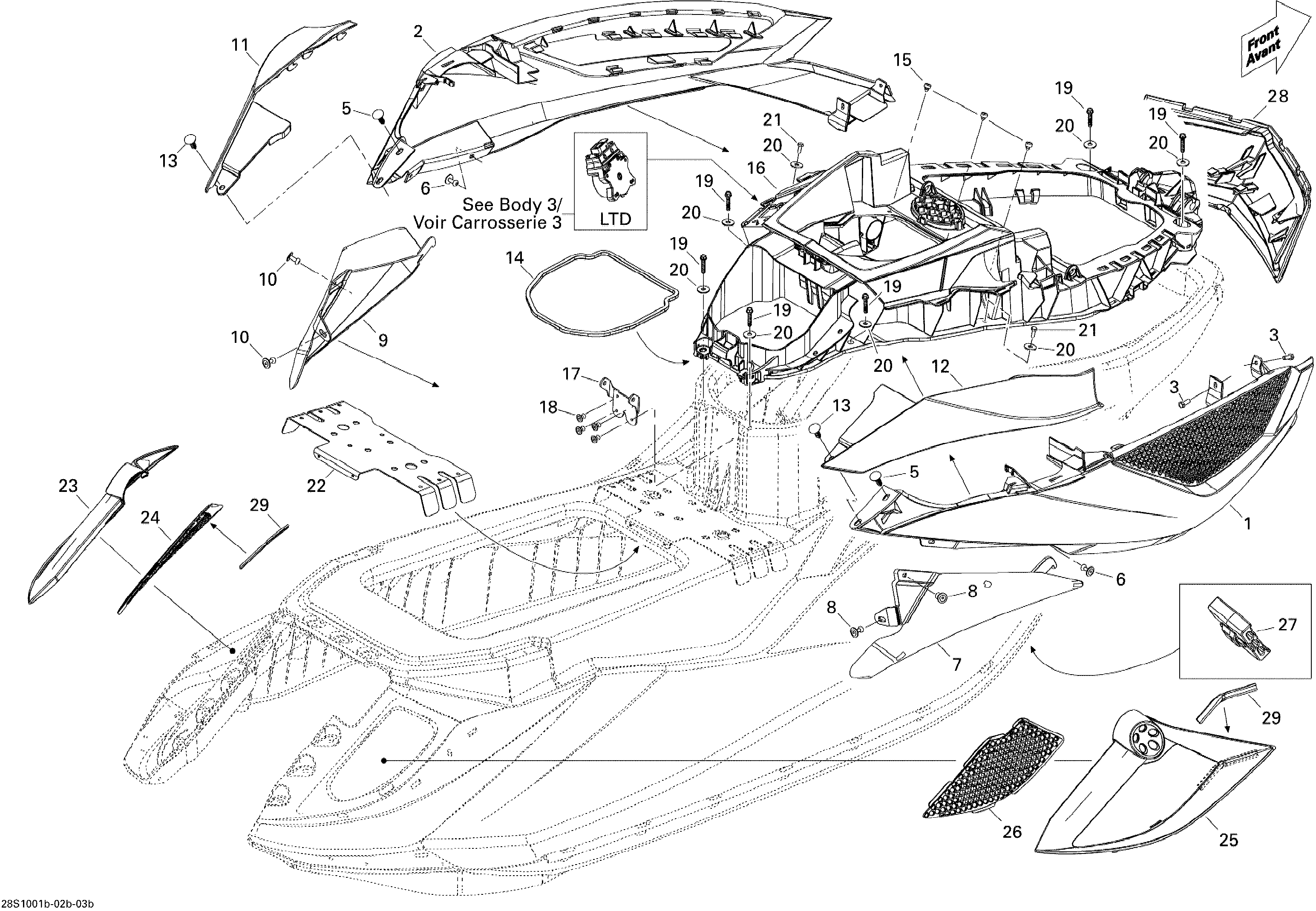

09- Body, Rear View 2 для BRP GTX iS 215 - 2010
-
№АртикулНазвание
-
1291002910 RH Front Body CoverRH Front Body Cover
-
2291002911 LH Front Body CoverLH Front Body Cover
-
3211000106 Hex. Forming Screw M6 X 16Hex. Forming Screw M6 X 16
-
5293730006 Dart, BlackDart, Black
-
6293150186 Pop Rivet 3/16Pop Rivet 3/16
-
7291002596 RH Seat Pad, BlackRH Seat Pad, Black
-
8293150186 Pop Rivet 3/16Pop Rivet 3/16
-
9291002595 LH Seat Pad, BlackLH Seat Pad, Black
-
10293150186 Pop Rivet 3/16Pop Rivet 3/16
-
11291002919 LH Upper Body Cap Cover, RedLH Upper Body Cap Cover, Red
-
12291002921 RH Upper Body Cap Cover, RedRH Upper Body Cap Cover, Red
-
13293730006 Dart, BlackDart, Black
-
14293250200 Neoprene SealNeoprene Seal
-
15293830005 Rubber Plug, BlackRubber Plug, Black
-
16291003017 Front ModuleFront Module
-
17291002865 Seat PivotSeat Pivot
-
18293150186 Pop Rivet 3/16Pop Rivet 3/16
-
19243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
20234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
22291003005 Central ReinforcementCentral Reinforcement
-
23291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
24291002740 LH Rear Side GrilleLH Rear Side Grille
-
25291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
26291002742 RH Rear Side GrilleRH Rear Side Grille
-
27293750025 Tie-Rap MountTie-Rap Mount
-
28269501797 Front GridFront Grid
-
29293250087 GasketGasket
