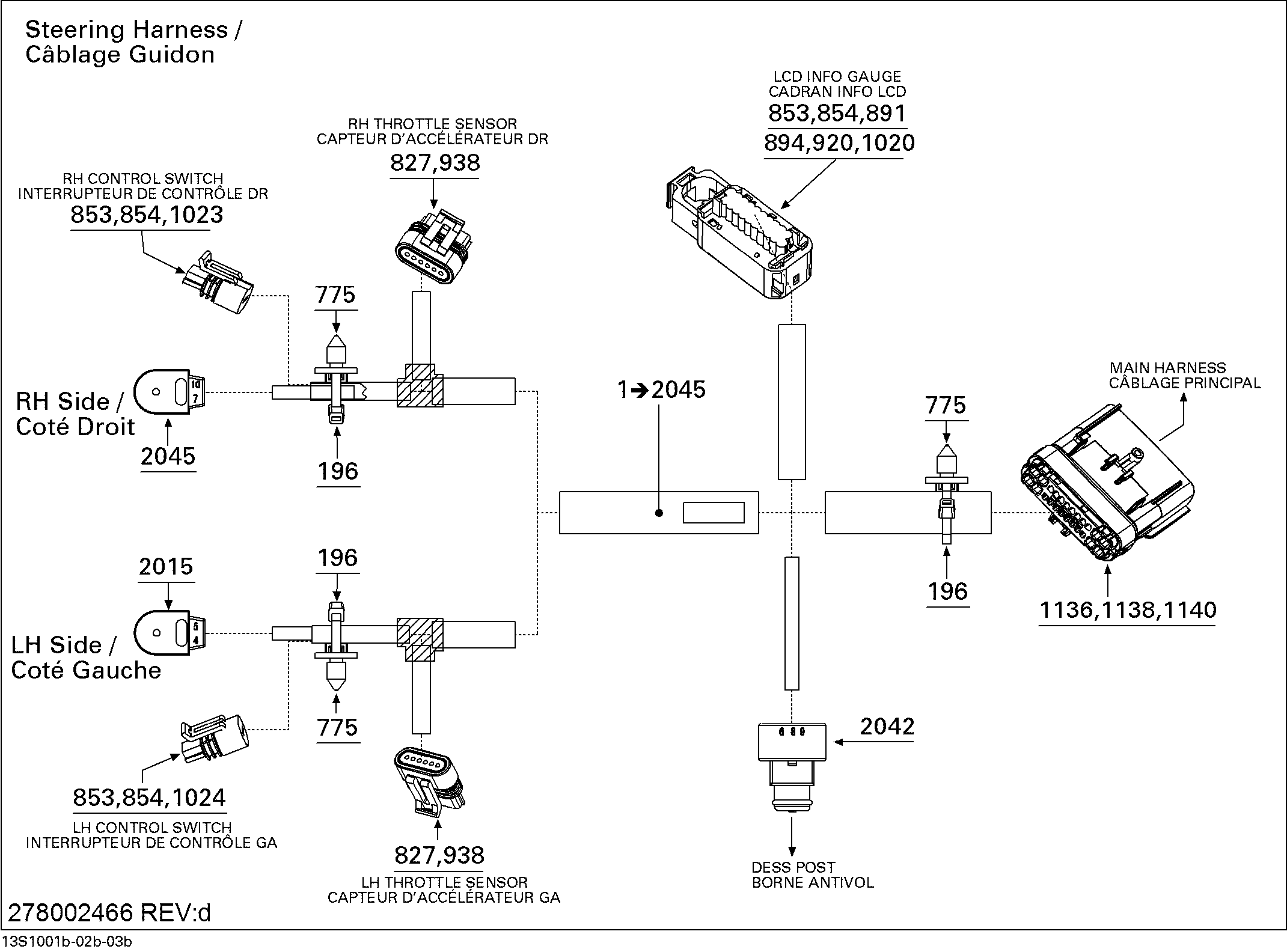

10- Electrical Harness 2, Steering для BRP GTX iS 215 - 2010
-
№АртикулНазвание
-
1278002466 Steering Harness. Includes 1 to 2045Steering Harness. Includes 1 to 2045
-
196293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
775293730018 Mount DartMount Dart
-
827710001119 Female TerminalFemale Terminal
-
853710001163 Wire SealWire Seal
-
854710001164 Female TerminalFemale Terminal
-
891710001228 TerminalTerminal
-
894710001225 CapCap
-
920710001332 Seal WireSeal Wire
-
938278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
1020278002385 Male Terminal Housing, 20 CircuitsMale Terminal Housing, 20 Circuits
-
1023278002386 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1024278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1136278002452 HousingHousing
-
1138278002454 Male TerminalMale Terminal
-
1140278002456 Male TerminalMale Terminal
-
2015295501137 Start/Stop Switch KitStart/Stop Switch Kit
-
2042278002325 Safety SwitchSafety Switch
-
2045278002349 Control SwitchControl Switch
