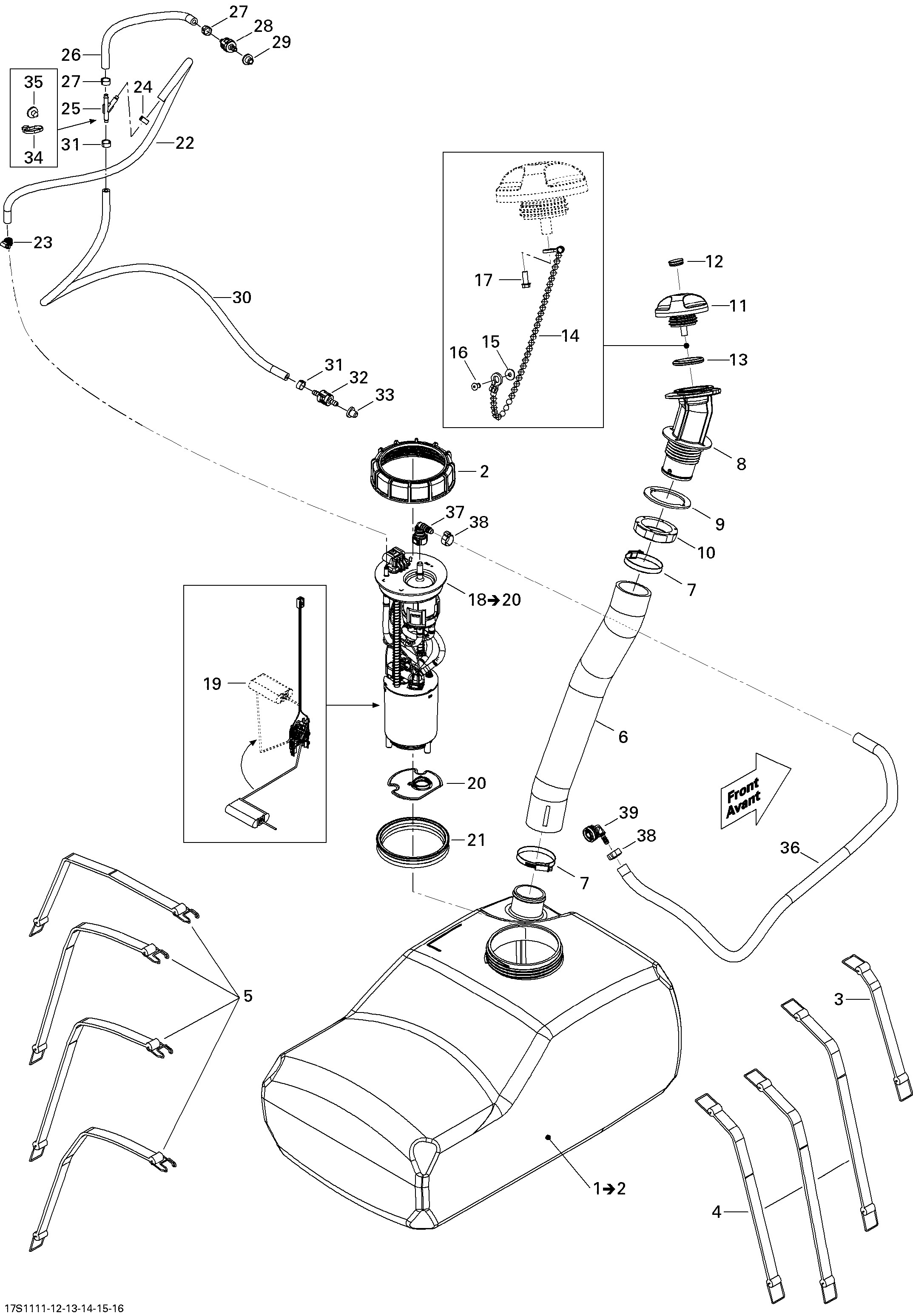

02- Fuel System для BRP GTI LTD 155 - 2011
-
№АртикулНазвание
-
1275500754 Fuel Tank Ass'y. Includes 1 to 2Fuel Tank Ass'y. Includes 1 to 2
-
2250100062 Special Nut M130Special Nut M130
-
3293850087 Fuel Tank StrapFuel Tank Strap
-
4293850093 StrapStrap
-
5293850101 Fuel Tank StrapFuel Tank Strap
-
6275500788 Filler Neck HoseFiller Neck Hose
-
7293650081 Norma ClampNorma Clamp
-
8275500803 Filler NeckFiller Neck
-
9293250029 GasketGasket
-
10211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
11275500430 Fuel Tank Cap, BlackFuel Tank Cap, Black
-
12293000034 Snap Cap, BlackSnap Cap, Black
-
13293250211 GasketGasket
-
14275500507 Fuel Cap ChainFuel Cap Chain
-
15234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
16390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
17241140060 Screw K40 X 10Screw K40 X 10
-
18275500779 Fuel Pump Ass'y. Includes 18 to 20Fuel Pump Ass'y. Includes 18 to 20
-
19275500780 Sensor LeverSensor Lever
-
20270600108 Fuel FilterFuel Filter
-
21293250173 GasketGasket
-
22275500549 Hose 1/4''Hose 1/4''
-
23293650084 Norma ClampNorma Clamp
-
24293650025 Oetiker Gear ClampOetiker Gear Clamp
-
25293710059 Y-FittingY-Fitting
-
26275500549 Hose 1/4''Hose 1/4''
-
27293650025 Oetiker Gear ClampOetiker Gear Clamp
-
28275500770 Check ValveCheck Valve
-
29293720029 GrommetGrommet
-
30204300184 Hose 1/4''Hose 1/4''
-
31293650025 Oetiker Gear ClampOetiker Gear Clamp
-
32275500774 Check ValveCheck Valve
-
33293720029 GrommetGrommet
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35293730040 Mount DartMount Dart
-
36296000331 BoyauBoyau
-
37275500700 Quick Attach 90°Quick Attach 90°
-
38293650053 Crimp ClampCrimp Clamp
-
39293710105 Elbow Fitting 90°Elbow Fitting 90°
