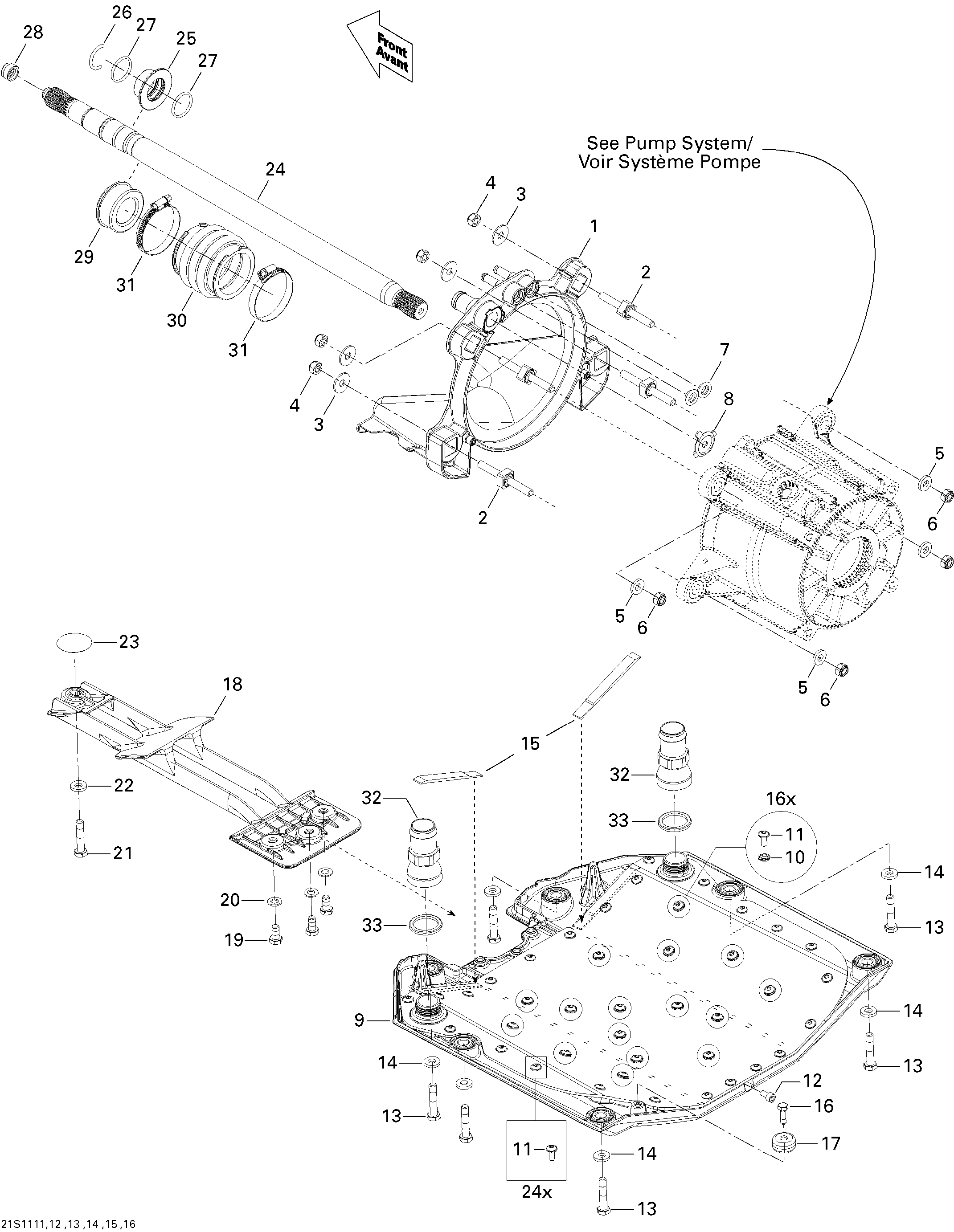

05- Propulsion для BRP GTI LTD 155 - 2011
-
№АртикулНазвание
-
1271001682 Pump SupportPump Support
-
2250300046 Square StudSquare Stud
-
3234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
4232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
5293050001 Flat WasherFlat Washer
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7293250084 Watertight SealWatertight Seal
-
8291001887 Reducer, YellowReducer, Yellow
-
9271001742 Riding PlateRiding Plate
-
10250200114 Sealing WasherSealing Washer
-
11250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
12250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
13250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
14293050001 Flat WasherFlat Washer
-
15293250087 Gasket, NeopreneGasket, Neoprene
-
16207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
17271001487 Anode ZincAnode Zinc
-
18271001763 Pump GratePump Grate
-
19207381660 Hex. Cap Screw DIN.933A2 S.GripHex. Cap Screw DIN.933A2 S.Grip
-
20234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
22293050001 Flat WasherFlat Washer
-
23293830047 Protector DiskProtector Disk
-
24271001724 Drive ShaftDrive Shaft
-
25272000176 Support RingSupport Ring
-
26271001575 C-ClipC-Clip
-
27293300044 O-RingO-Ring
-
28272000173 Drive Shaft PlugDrive Shaft Plug
-
29272000177 Carbon RingCarbon Ring
-
30272000183 BellowsBellows
-
31293650078 Norma ClampNorma Clamp
-
32293710111 Straight Plastic FittingStraight Plastic Fitting
-
33293300121 O-RingO-Ring
