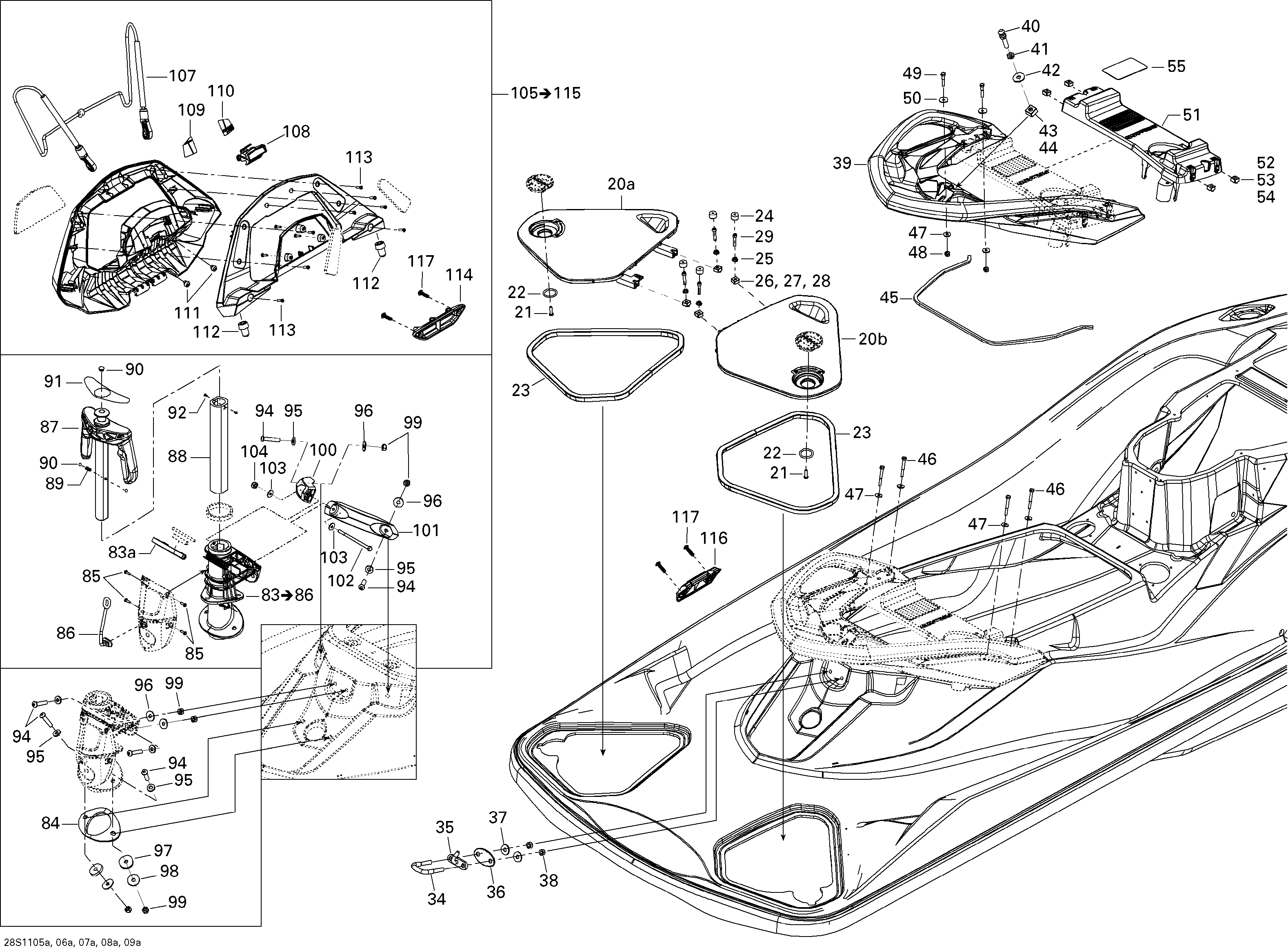

09- Body, Rear View 1 для BRP GTX 215 - 2011
-
№АртикулНазвание
-
20a291003368 LH Access Cover Ass'yLH Access Cover Ass'y
-
20b291003370 RH Access Cover Ass'yRH Access Cover Ass'y
-
21211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
22293300121 O-RingO-Ring
-
23293200133 Neoprene SealNeoprene Seal
-
24291003038 Rubber StopperRubber Stopper
-
25233161600 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26269501166 Nut Housing Ass'yNut Housing Ass'y
-
27269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
28232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
29205063060 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
34292000933 U-ClampU-Clamp
-
35291002351 HookHook
-
36291001386 Finition Plate, BlackFinition Plate, Black
-
37234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
38232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
39291004622 Black Rear HandleBlack Rear Handle
-
40291002784 Seat StudSeat Stud
-
41232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
42234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
43271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
44232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
45293250218 GasketGasket
-
46207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
47234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
49207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
50250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
51291002947 Lower Deck Ass'yLower Deck Ass'y
-
52269501166 Nut Housing Ass'yNut Housing Ass'y
-
53269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
54232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
55219903184 Caution Engine OilCaution Engine Oil
