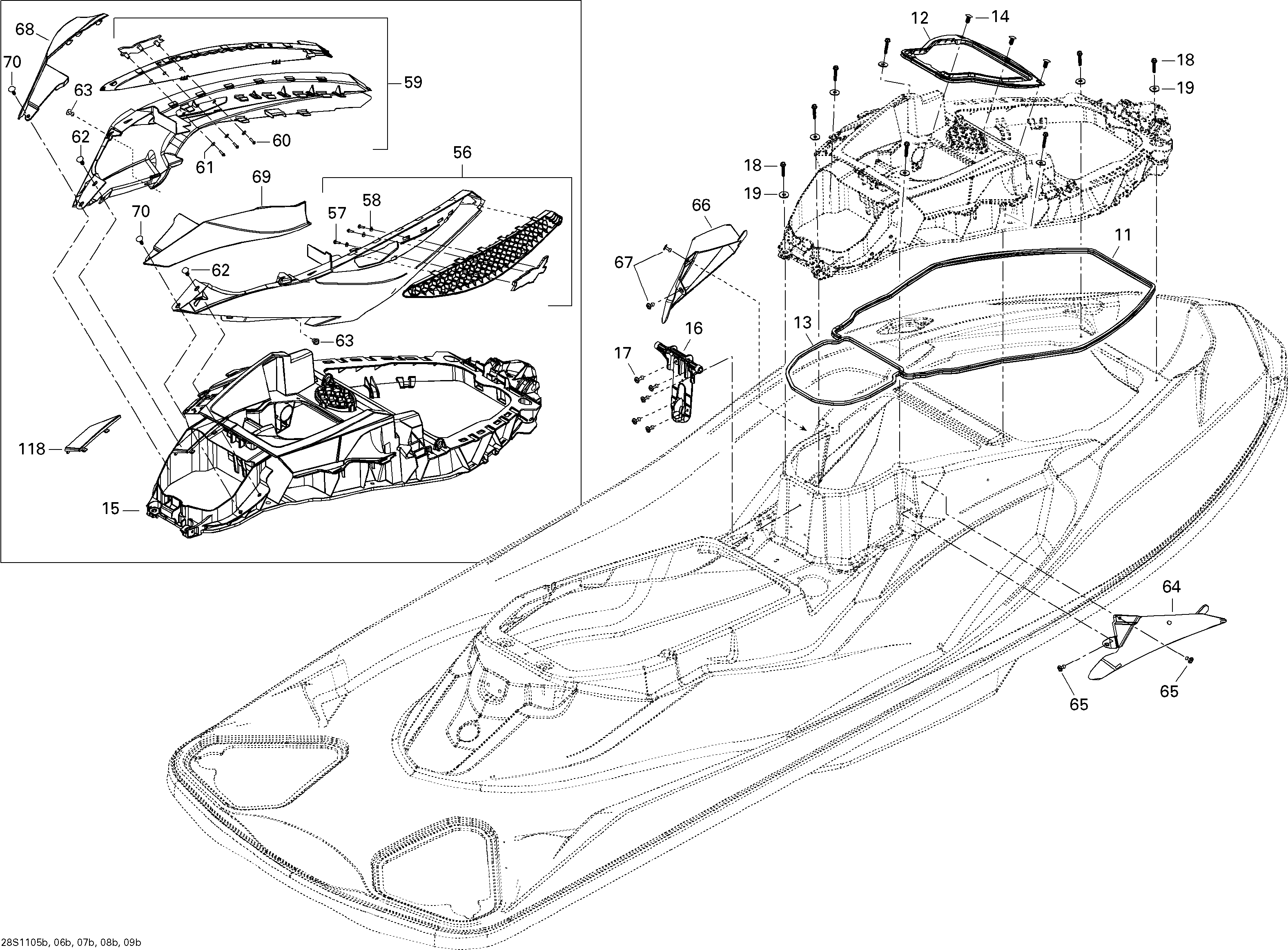

09- Body, Rear View 2 для BRP GTX 215 - 2011
-
№АртикулНазвание
-
11296000342 SealSeal
-
12293250220 SealSeal
-
13293250200 Neoprene SealNeoprene Seal
-
14293730010 Dart, BlackDart, Black
-
15291003017 Front ModuleFront Module
-
16269002162 Mounting Case AbsorberMounting Case Absorber
-
17293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
18243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
19234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
56291002938 RH Front Cover Ass'yRH Front Cover Ass'y
-
59291002942 LH Front Cover Ass'yLH Front Cover Ass'y
-
62293730006 Dart, BlackDart, Black
-
63293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
64291003192 RH Seat Pad, BlackRH Seat Pad, Black
-
65293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
66291003193 LH Seat Pad, BlackLH Seat Pad, Black
-
67293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
68291002919 LH Upper Body Cap Cover, RedLH Upper Body Cap Cover, Red
-
69291002921 RH Upper Body Cap Cover, RedRH Upper Body Cap Cover, Red
-
70293730006 Dart, BlackDart, Black
-
118291002756 Front Rewinder CapFront Rewinder Cap
