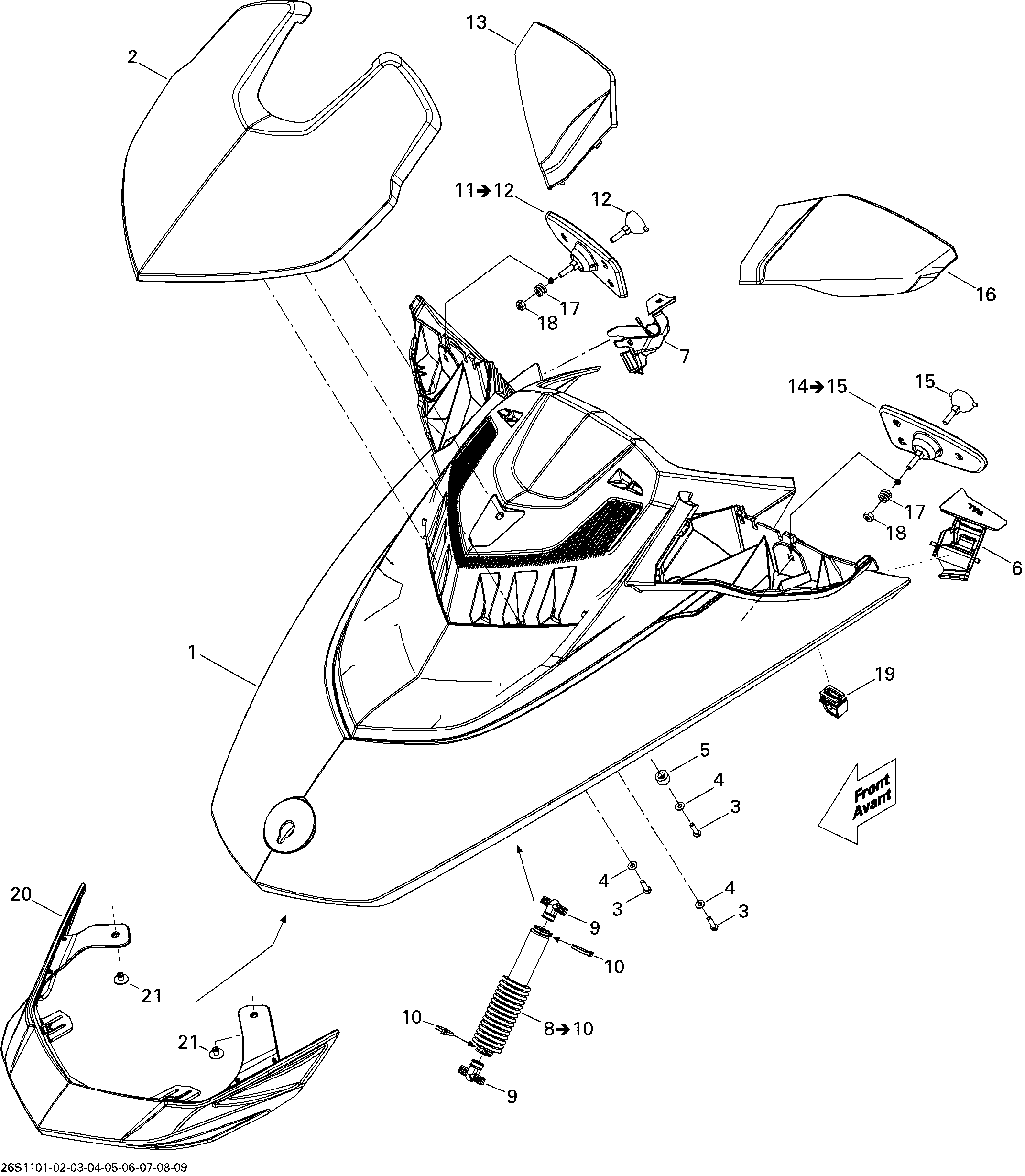

09- Front Cover для BRP RXT iS 260 - 2011
-
№АртикулНазвание
-
1269501735 Hood Ass'y, YellowHood Ass'y, Yellow
-
2269501737 Front Upper Deflector, YellowFront Upper Deflector, Yellow
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
4234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
5291001203 SpacerSpacer
-
6269501697 LH LatchLH Latch
-
7269501702 RH LatchRH Latch
-
8269501664 Shock Absorber. Includes 8 to 10Shock Absorber. Includes 8 to 10
-
9269501717 Shock End PieceShock End Piece
-
10293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11269501844 RH Mirror Ass'y. Includes 11 to 12RH Mirror Ass'y. Includes 11 to 12
-
12269500079 Mirror Ball JointMirror Ball Joint
-
13269501711 RH Mirror Housing, YellowRH Mirror Housing, Yellow
-
14269501846 LH Mirror Ass'y. Includes 14 to 15LH Mirror Ass'y. Includes 14 to 15
-
15269500079 Mirror Ball JointMirror Ball Joint
-
16269501710 LH Mirror Housing, YellowLH Mirror Housing, Yellow
-
17269500453 Mirror SpringMirror Spring
-
18232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
19293830135 Rubber BumperRubber Bumper
