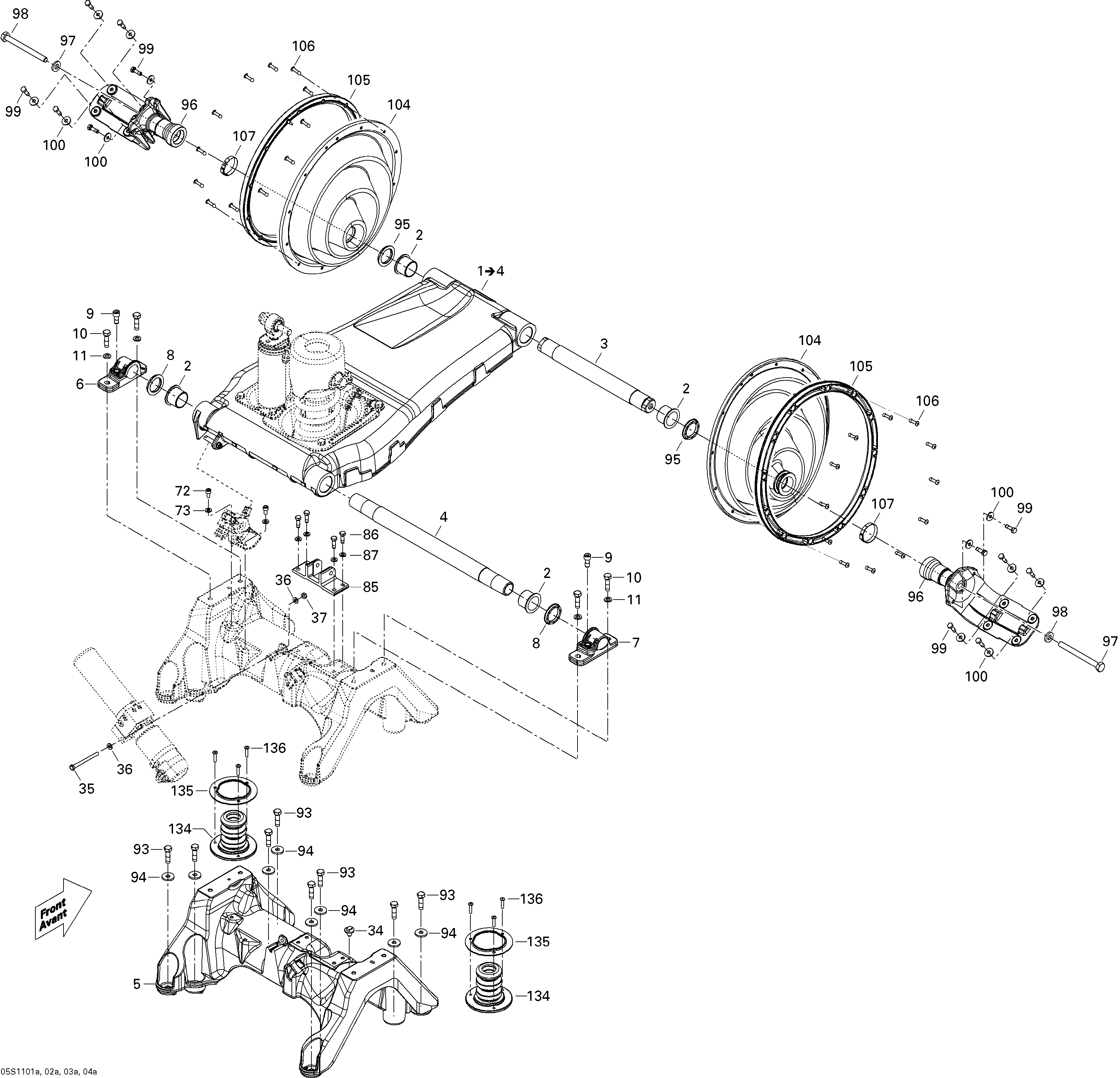

09- Seat Suspension 1 для BRP RXT iS 260 - 2011
-
№АртикулНазвание
-
1279000000 Front Arm Ass'yFront Arm Ass'y
-
2279000019 BushingBushing
-
3279000038 Pivot TubePivot Tube
-
4279000041 Pivot TubePivot Tube
-
5279000167 Front Arm BaseFront Arm Base
-
6279000089 LH ClampLH Clamp
-
7279000092 RH ClampRH Clamp
-
8279000047 Rubber BumperRubber Bumper
-
9205582060 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
10207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
11234080600 Flat Washer 8 mmFlat Washer 8 mm
-
34293730040 Mount DartMount Dart
-
35207067060 Hex. Screw M6 X 70Hex. Screw M6 X 70
-
36234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
37232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
72205561260 Socket Head Screw M6 X 12, Scotch GripSocket Head Screw M6 X 12, Scotch Grip
-
73234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
85279000155 BracketBracket
-
86207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
87234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
93250000526 Hex. Screw M8 X 30 With TreadlockerHex. Screw M8 X 30 With Treadlocker
-
94279000164 Flat WasherFlat Washer
-
95279000047 Rubber BumperRubber Bumper
-
96279000065 FootrestFootrest
-
97230201060 Hex. Screw M10 X 110, Scotch GripHex. Screw M10 X 110, Scotch Grip
-
98211200051 Flat WasherFlat Washer
-
99207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
100250200115 Flat Washer M6Flat Washer M6
-
104279000009 Lateral BellowsLateral Bellows
-
105279000011 Retaining RingRetaining Ring
-
106293150176 Pop Rivet 3/16''Pop Rivet 3/16''
-
107293650199 Oetiker ClampOetiker Clamp
-
134279000023 Rubber BumperRubber Bumper
-
135279000115 Retaining RingRetaining Ring
-
136293150005 Pop Rivet 3/16''Pop Rivet 3/16''
