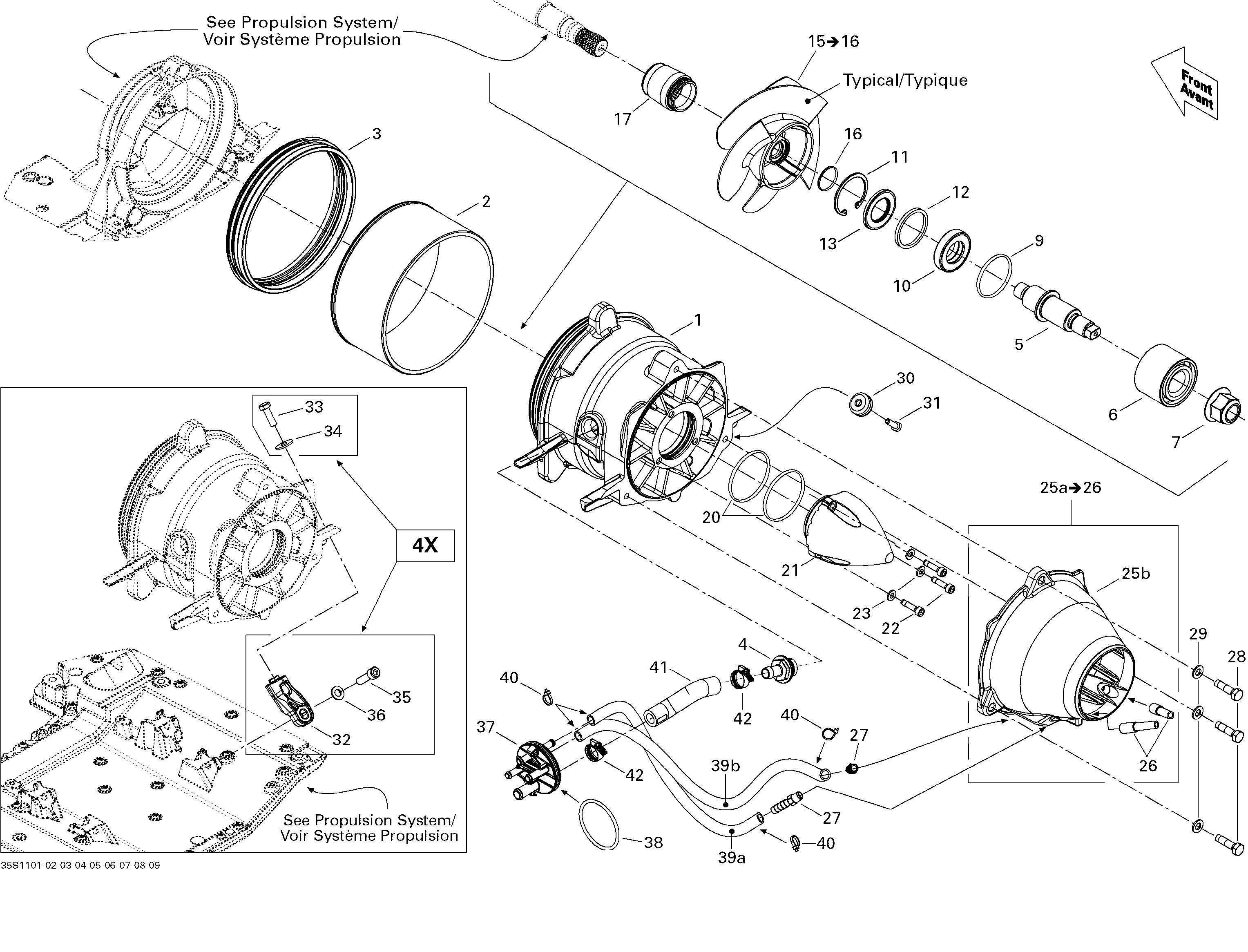

05- Pump для BRP RXT-X 260 & RS - 2011
-
№АртикулНазвание
-
1267000380 Impeller HousingImpeller Housing
-
2267000372 Wear RingWear Ring
-
3293200122 Neoprene SealNeoprene Seal
-
4267000387 FittingFitting
-
5267000388 Impeller ShaftImpeller Shaft
-
6267000030 Angled BearingAngled Bearing
-
7250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
9293300090 O-RingO-Ring
-
10293200086 Oil SealOil Seal
-
11293370038 CirclipCirclip
-
12271001393 SpacerSpacer
-
13293200089 Oil SealOil Seal
-
15267000567 Stainless Steel Impeller Ass'y. Includes 15 to 16Stainless Steel Impeller Ass'y. Includes 15 to 16
-
16293300114 O-RingO-Ring
-
17267000458 Impeller BootImpeller Boot
-
20293300086 O-RingO-Ring
-
21267000428 Impeller CoverImpeller Cover
-
22205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
23234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25a267000502 Venturi Ass'y. Includes 25a to 26Venturi Ass'y. Includes 25a to 26
-
25b267000488 Venturi, BlackVenturi, Black
-
26271001133 Siphon TubeSiphon Tube
-
27293710017 Male ConnectorMale Connector
-
28207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
29234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
30271001487 Anode ZincAnode Zinc
-
31207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
32267000482 AdaptorAdaptor
-
33207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
34234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
35205583060 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
36293050001 Flat WasherFlat Washer
-
37267000494 Fitting PlateFitting Plate
-
38267000477 O-RingO-Ring
-
39a415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
39b415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41267000606 Formed HoseFormed Hose
-
42293650172 Tridon Gear ClampTridon Gear Clamp
