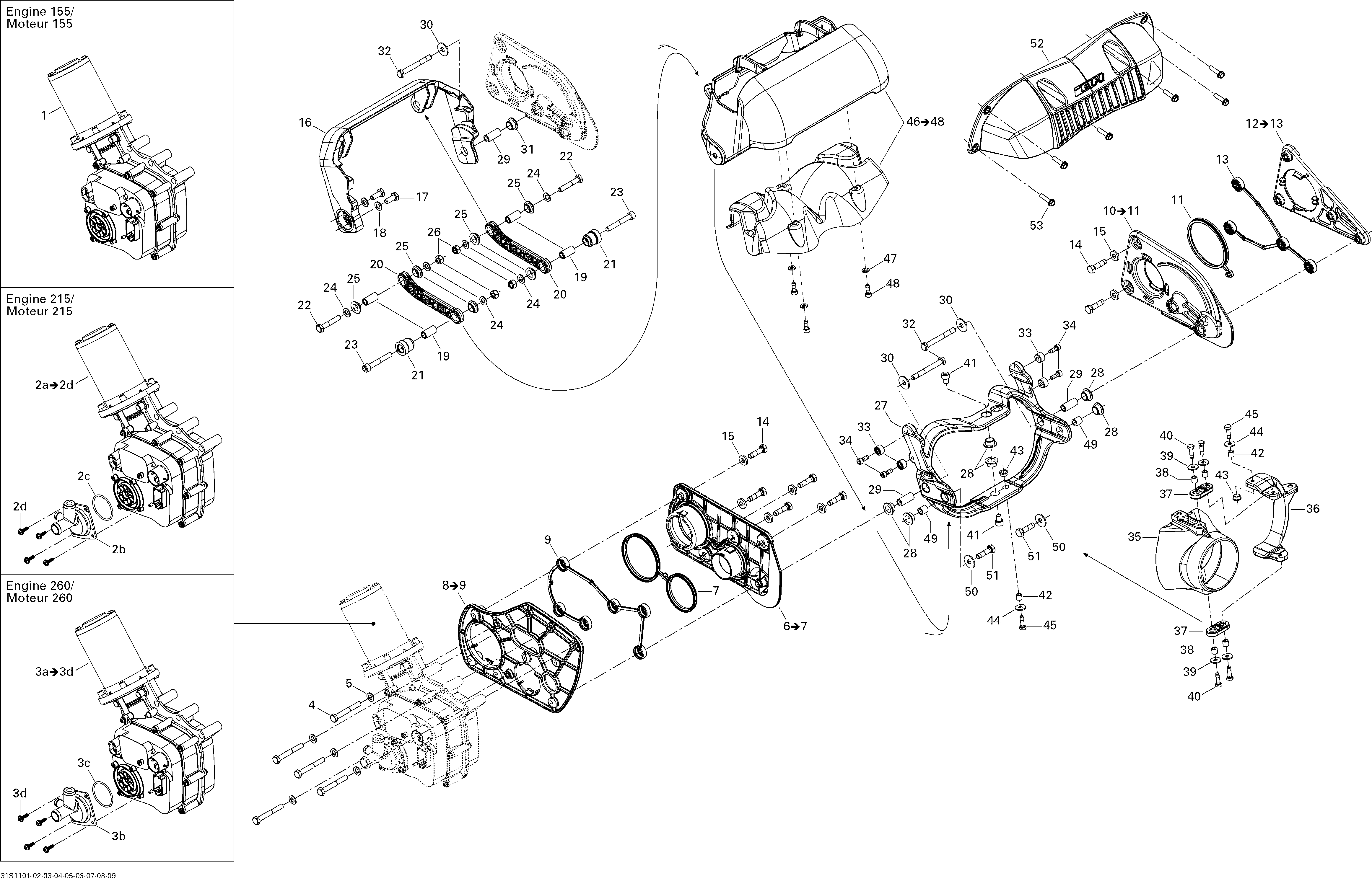

05- Reverse для BRP RXT-X 260 & RS - 2011
-
№АртикулНазвание
-
3a278002606 IBR Actuator Ass'y. Includes 3a to 3dIBR Actuator Ass'y. Includes 3a to 3d
-
3b278002473 Cooling CoverCooling Cover
-
3c278002474 O-RingO-Ring
-
3d278002475 Torx Screw, StainlessTorx Screw, Stainless
-
4250000187 Hex. Screw M8 X 60, Scotch GripHex. Screw M8 X 60, Scotch Grip
-
5234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6268000067 LH Support Plate Ass'y. Includes 6 to 7LH Support Plate Ass'y. Includes 6 to 7
-
7268000046 LH Formed SealLH Formed Seal
-
8268000069 LH Fixing Plate Ass'y. Includes 8 to 9LH Fixing Plate Ass'y. Includes 8 to 9
-
9268000055 LH Formed SealLH Formed Seal
-
10268000068 RH Support Plate Ass'y. Includes 10 to 11RH Support Plate Ass'y. Includes 10 to 11
-
11268000047 RH Formed SealRH Formed Seal
-
12268000070 RH Fixing Plate Ass'y. Includes 12 to 13RH Fixing Plate Ass'y. Includes 12 to 13
-
13268000056 RH Formed SealRH Formed Seal
-
14207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
15293050001 Flat WasherFlat Washer
-
16268000087 U Arm, BlackU Arm, Black
-
17207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
18234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19268000062 SpacerSpacer
-
20268000042 Linkage ArmLinkage Arm
-
21268000099 BushingBushing
-
22207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
23205085560 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
24234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
25271000321 Venturi BushingVenturi Bushing
-
26232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
27268000100 Trimming Ring, BlackTrimming Ring, Black
-
28293900007 Venturi BushingVenturi Bushing
-
29268000063 SpacerSpacer
-
30234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
31293900007 Venturi BushingVenturi Bushing
-
32250000506 Hex. Screw M8 X 70, Scotch GripHex. Screw M8 X 70, Scotch Grip
-
33268000045 Friction SleeveFriction Sleeve
-
34205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
35267000397 Direction Nozzle, BlackDirection Nozzle, Black
-
36268000064 Direction Nozzle Lever, BlackDirection Nozzle Lever, Black
-
37268000058 Direction Lever ArmDirection Lever Arm
-
38268000060 SpacerSpacer
-
39234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
40207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
41211000127 Socket Head Screw M8 X 10, Scotch GripSocket Head Screw M8 X 10, Scotch Grip
-
42268000060 SpacerSpacer
-
43268000059 BushingBushing
-
44234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
45207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
46268000048 Reverse Gate Ass'y. Includes 46 to 48Reverse Gate Ass'y. Includes 46 to 48
-
47234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
49271001039 SpacerSpacer
-
50234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
51207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
52268000066 GuardGuard
-
53243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
