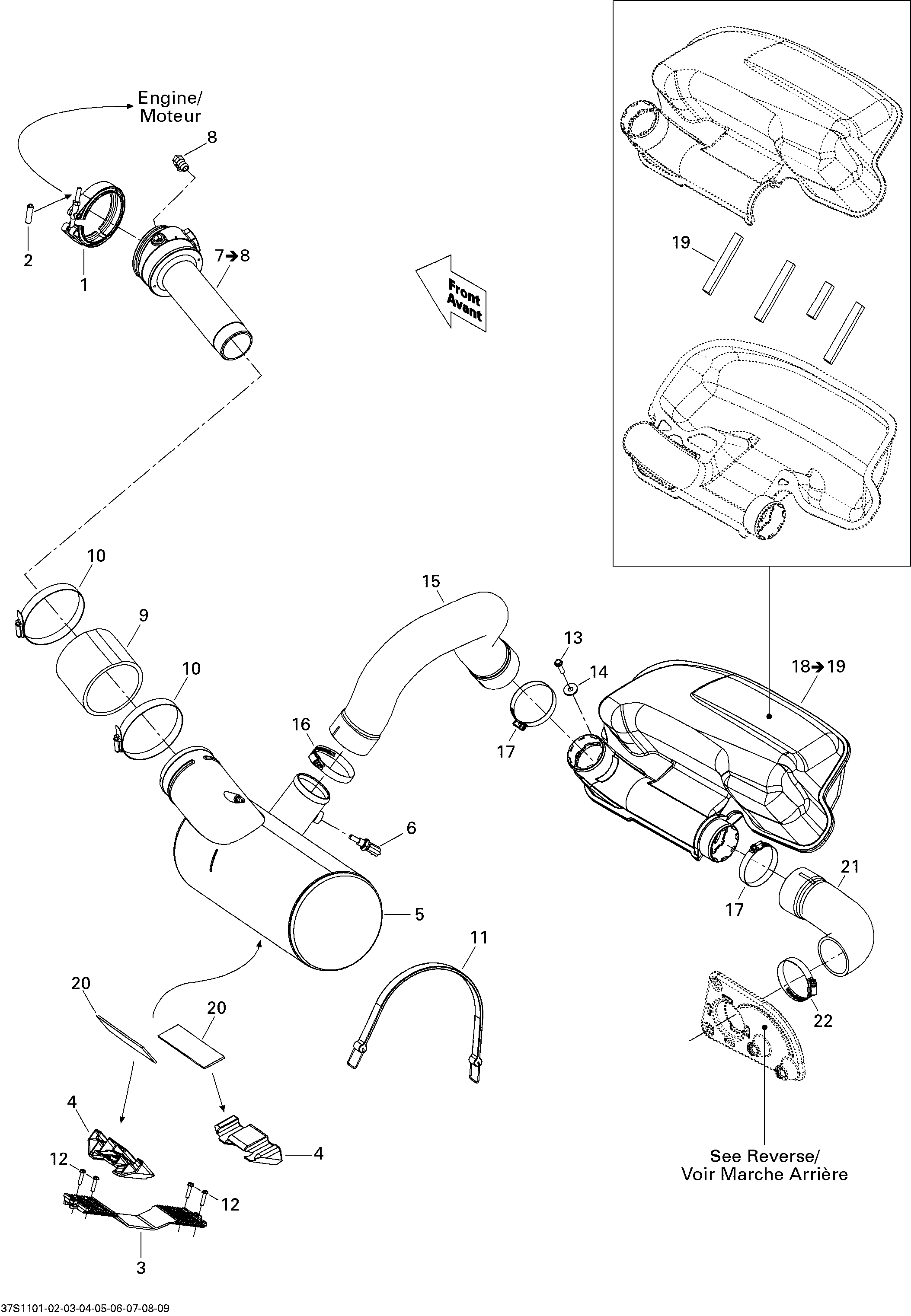

01- Exhaust System для BRP WAKE PRO 215 - 2011
-
№АртикулНазвание
-
1274001417 Exhaust ClampExhaust Clamp
-
2415080200 Hose, PolyurethaneHose, Polyurethane
-
3274001357 Exhaust SupportExhaust Support
-
4274001358 StopperStopper
-
5274001384 MufflerMuffler
-
6278001016 Temperature SensorTemperature Sensor
-
7274001354 Head Pipe Ass'y. Includes 7 to 8Head Pipe Ass'y. Includes 7 to 8
-
8293700023 Elbow Fitting 90°Elbow Fitting 90°
-
9274001348 HoseHose
-
10293650202 Gear ClampGear Clamp
-
11293850093 StrapStrap
-
12293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
13243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15274001446 Formed Exhaust HoseFormed Exhaust Hose
-
16293650179 Tridon Gear ClampTridon Gear Clamp
-
17293650179 Tridon Gear ClampTridon Gear Clamp
-
18274001366 Resonator. Includes 18 to 19Resonator. Includes 18 to 19
-
19293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
20293830126 Rubber PadRubber Pad
-
21274001423 Exhaust Hose, RearExhaust Hose, Rear
-
22293650179 Tridon Gear ClampTridon Gear Clamp
