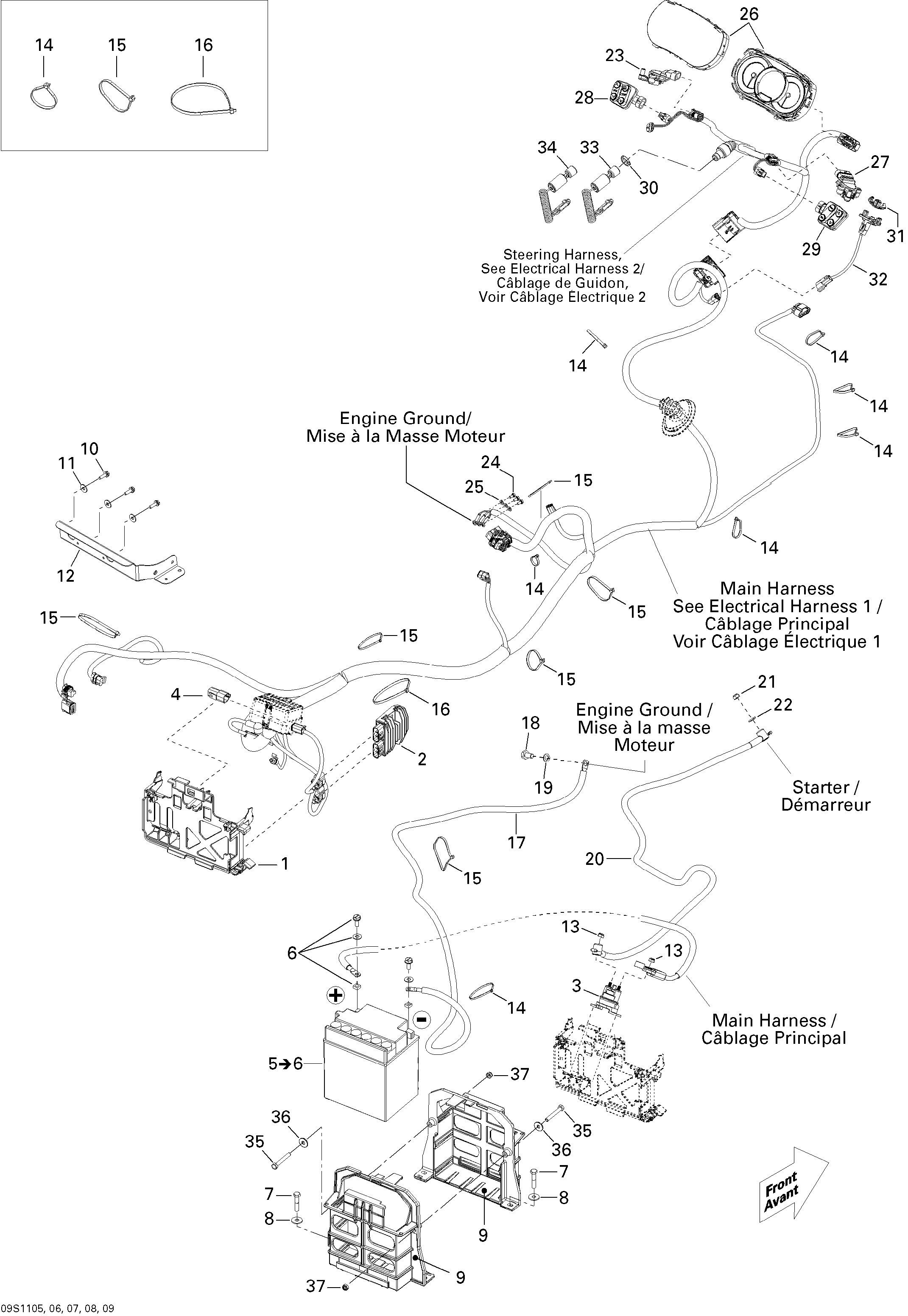

10- Electrical System для BRP WAKE PRO 215 - 2011
-
№АртикулНазвание
-
1278002338 Electrical Component SupportElectrical Component Support
-
2710001103 Voltage RegulatorVoltage Regulator
-
3278002347 Starter RelayStarter Relay
-
4278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
5278001882 Battery, 30 AmperesBattery, 30 Amperes
-
6295500849 Battery Fastener KitBattery Fastener Kit
-
7207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9278002339 Battery SupportBattery Support
-
10243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
11234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12278002402 SupportSupport
-
13232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
16293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
17278002278 Ground CableGround Cable
-
18207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
19234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
20278002279 Starter CableStarter Cable
-
21232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
22234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23278002284 LH Throttle SensorLH Throttle Sensor
-
24207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
25234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
26278002659 Main Info Center PREMIUMMain Info Center PREMIUM
-
27278002283 RH Throttle SensorRH Throttle Sensor
-
28278002604 SwitchSwitch
-
29278002602 SwitchSwitch
-
30278000508 Safety Switch NutSafety Switch Nut
-
31278002323 O.T.A.S. ActuatorO.T.A.S. Actuator
-
32278002324 O.T.A.S. SensorO.T.A.S. Sensor
-
33278002483 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
34278002484 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
-
35207164560 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
36234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
37232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
