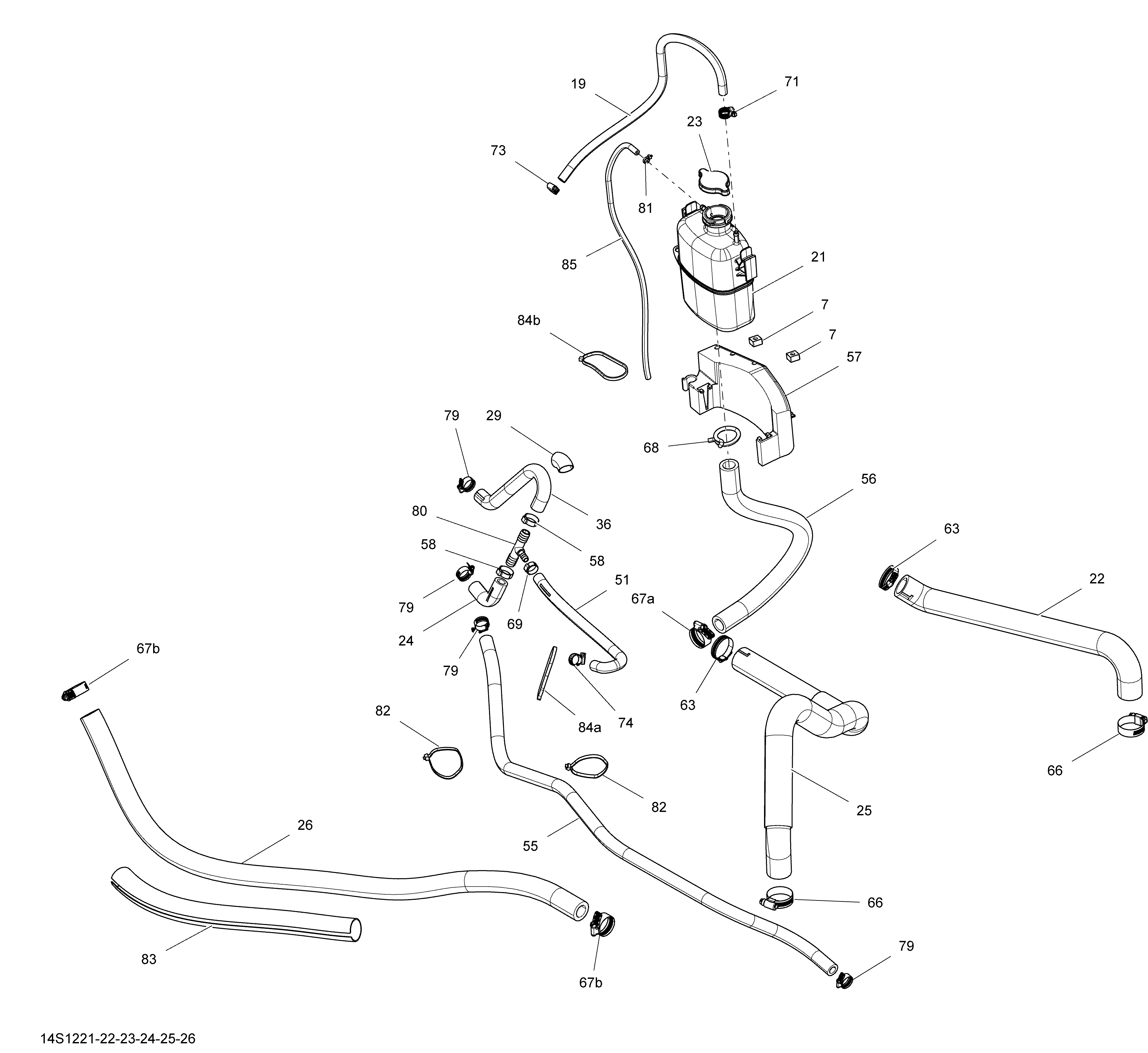

01- Cooling System для BRP GTI LTD 155 (39CA, 39CB) - 2012
-
№АртикулНазвание
-
7269501166 Nut Housing Ass'yNut Housing Ass'y
-
19204300184 Hose 1/4''Hose 1/4''
-
21276000086 Coolant TankCoolant Tank
-
22276000248 RH Radiator HoseRH Radiator Hose
-
23276000100 Pressure CapPressure Cap
-
24276000245 Lower Formed HoseLower Formed Hose
-
25276000249 LH Radiator HoseLH Radiator Hose
-
26276000158 Hose 19 mmHose 19 mm
-
29276000162 Protector Tube 25 mmProtector Tube 25 mm
-
36276000244 Formed HoseFormed Hose
-
51276000246 Formed HoseFormed Hose
-
55276000151 Hose 12.5 mmHose 12.5 mm
-
56276000099 Hose 19 mmHose 19 mm
-
57291003082 Support Ass'ySupport Ass'y
-
58293650012 Oetiker ClampOetiker Clamp
-
63293650185 Tridon Gear ClampTridon Gear Clamp
-
66293650185 Tridon Gear ClampTridon Gear Clamp
-
68293650115 Spring ClampSpring Clamp
-
69293650030 Oetiker ClampOetiker Clamp
-
71293650170 Tridon Gear ClampTridon Gear Clamp
-
73293650170 Tridon Gear ClampTridon Gear Clamp
-
74293650171 Tridon Gear ClampTridon Gear Clamp
-
79293650172 Tridon Gear ClampTridon Gear Clamp
-
80293710116 T-FittingT-Fitting
-
81293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
82293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
83409902200 Tubing 25 mmTubing 25 mm
-
85415080200 Hose, PolyurethaneHose, Polyurethane
-
67a293650019 Tridon Gear ClampTridon Gear Clamp
-
67b293650051 Tridon Gear ClampTridon Gear Clamp
-
84a293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
84b414115200 Tie-Rap 180 mmTie-Rap 180 mm
