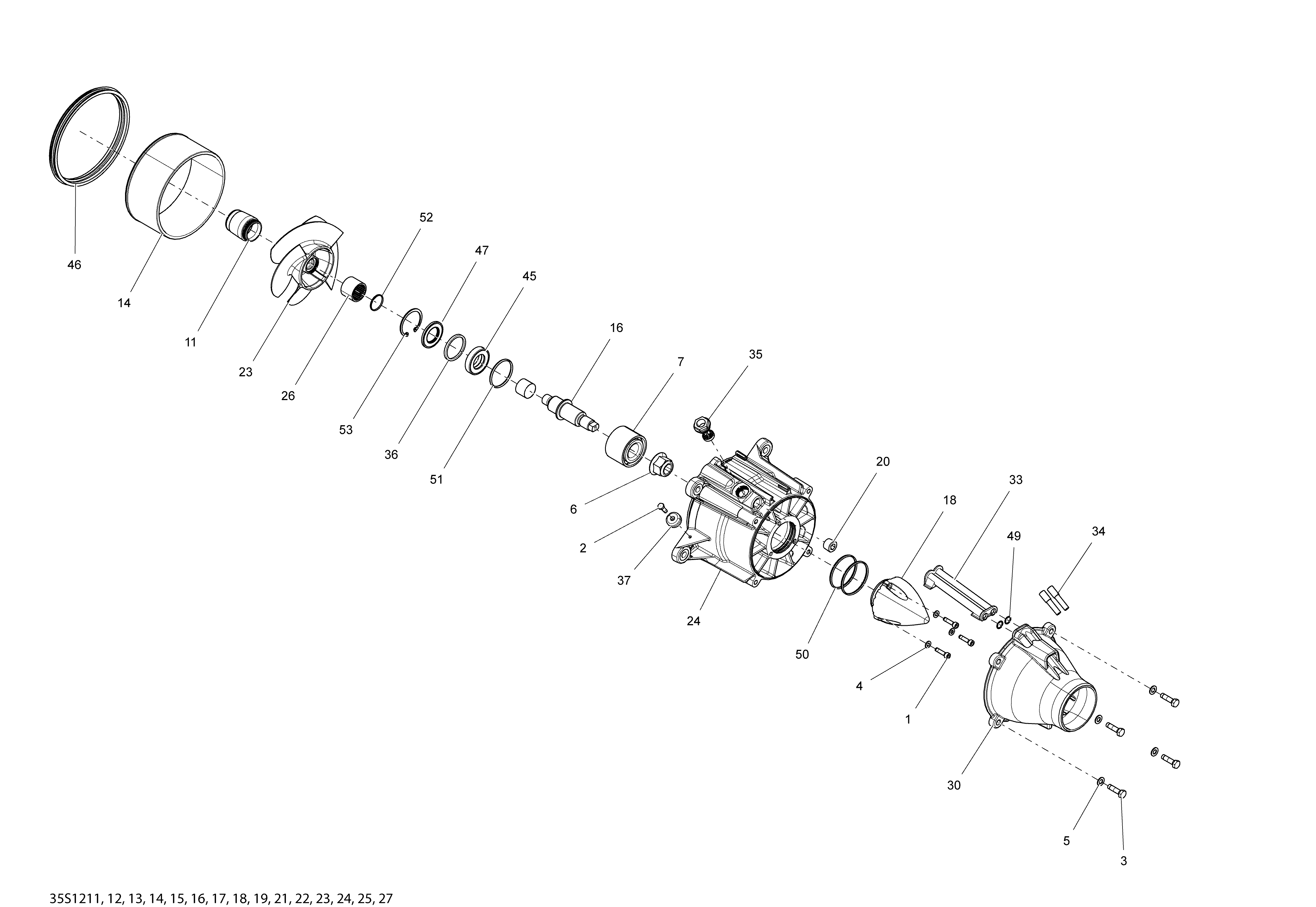

05- Pump для BRP GTI LTD 155 (39CA, 39CB) - 2012
-
№АртикулНазвание
-
1205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
3207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
4234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
7267000030 Angled BearingAngled Bearing
-
11267000206 Impeller BootImpeller Boot
-
14267000419 Wear RingWear Ring
-
16267000388 Impeller ShaftImpeller Shaft
-
18267000428 Impeller CoverImpeller Cover
-
20267000469 Plug Plastic, BlackPlug Plastic, Black
-
23267000532 Stainless Impeller Ass'yStainless Impeller Ass'y
-
24267000540 Impeller HousingImpeller Housing
-
30267000659 Anodise VenturiAnodise Venturi
-
33271000785 Water OutletWater Outlet
-
34271001133 Siphon TubeSiphon Tube
-
35267000282 PlugPlug
-
36271001393 SpacerSpacer
-
37271001813 Anode ZincAnode Zinc
-
45293200086 Oil SealOil Seal
-
46293200087 Neoprene SealNeoprene Seal
-
47293200089 Oil SealOil Seal
-
49293300013 O-RingO-Ring
-
50293300086 O-RingO-Ring
-
51293300090 O-RingO-Ring
-
52293300114 O-RingO-Ring
-
53293370038 CirclipCirclip
