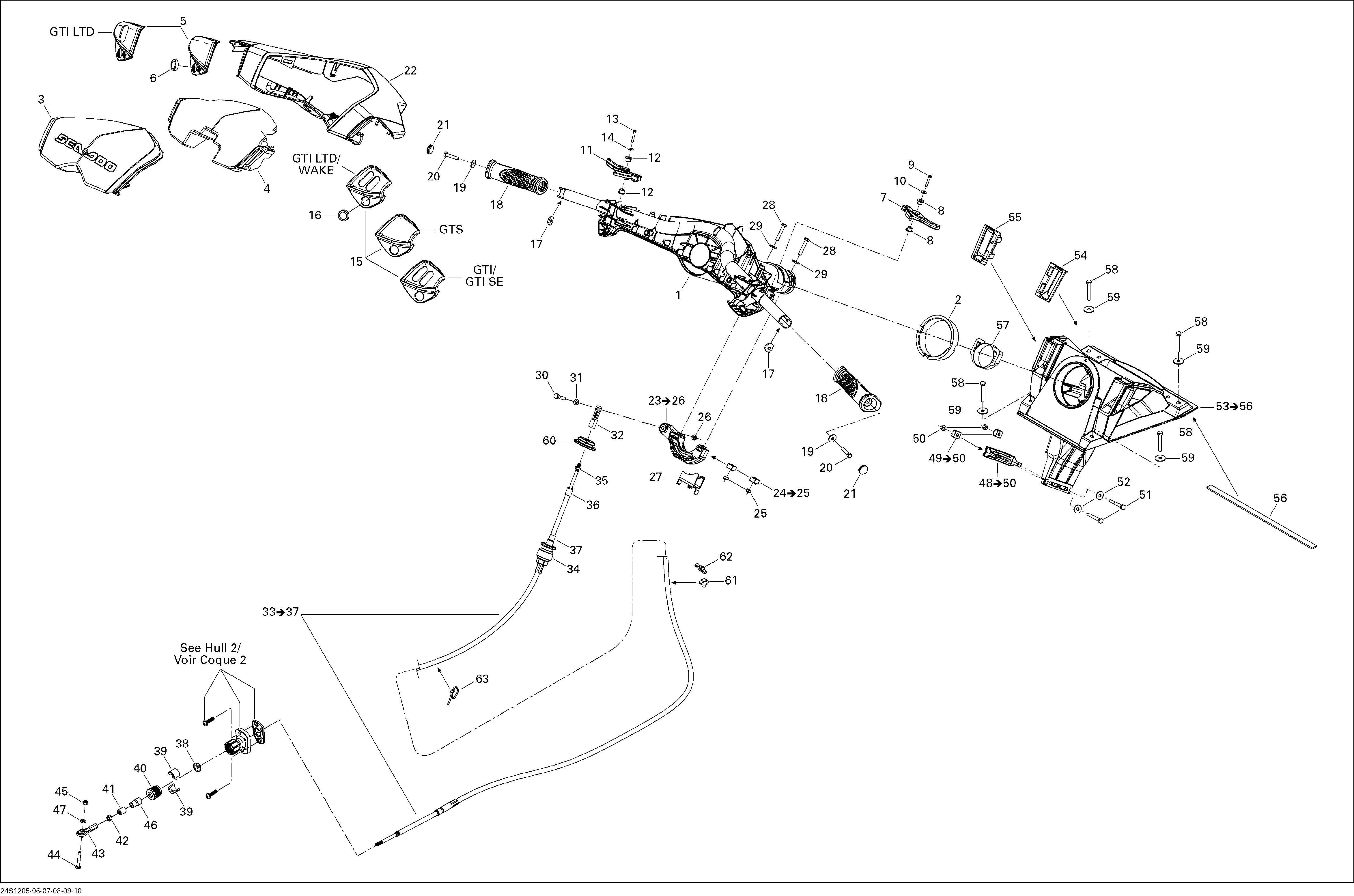

07- Steering для BRP GTI SE 155 (30CS) - 2012
-
№АртикулНазвание
-
1277001596 SteeringSteering
-
2277001653 Wear RingWear Ring
-
3277001622 Steering Pad, SilverSteering Pad, Silver
-
4277001621 Top FoamTop Foam
-
5277001721 LH Housing CoverLH Housing Cover
-
6277001802 Switch Knob, RedSwitch Knob, Red
-
7277001620 Throttle HandleThrottle Handle
-
8293900091 BushingBushing
-
9241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
10234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
11277001629 Reverse HandleReverse Handle
-
12293900091 BushingBushing
-
13241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
14234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
15277001755 RH Housing CoverRH Housing Cover
-
17277000554 Handle Grip InsertHandle Grip Insert
-
18277001624 Handle GripHandle Grip
-
19234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
21277000203 Cap, BlackCap, Black
-
22277001597 Steering CoverSteering Cover
-
23277001779 Support Ass'y. Includes 23 to 26Support Ass'y. Includes 23 to 26
-
24269501166 Nut Housing Ass'y. Includes 24 to 25Nut Housing Ass'y. Includes 24 to 25
-
25232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
26232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
27277001654 SpacerSpacer
-
28207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
29234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
30207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
31234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32277001180 Ball JointBall Joint
-
33277001578 Steering Cable Ass'y. Includes 33 to 37Steering Cable Ass'y. Includes 33 to 37
-
34277000782 Ajustment KnobAjustment Knob
-
35211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
36277001582 Small BootSmall Boot
-
37277001583 Large BootLarge Boot
-
38293830063 Rubber WasherRubber Washer
-
39277001527 Half RingHalf Ring
-
40277001729 Steering Cable LockSteering Cable Lock
-
41277001582 Small BootSmall Boot
-
42211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
43277000775 Ball JointBall Joint
-
44207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
45232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
46277001583 Large BootLarge Boot
-
47234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48277001655 Thrust Support Ass'y. Includes 48 to 50Thrust Support Ass'y. Includes 48 to 50
-
49269501166 Nut Housing Ass'y. Includes 49 to 50Nut Housing Ass'y. Includes 49 to 50
-
50232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
51207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
52234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
53277001876 Steering Support Ass'y. Includes 53 to 56Steering Support Ass'y. Includes 53 to 56
-
54277001791 RH DeflectorRH Deflector
-
55277001792 LH DeflectorLH Deflector
-
56293250087 Gasket, NeopreneGasket, Neoprene
-
57277001741 Wear RingWear Ring
-
58245064560 Hex Cap Screw M6X1.0X45 S.GripHex Cap Screw M6X1.0X45 S.Grip
-
59250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
60293720090 Cable GrommetCable Grommet
-
61293730040 Mount DartMount Dart
-
62414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
63293750008 Tie-Rap 350 mmTie-Rap 350 mm
