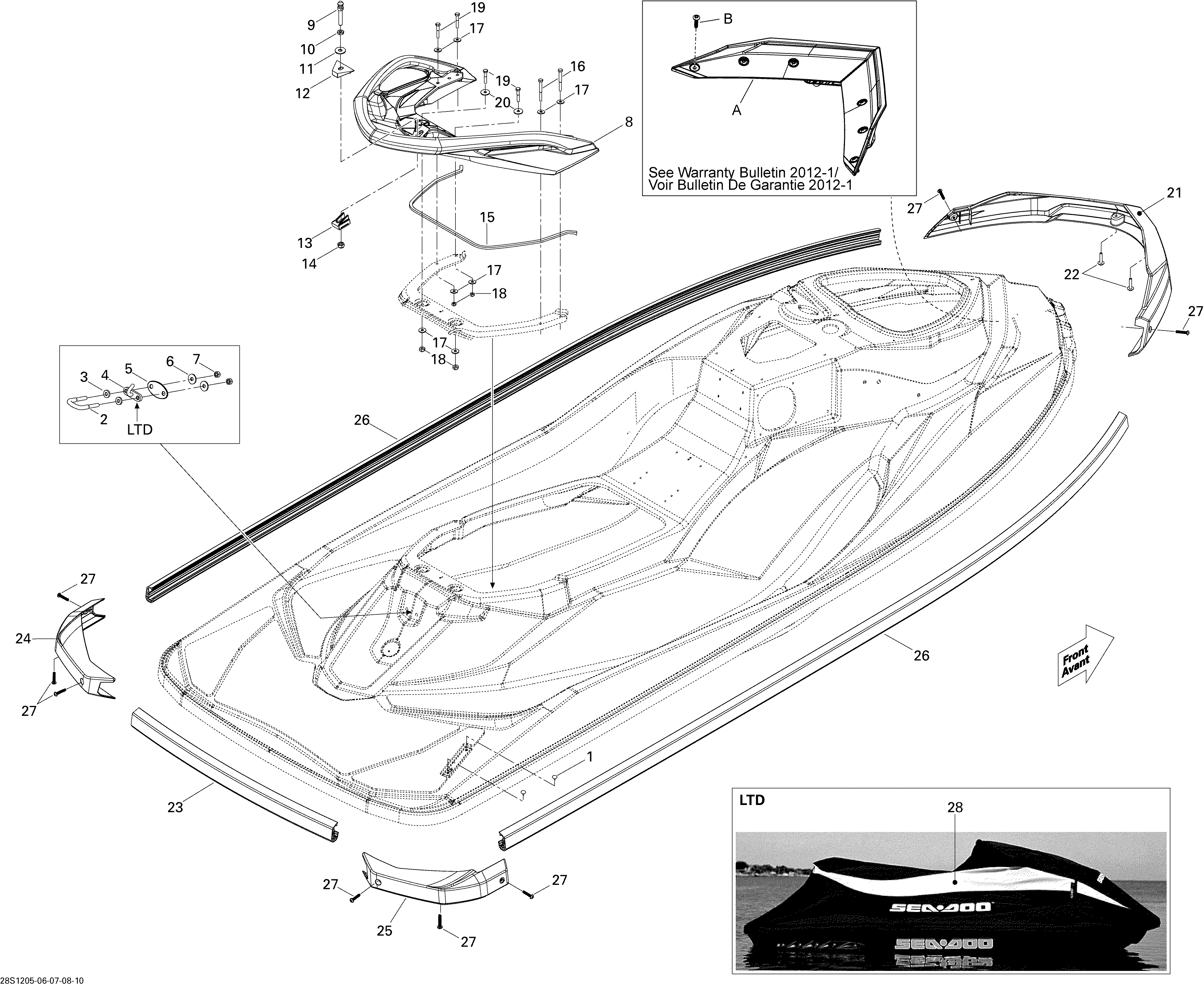

09- Body, Rear View для BRP GTI SE 155 (30CS) - 2012
-
№АртикулНазвание
-
1293000014 Snap Cap, BlackSnap Cap, Black
-
2292000933 U-ClampU-Clamp
-
3293050001 Flat WasherFlat Washer
-
5291001386 Finition Plate, BlackFinition Plate, Black
-
6234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
8291004625 Black Rear HandleBlack Rear Handle
-
9291003245 Seat StudSeat Stud
-
10232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
11234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
12269002125 Seat Stud SpacerSeat Stud Spacer
-
13269002126 Seat Stud SupportSeat Stud Support
-
14232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
15293250218 GasketGasket
-
16207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
17234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
18232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
19207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
20250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
21291003064 Front BumperFront Bumper
-
22250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
23291003067 BumperBumper
-
24291003066 LH Bumper CornerLH Bumper Corner
-
25291003065 RH Bumper CornerRH Bumper Corner
-
26291003067 BumperBumper
-
27250000505 Torx ScrewTorx Screw
-
A291003738 Body DeflectorBody Deflector
-
B250000561 Torx Plastite Washer Screw M6.81 X 3Torx Plastite Washer Screw M6.81 X 3
