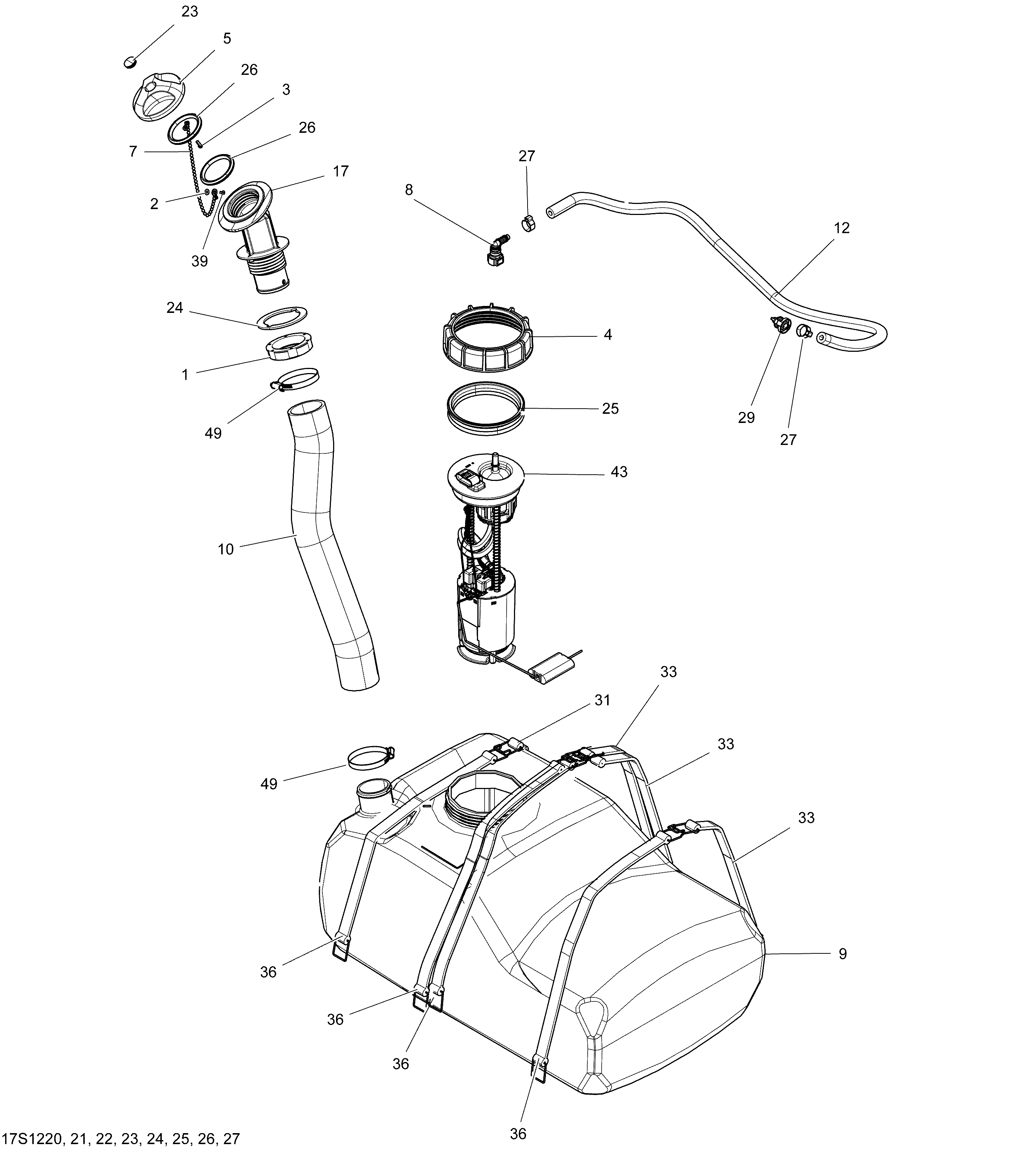

02- Fuel System для BRP GTR 215 - 2012
-
№АртикулНазвание
-
1211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
2234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
3241140060 Screw K40 X 10Screw K40 X 10
-
4250100062 Special Nut M130Special Nut M130
-
5275500833 Fuel Cap Ass'yFuel Cap Ass'y
-
7275500507 Fuel Cap ChainFuel Cap Chain
-
8275500700 Quick Attach 90°Quick Attach 90°
-
9275500754 Fuel Tank Ass'yFuel Tank Ass'y
-
10275500788 Filler Neck HoseFiller Neck Hose
-
12296000331 BoyauBoyau
-
17275500845 Filler NeckFiller Neck
-
23293000034 Snap Cap, BlackSnap Cap, Black
-
24293250029 GasketGasket
-
25293250173 GasketGasket
-
26293250285 GasketGasket
-
27293650053 Crimp ClampCrimp Clamp
-
29293710105 Elbow Fitting 90°Elbow Fitting 90°
-
31293850087 Fuel Tank StrapFuel Tank Strap
-
33293850093 Fuel Tank StrapFuel Tank Strap
-
36293850101 Fuel Tank StrapFuel Tank Strap
-
39390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
43275500850 Fuel Pump Ass'yFuel Pump Ass'y
-
43a275500780 Sensor LeverSensor Lever
-
43b270600108 Fuel FilterFuel Filter
-
49293650081 Norma ClampNorma Clamp
