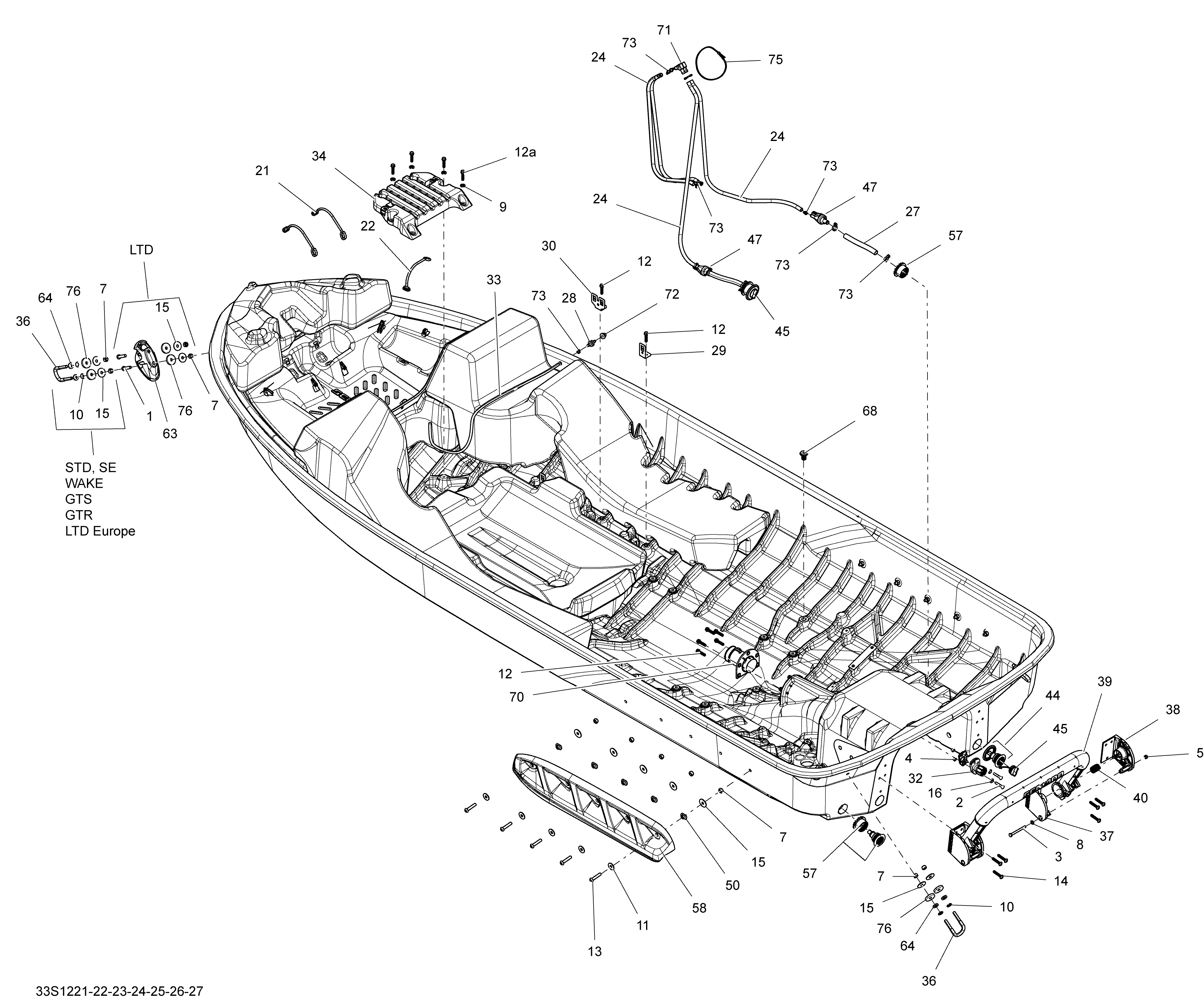

09- Hull для BRP GTR 215 - 2012
-
№АртикулНазвание
-
2207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
9234080600 Flat Washer 8 mmFlat Washer 8 mm
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
13250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
14250000468 Torx ScrewTorx Screw
-
15250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
16250200114 Sealing WasherSealing Washer
-
21269500408 StrapStrap
-
24415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
27275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
28275500499 Check ValveCheck Valve
-
29275500743 Strap Clip 90°Strap Clip 90°
-
30275500798 Double Strap Clip 90°Double Strap Clip 90°
-
32277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
33275500446 Hose 6 mmHose 6 mm
-
34278002866 Battery Base Ass'yBattery Base Ass'y
-
36292000933 U-ClampU-Clamp
-
44292001315 Drain Neck Ass'yDrain Neck Ass'y
-
45292001352 Plug Drain Ass'yPlug Drain Ass'y
-
47292001310 Bailer Ass'yBailer Ass'y
-
50292001349 Spacer SponsonSpacer Sponson
-
57292001371 BushingBushing
-
58292001513 LH SponsonLH Sponson
-
58292001514 RH SponsonRH Sponson
-
64293050001 Flat WasherFlat Washer
-
68293450290 Insert Capuchon M8Insert Capuchon M8
-
70293450316 Hull InsertHull Insert
-
71293710117 Elbow Fitting 90°Elbow Fitting 90°
-
72293720029 GrommetGrommet
-
73293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
75293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
76293830037 Rubber WasherRubber Washer
-
12a243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
