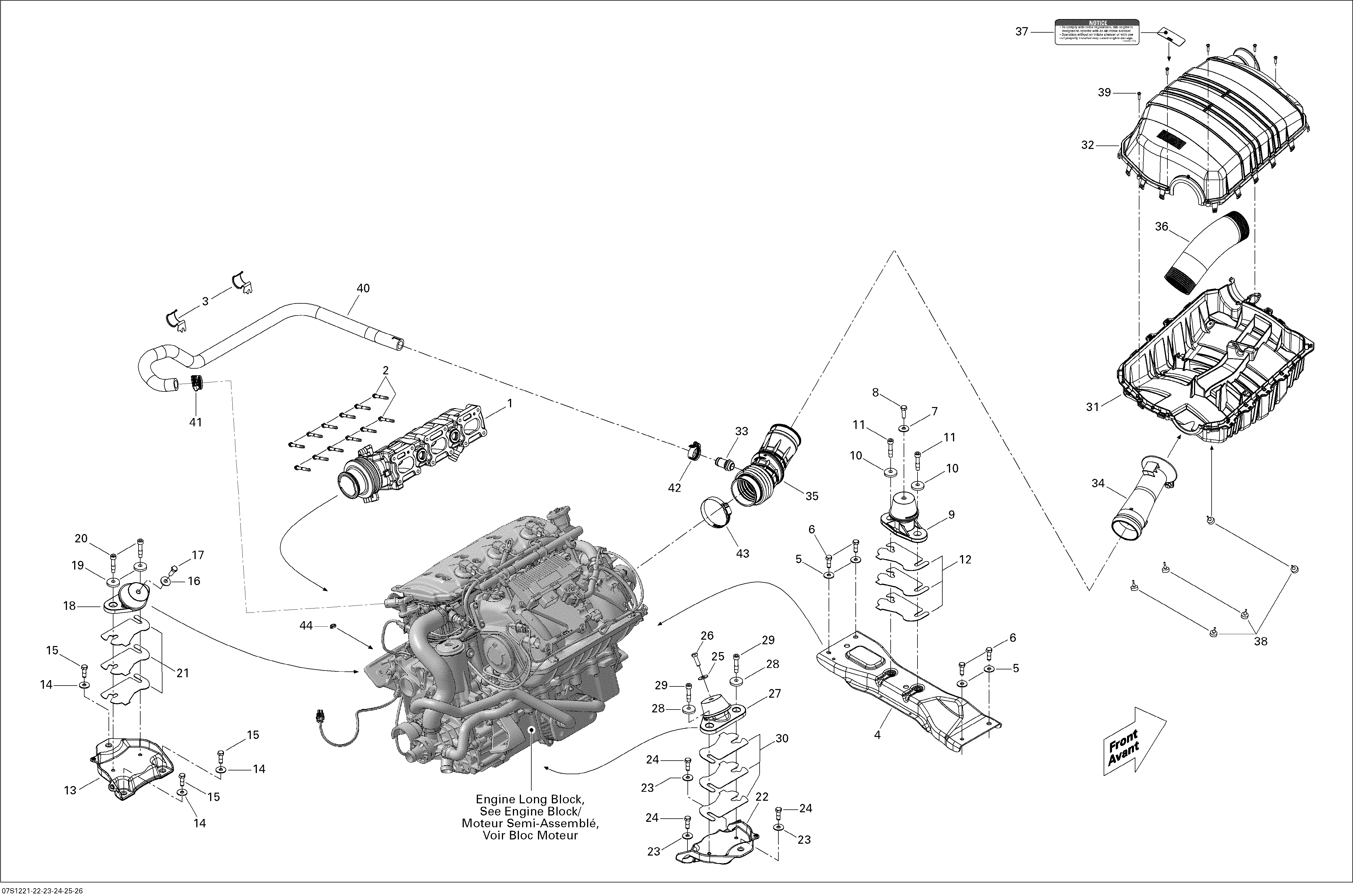

01- Engine And Air Intake Silencer для BRP GTS 130 & Rental 99 (43CA, 43CB, 25CB) - 2012
-
№АртикулНазвание
-
1274001434 Exhaust ManifoldExhaust Manifold
-
2420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3275500664 RetainerRetainer
-
4270000818 Front SpacerFront Spacer
-
5234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
9270000885 Rubber MountRubber Mount
-
10250200018 Cone WasherCone Washer
-
11250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
12270000762 Shim 1.3 mmShim 1.3 mm
-
13270000815 Rear SpacerRear Spacer
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
16234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
17207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
18270000882 Rubber MountRubber Mount
-
19250200018 Cone WasherCone Washer
-
20250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
21270000762 Shim 1.3 mmShim 1.3 mm
-
22270000815 Rear SpacerRear Spacer
-
23234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
25234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
26207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
27270000882 Rubber MountRubber Mount
-
28250200018 Cone WasherCone Washer
-
29250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
30270000762 Shim 1.3 mmShim 1.3 mm
-
31273000298 Air Silencer LowAir Silencer Low
-
32273000297 Air Silencer UpperAir Silencer Upper
-
33273000234 BreatherBreather
-
34273000291 Intake HoseIntake Hose
-
35273000292 Hose ConnectorHose Connector
-
36273000290 Air Silencer HoseAir Silencer Hose
-
37219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
38708000759 Rubber StopperRubber Stopper
-
39250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
40270000809 Formed HoseFormed Hose
-
41293650051 Tridon Gear ClampTridon Gear Clamp
-
42293650051 Tridon Gear ClampTridon Gear Clamp
-
43293650179 Tridon ClampTridon Clamp
-
44293750002 Tie-Rap 142 mmTie-Rap 142 mm
