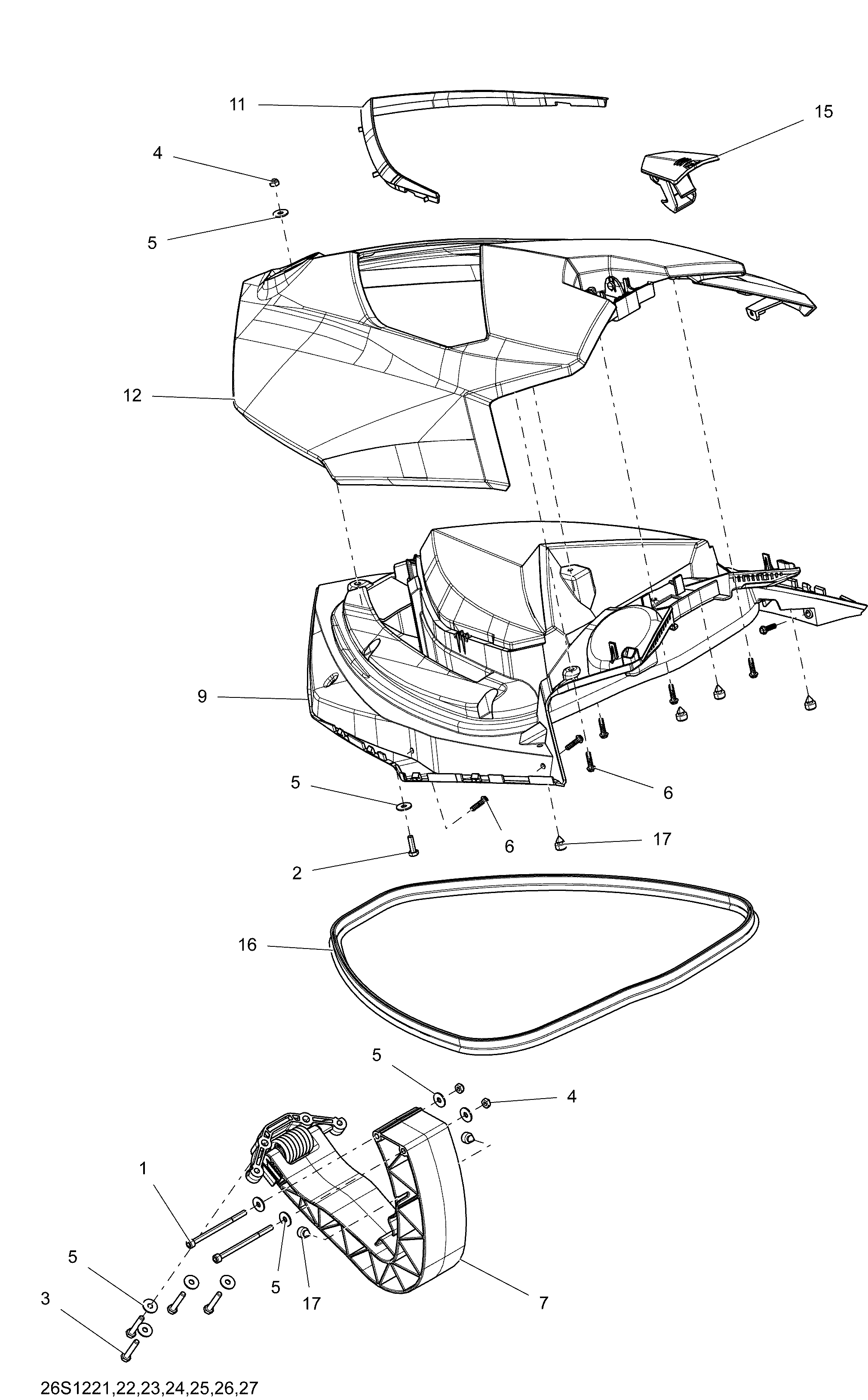

09- Front Cover для BRP GTS 130 & Rental 99 (43CA, 43CB, 25CB) - 2012
-
№АртикулНазвание
-
1205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
2207162060 Hex. Forming Screw M6 X 20. GTSHex. Forming Screw M6 X 20. GTS
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4232561200 Elastic Stop Nut M6, Brass. GTSElastic Stop Nut M6, Brass. GTS
-
5234062600 Flat Washer M6, Stainless. GTSFlat Washer M6, Stainless. GTS
-
6241152060 Hex. Flanged Screw K50 X 20. GTSHex. Flanged Screw K50 X 20. GTS
-
7269501944 Hinge Ass'yHinge Ass'y
-
9269501897 Lower Storage Cover. GTSLower Storage Cover. GTS
-
11269501859 Front Moulding. GTSFront Moulding. GTS
-
12269501932 Storage Cover. GTSStorage Cover. GTS
-
15269700142 Latch Lever. GTSLatch Lever. GTS
-
16293250047 Neoprene Seal. GTSNeoprene Seal. GTS
-
17293830005 Rubber Plug. GTSRubber Plug. GTS
