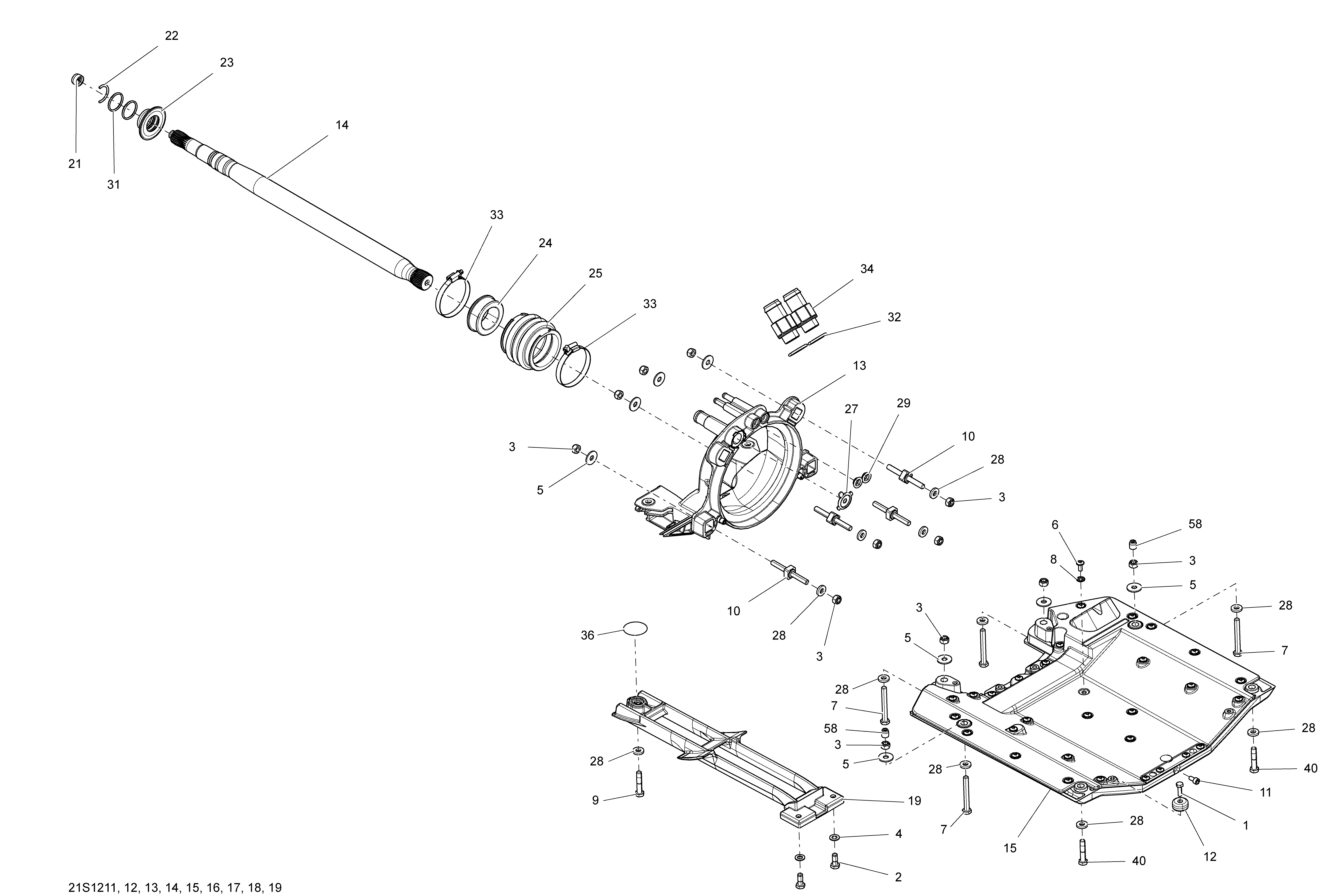

05- Propulsion для BRP RXT-X aS 260 & RS. 2012 - 2012
-
№АртикулНазвание
-
1207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
2207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
3232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
4234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
7207186560 Hex. Screw M8 X 65Hex. Screw M8 X 65
-
8250200114 Sealing WasherSealing Washer
-
9250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
10250300046 Square StudSquare Stud
-
11250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
12271001813 Anode ZincAnode Zinc
-
13271001775 Pump SupportPump Support
-
14271001719 Drive ShaftDrive Shaft
-
15271001776 Riding PlateRiding Plate
-
19271001691 Pump GratePump Grate
-
21272000173 Drive Shaft PlugDrive Shaft Plug
-
22271001577 C-ClipC-Clip
-
23271001434 Support RingSupport Ring
-
24271001420 Carbon RingCarbon Ring
-
25271001422 BellowBellow
-
27271001586 Reducer, GreenReducer, Green
-
28293050001 Flat WasherFlat Washer
-
29293250084 Watertight SealWatertight Seal
-
31293300107 O-RingO-Ring
-
32293300121 O-RingO-Ring
-
33293650079 Norma ClampNorma Clamp
-
34293710124 Strait FittingStrait Fitting
-
36293830047 Protector DiskProtector Disk
-
40250000230 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
58415080200 Hose, PolyurethaneHose, Polyurethane
