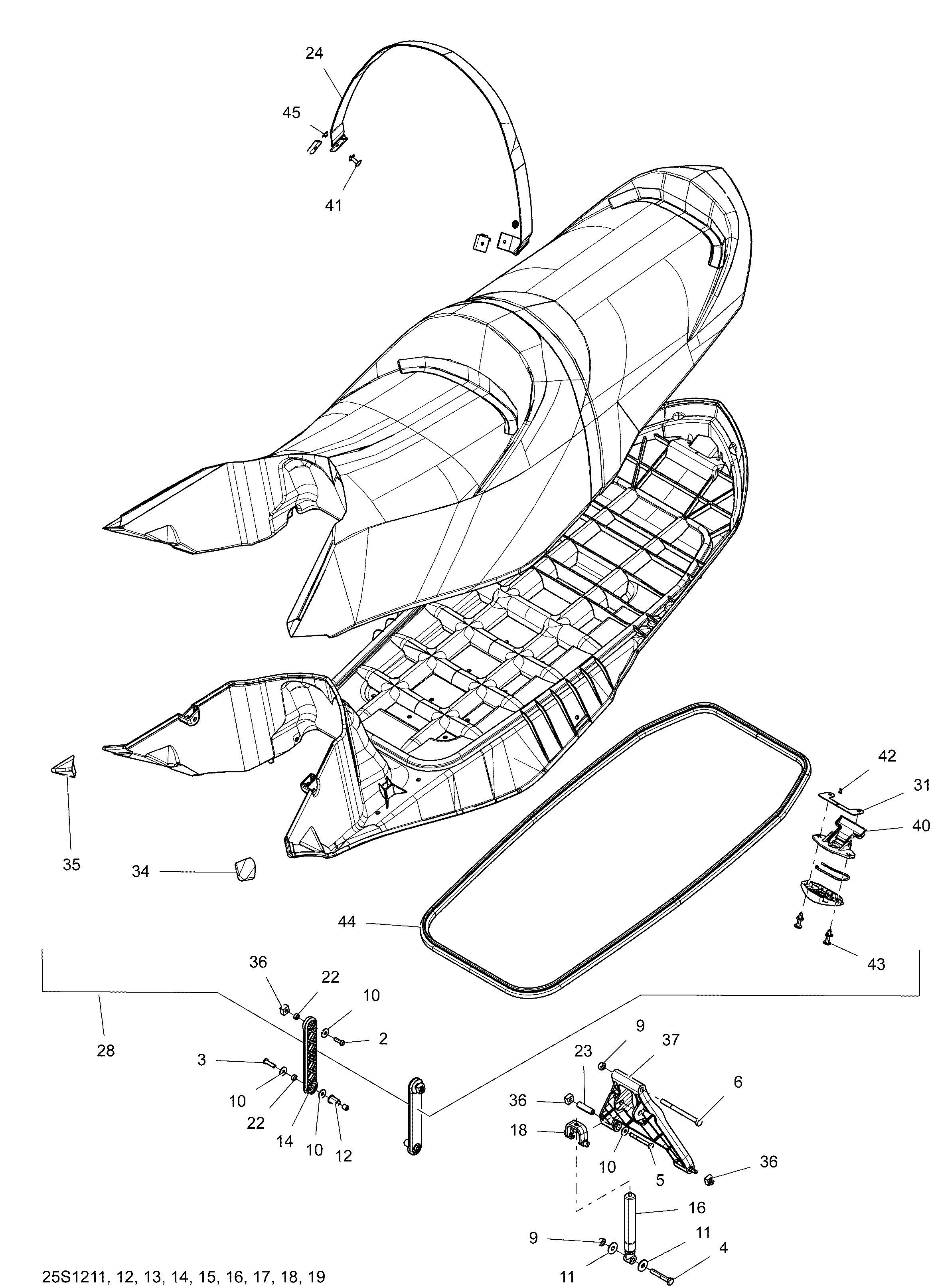

09- Seat для BRP RXT-X aS 260 & RS. 2012 - 2012

-
№АртикулНазвание
-
2205462060 Socket Screw M6 X 20. RXT aS YellowSocket Screw M6 X 20. RXT aS Yellow
-
3205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
4207085060 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
5207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
6230080060 Hex. Screw M8 X 100Hex. Screw M8 X 100
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234062600 Flat Washer M6, Stainless. RXT aS YellowFlat Washer M6, Stainless. RXT aS Yellow
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
14296000299 Lateral Arm. RXT aS Yellow. Includes Spacer 269001588 (2x)Lateral Arm. RXT aS Yellow. Includes Spacer 269001588 (2x)
-
16269001537 ShockShock
-
18269002077 End FittingEnd Fitting
-
23269001589 SpacerSpacer
-
24269001676 Seat Strap. RXT aS YellowSeat Strap. RXT aS Yellow
-
28269002354 Seat Ass'y. RXT aS YellowSeat Ass'y. RXT aS Yellow
-
34269002184 LH Seat Protector. RXT aS YellowLH Seat Protector. RXT aS Yellow
-
35269002185 RH Seat Protector. RXT aS YellowRH Seat Protector. RXT aS Yellow
-
36269501166 Nut Housing Ass'y. RXT aS YellowNut Housing Ass'y. RXT aS Yellow
-
37269501699 Center ArmCenter Arm
-
40269700116 Latch Ass'y. RXT aS YellowLatch Ass'y. RXT aS Yellow
-
41293150067 Rivet. RXT aS YellowRivet. RXT aS Yellow
-
42293150143 Pop Rivet 1/8. RXT aS YellowPop Rivet 1/8. RXT aS Yellow
-
43293150151 Rivet 1/4''. RXT aS YellowRivet 1/4''. RXT aS Yellow
-
44293200124 Seal. RXT aS YellowSeal. RXT aS Yellow
-
45293720067 Grommet. RXT aS YellowGrommet. RXT aS Yellow
