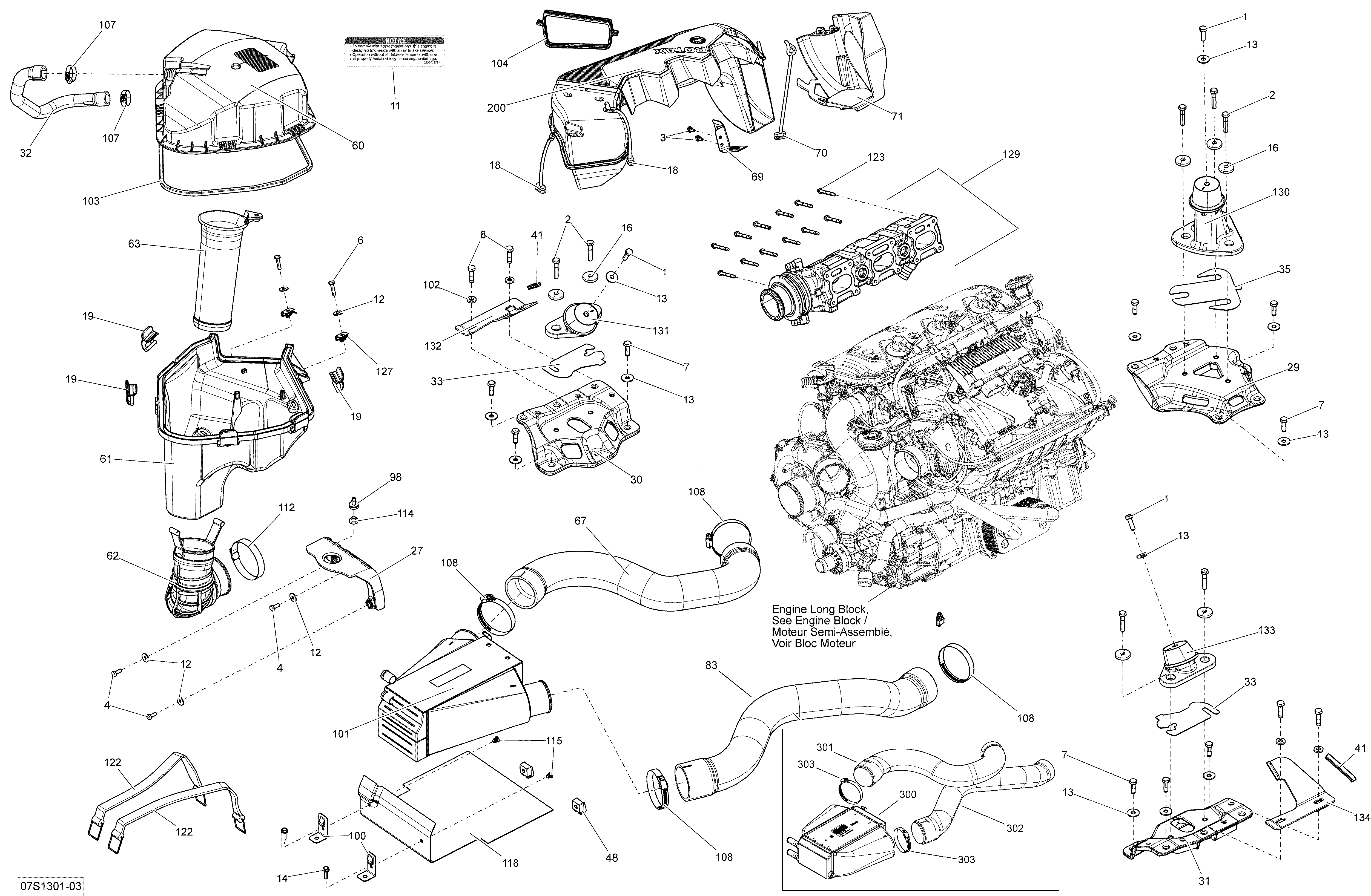

01- Engine And Air Intake Silencer для BRP RXT-X aS 260 & RS. 2013 - 2013
-
№АртикулНазвание
-
1207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
2207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
6207362560 Hex. Screw M6 X 25, Scotch GripHex. Screw M6 X 25, Scotch Grip
-
7250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
11219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
12234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
16250200018 Cone WasherCone Washer
-
18269501299 StrapStrap
-
19269501718 ClipClip
-
27270000735 Air Box SupportAir Box Support
-
29270000767 SpacerSpacer
-
30270000763 SpacerSpacer
-
31270000766 SpacerSpacer
-
32270000807 Formed HoseFormed Hose
-
33270000762 Shim 1.3 mmShim 1.3 mm
-
35270000770 Shim 1.3 mmShim 1.3 mm
-
41204610371 Trim, BlackTrim, Black
-
48270000854 Strap AnchorStrap Anchor
-
60273000249 Air Silencer UpperAir Silencer Upper
-
61273000250 Air Silencer LowAir Silencer Low
-
62273000251 Connector HoseConnector Hose
-
63273000252 Intake HoseIntake Hose
-
67273000282 Inlet Hose CoolerInlet Hose Cooler
-
69273000260 Air Box BracketAir Box Bracket
-
70273000261 StrapStrap
-
71273000271 DeflectorDeflector
-
83273000300 Outlet Hose CoolerOutlet Hose Cooler
-
98275500454 Check ValveCheck Valve
-
100275500743 Strap Clip 90°Strap Clip 90°
-
101276000332 IntercoolerIntercooler
-
102293050001 Flat WasherFlat Washer
-
103293200123 Neoprene SealNeoprene Seal
-
104293250190 SealSeal
-
107293650051 Tridon Gear ClampTridon Gear Clamp
-
108293650179 Tridon ClampTridon Clamp
-
112293650179 Tridon ClampTridon Clamp
-
114293720064 GrommetGrommet
-
115293730016 Dart, BlackDart, Black
-
118293830146 Rubber PadRubber Pad
-
122293850093 StrapStrap
-
123420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
127420942108 Panel Nut M6 X 1Panel Nut M6 X 1
-
129274001434 Exhaust ManifoldExhaust Manifold
-
130270000886 Rubber MountRubber Mount
-
131270000882 Rubber MountRubber Mount
-
132270000796 LH StopperLH Stopper
-
133270000882 Rubber MountRubber Mount
-
134270000799 RH StopperRH Stopper
-
200273000253 Intake TubeIntake Tube
-
300276000397 Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
-
301273000361 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
302273000362 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
303293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7Tridon Gear Clamp. Ref Service Bulletin 2015-7
