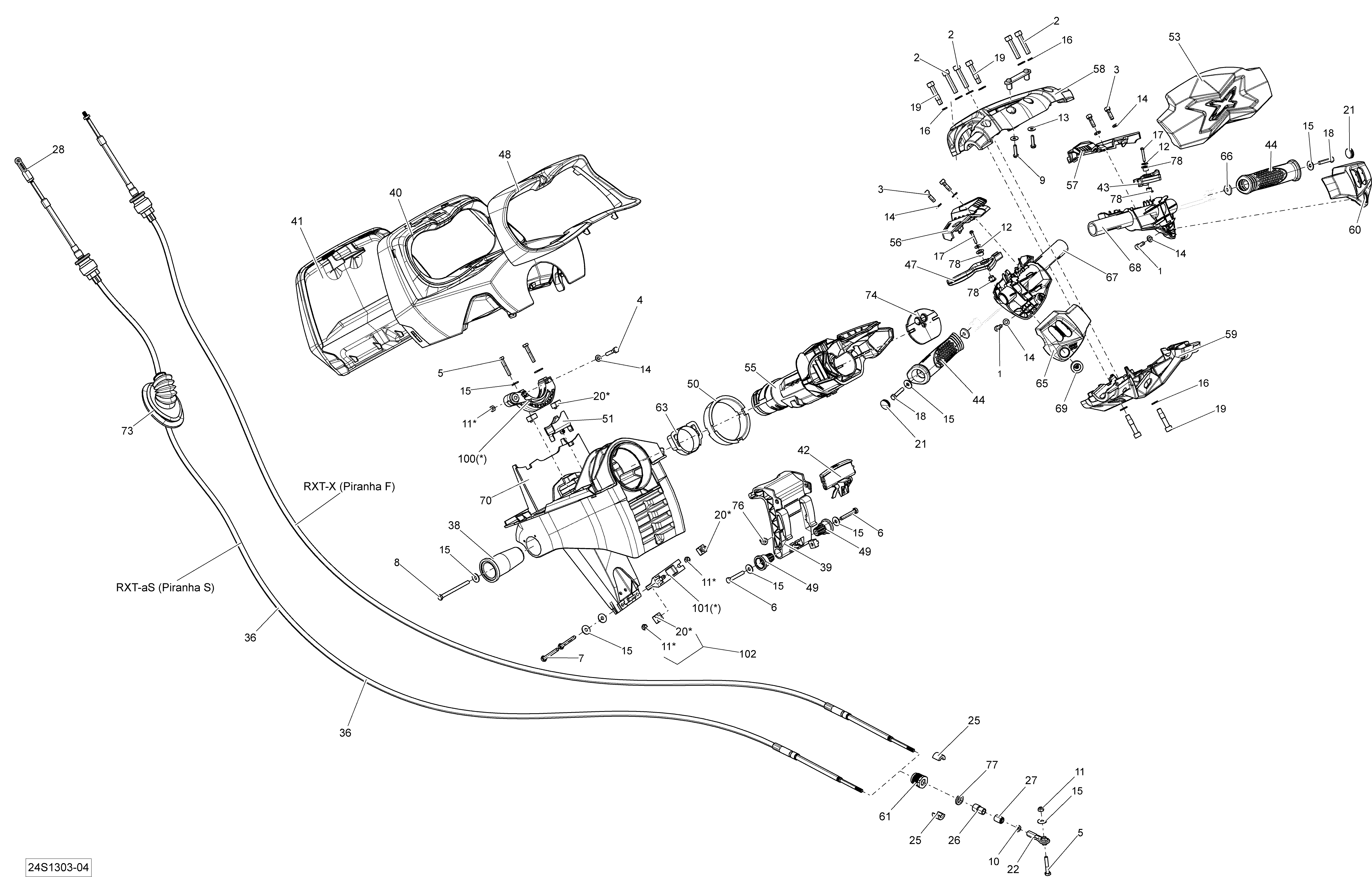

07- Steering для BRP RXT-X aS 260 & RS. 2013 - 2013
-
№АртикулНазвание
-
1205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
4207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
5207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
6207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
7207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
8207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
9211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
10211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
11232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
13234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
14234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
16234080600 Flat Washer 8 mmFlat Washer 8 mm
-
17241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
18250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
19250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
20269501166 Nut Housing Ass'yNut Housing Ass'y
-
21277000203 Cap, BlackCap, Black
-
22277000775 Ball JointBall Joint
-
25277001527 Half RingHalf Ring
-
26277001583 Large BootLarge Boot
-
27277001582 Small BootSmall Boot
-
28277001180 Ball JointBall Joint
-
36277001602 Steering CableSteering Cable
-
38277001605 Steering Support PivotSteering Support Pivot
-
39277001658 Handle Ass'yHandle Ass'y
-
40277001612 Gauge SupportGauge Support
-
41277001613 Gauge Support CoverGauge Support Cover
-
42277001616 LockLock
-
43277001620 Throttle HandleThrottle Handle
-
44277001624 Handle GripHandle Grip
-
47277001629 Reverse HandleReverse Handle
-
48277001630 Gauge Trim, BlackGauge Trim, Black
-
49277001652 PivotPivot
-
50277001653 Wear RingWear Ring
-
51277001654 SpacerSpacer
-
53277001683 Handle PadHandle Pad
-
55277001807 Steering ColomnSteering Colomn
-
56277001686 LH Upper HousingLH Upper Housing
-
57277001688 RH Upper HousingRH Upper Housing
-
58277001708 Front Extension BlocFront Extension Bloc
-
59277001710 Rear Extension BlocRear Extension Bloc
-
60277001718 RH Housing CoverRH Housing Cover
-
61277001729 Steering Cable LockSteering Cable Lock
-
63277001741 Wear RingWear Ring
-
65277001794 LH Housing CoverLH Housing Cover
-
66277001863 Insert Grip HandleInsert Grip Handle
-
67277001884 LH Lower HousingLH Lower Housing
-
68277001885 RH Lower HousingRH Lower Housing
-
69277001887 Knob SwitchKnob Switch
-
70277001896 Steering SupportSteering Support
-
73293720083 GrommetGrommet
-
74293720086 GrommetGrommet
-
76293830005 Rubber PlugRubber Plug
-
77293830063 Rubber WasherRubber Washer
-
78293900091 BushingBushing
-
100277001779 Support Ass'ySupport Ass'y
-
101277001655 Thrust Support Ass'yThrust Support Ass'y
-
102269501166 Nut Housing Ass'yNut Housing Ass'y
