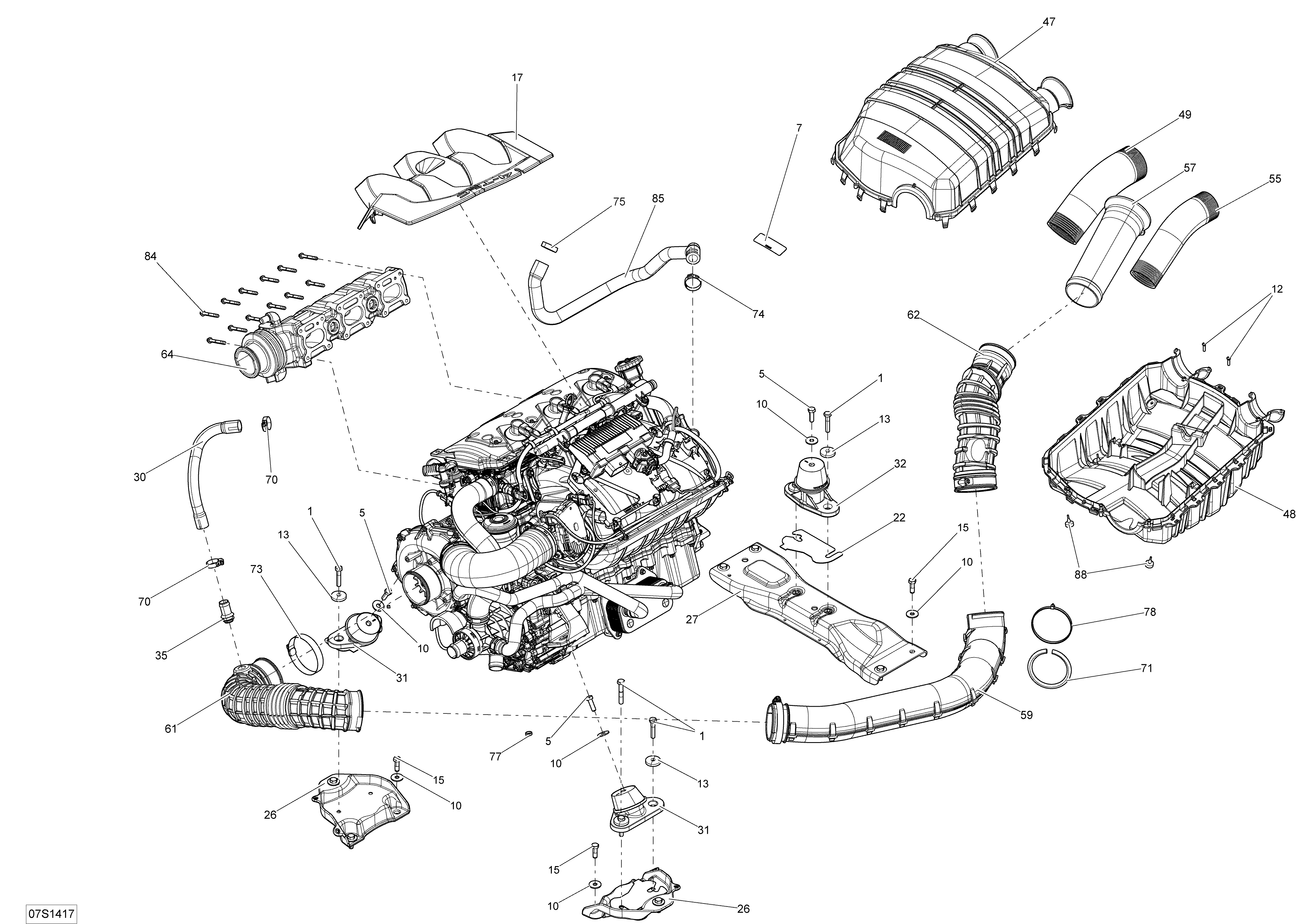

01- Engine _07S1417 для BRP GTR 215 - 2014
-
№АртикулНазвание
-
1207284060 Hex. Screw M8 X 40, Scotch Grip. Hull LFIHex. Screw M8 X 40, Scotch Grip. Hull LFI
-
1207385060 Hex. Screw M8 X 50, Scotch Grip. Hull ACMPHex. Screw M8 X 50, Scotch Grip. Hull ACMP
-
5207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
10234082600 Flat Washer 8 mm, Stainless. Hull LFIFlat Washer 8 mm, Stainless. Hull LFI
-
13250200018 Cone WasherCone Washer
-
15250000525 Hex. Screw M8 X 25, Scotch Grip. Hull LFIHex. Screw M8 X 25, Scotch Grip. Hull LFI
-
17270000680 Engine CoverEngine Cover
-
22270000762 Shim 1.3 mmShim 1.3 mm
-
26270000815 Rear Spacer. Hull LFIRear Spacer. Hull LFI
-
27270000818 Front Spacer. Hull LFIFront Spacer. Hull LFI
-
30270000864 Formed HoseFormed Hose
-
31270000882 Rubber MountRubber Mount
-
32270000885 Rubber MountRubber Mount
-
35273000234 BreatherBreather
-
47273000288 Air Silencer UpperAir Silencer Upper
-
48273000289 Air Silencer LowAir Silencer Low
-
49273000290 Air Silencer HoseAir Silencer Hose
-
55273000299 Air Silencer TubeAir Silencer Tube
-
57273000301 Intake HoseIntake Hose
-
59273000311 Intake Hose, CenterIntake Hose, Center
-
61273000328 Hose Intake, RearHose Intake, Rear
-
62273000320 Hose ConnectorHose Connector
-
64274001504 Exhaust ManifoldExhaust Manifold
-
70293650051 Tridon Gear ClampTridon Gear Clamp
-
71415110000 Polyurethane Hose 5.2 mm. Hull ACMPPolyurethane Hose 5.2 mm. Hull ACMP
-
73293650179 Tridon ClampTridon Clamp
-
74293650217 Crimp ClampCrimp Clamp
-
75293650051 Tridon Gear ClampTridon Gear Clamp
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
78293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
84420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
85420822174 Formed HoseFormed Hose
-
88708000759 Rubber StopperRubber Stopper
