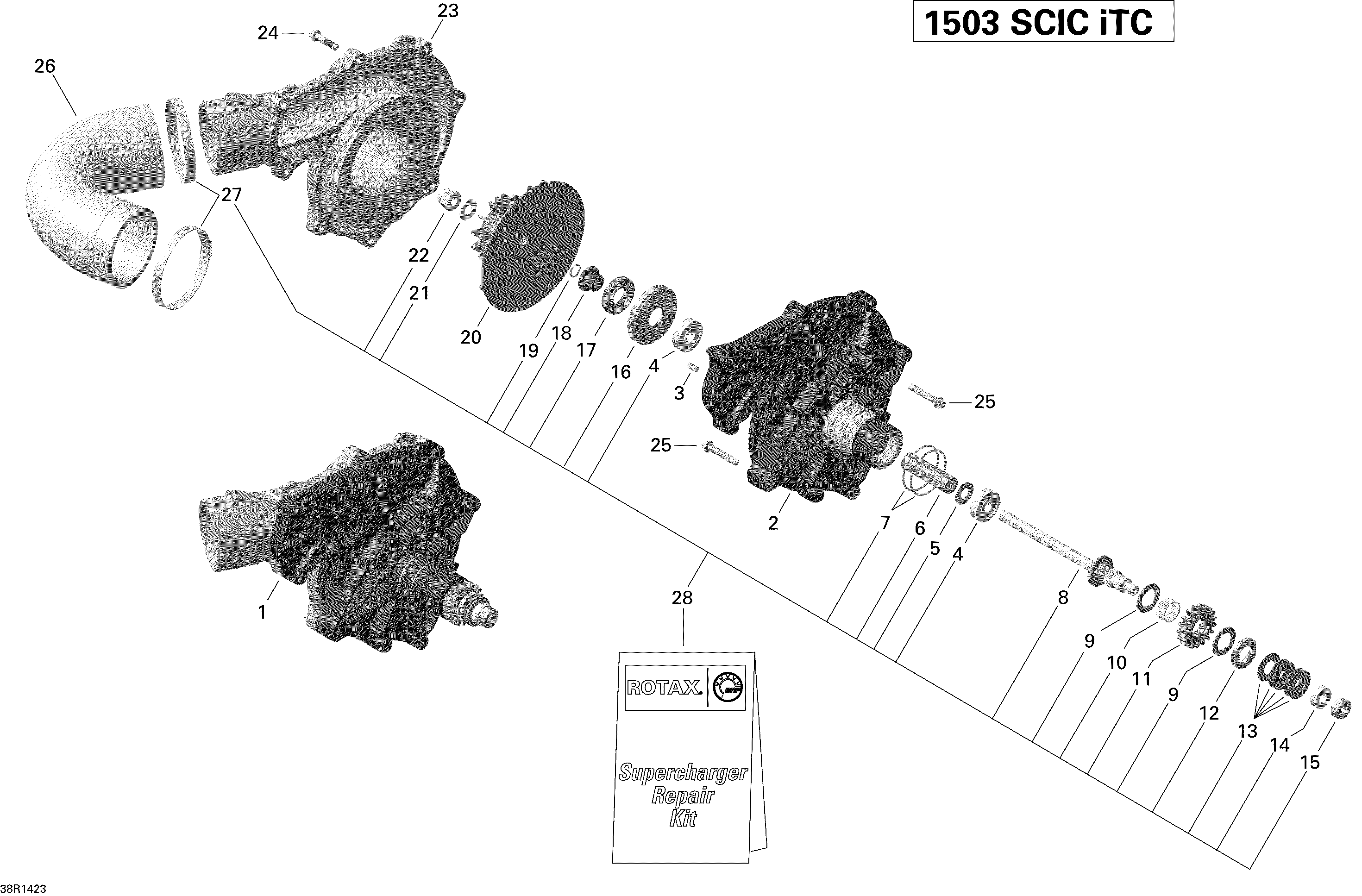

02- Supercharger для BRP GTR 215 - 2014
-
№АртикулНазвание
-
1420881996 Supercharger Ass'y. Includes 1 to 25Supercharger Ass'y. Includes 1 to 25
-
2420867180 Compressor Base PlateCompressor Base Plate
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420832710 Ball BearingBall Bearing
-
5420227685 Thrust WasherThrust Washer
-
7420650270 O-RingO-Ring
-
10420632435 Needle PinNeedle Pin
-
12420926377 Lock WasherLock Washer
-
15420942950 Hex. NutHex. Nut
-
16420926393 Thrust WasherThrust Washer
-
17420950940 Oil SealOil Seal
-
18420947012 Step CollarStep Collar
-
19420950950 O-RingO-Ring
-
20420867191 Compressor ImpellerCompressor Impeller
-
21420627418 ShimShim
-
22420842833 Cap NutCap Nut
-
23420867154 Compressor HousingCompressor Housing
-
24420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
25420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
26420660155 Formed HoseFormed Hose
-
27420851703 Gear ClampGear Clamp
-
28420881102 Supercharger KitSupercharger Kit
