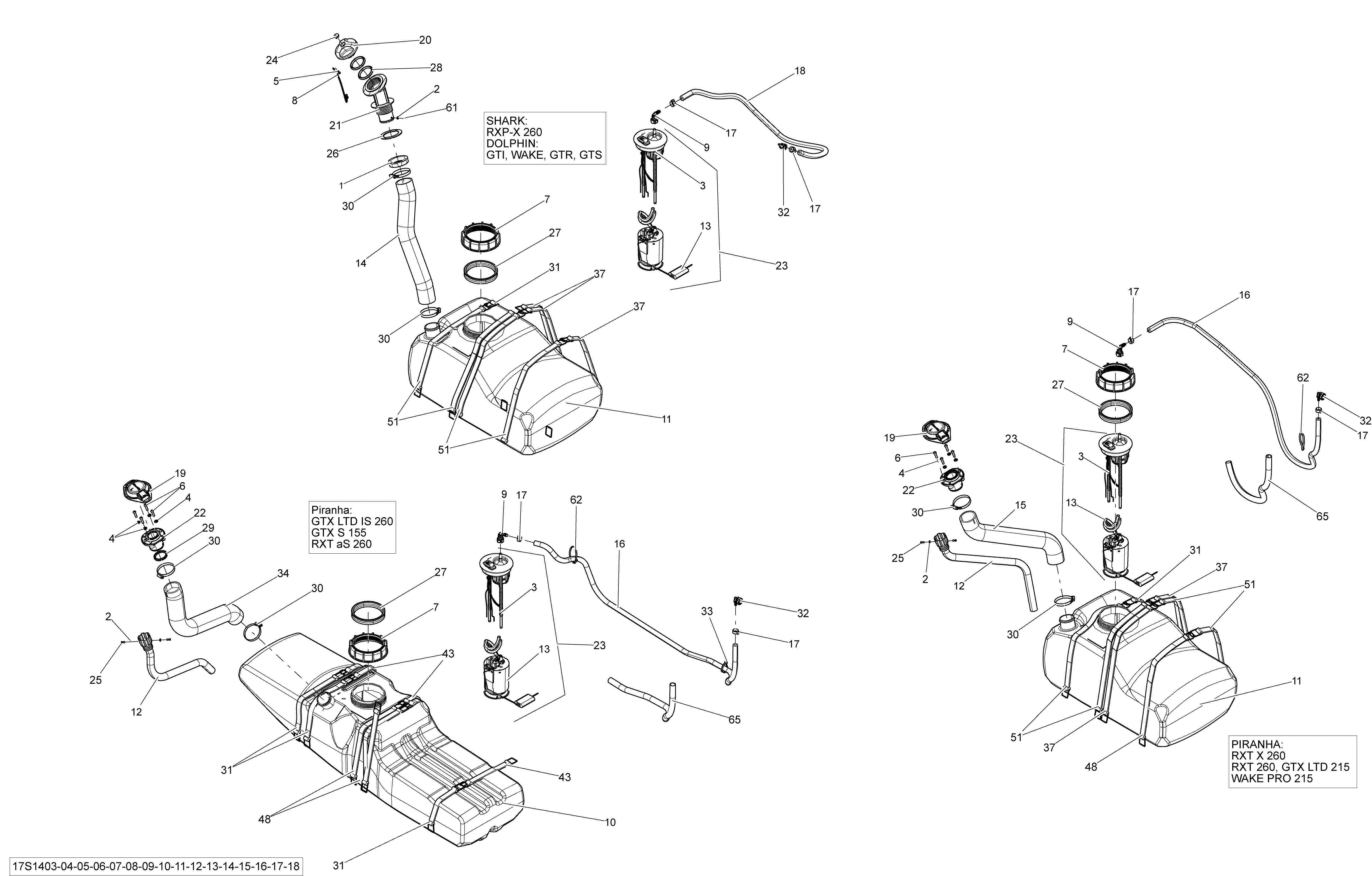

02- Fuel System _17S1408 для BRP GTX LTD 215 - 2014
-
№АртикулНазвание
-
2234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
3270600108 Fuel FilterFuel Filter
-
4234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
7250100062 Special Nut M130Special Nut M130
-
9275500700 Quick Attach 90°Quick Attach 90°
-
11275500754 Fuel Tank Ass'yFuel Tank Ass'y
-
12275500757 Filler Neck, InteriorFiller Neck, Interior
-
13275500780 Sensor LeverSensor Lever
-
15275500797 Filler Neck HoseFiller Neck Hose
-
16296000331 BoyauBoyau
-
17293650053 Crimp ClampCrimp Clamp
-
19275500832 Fuel Cap Ass'yFuel Cap Ass'y
-
22275500848 Fuel Filler NeckFuel Filler Neck
-
23275500850 Fuel Pump Ass'yFuel Pump Ass'y
-
25293150032 Pop Rivet 1/8''Pop Rivet 1/8''
-
27293250173 GasketGasket
-
29293300139 X-RingX-Ring
-
30293650081 Norma ClampNorma Clamp
-
31293850087 Fuel Tank StrapFuel Tank Strap
-
32293710105 Elbow Fitting 90°Elbow Fitting 90°
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37293850093 StrapStrap
-
51293850101 Fuel Tank StrapFuel Tank Strap
-
65415080000 Tubing 16 mmTubing 16 mm
