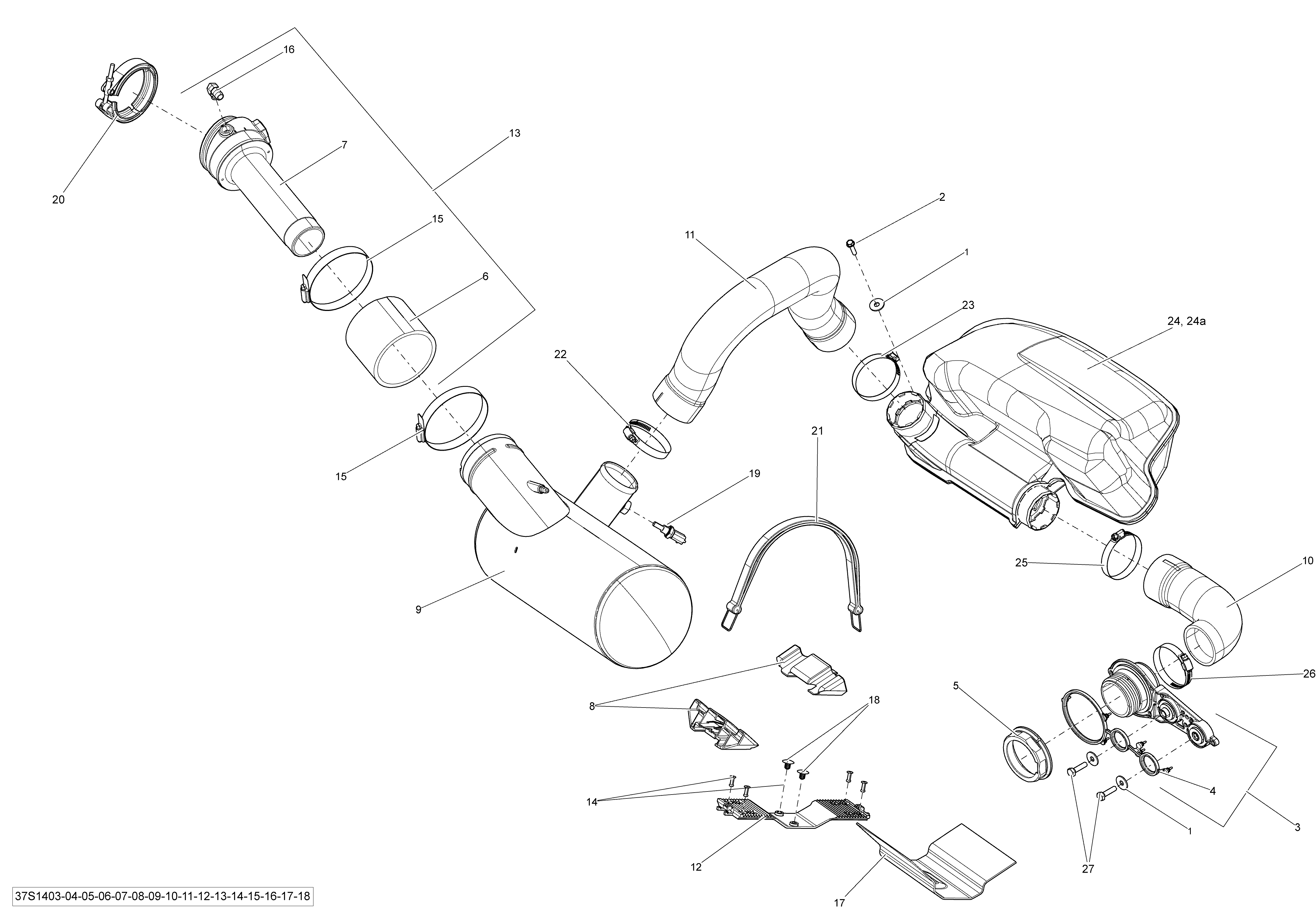

01- Exhaust System _37S1410 для BRP RXT 260 & RS - 2014
-
№АртикулНазвание
-
1234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
2243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
6274001348 HoseHose
-
7274001354 Head Pipe Ass'yHead Pipe Ass'y
-
8274001358 StopperStopper
-
9274001384 MufflerMuffler
-
10274001423 Exhaust Hose, RearExhaust Hose, Rear
-
11274001458 Front Formed Exhaust HoseFront Formed Exhaust Hose
-
12274001479 Exhaust Muffler SupportExhaust Muffler Support
-
13274001489 Head Pipe Ass'yHead Pipe Ass'y
-
14293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293650202 Gear ClampGear Clamp
-
16293700023 Elbow Fitting 90°Elbow Fitting 90°
-
17293830153 Pad RubberPad Rubber
-
18414939500 DartDart
-
19278002895 Temperature sensorTemperature sensor
-
20274001417 Exhaust ClampExhaust Clamp
-
21293850093 StrapStrap
-
22293650179 Tridon ClampTridon Clamp
-
23293650179 Tridon ClampTridon Clamp
-
24274001366 Resonator. Includes 24aResonator. Includes 24a
-
24a293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
25293650179 Tridon ClampTridon Clamp
-
26293650179 Tridon ClampTridon Clamp
