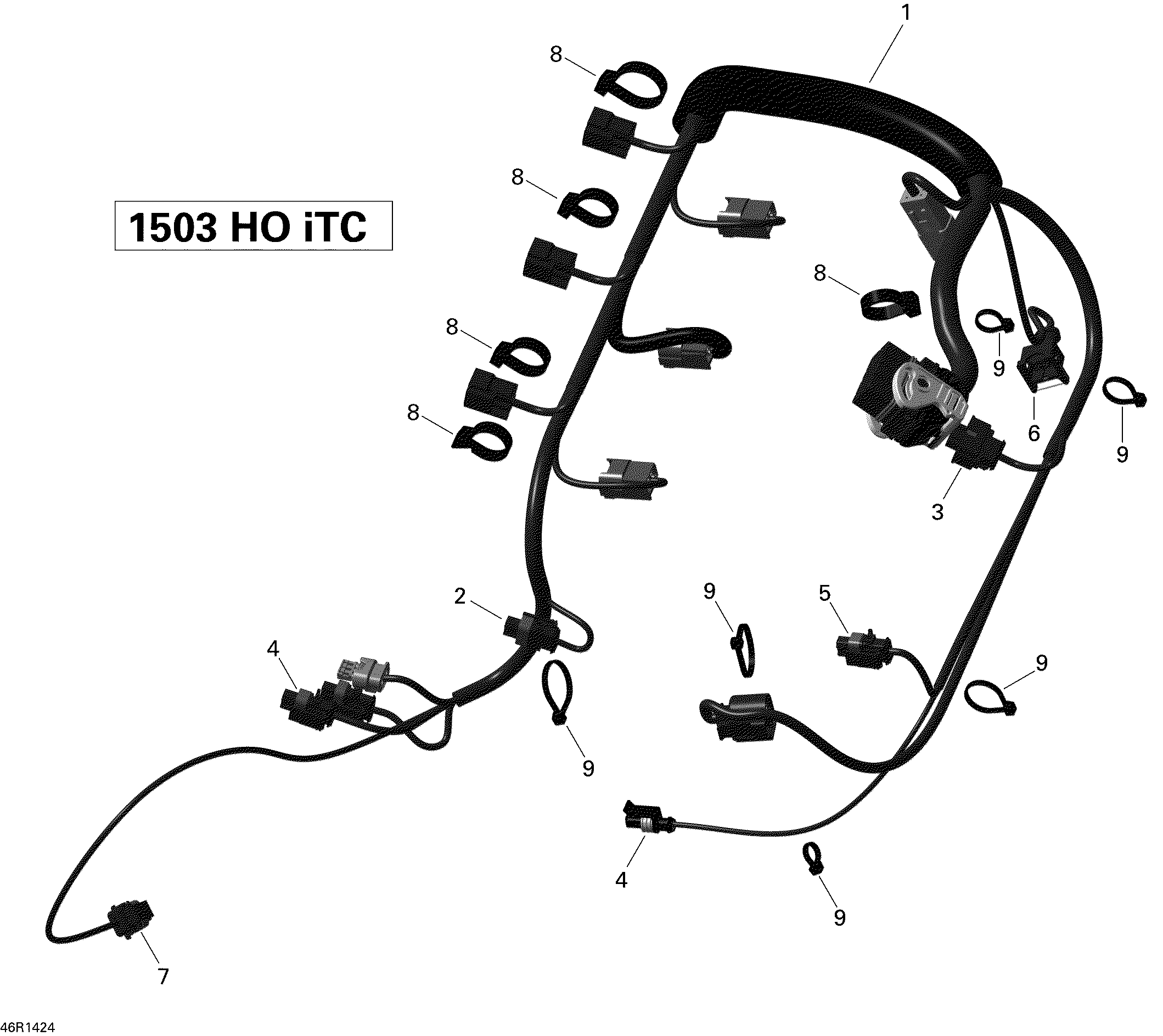

10- Engine Harness для BRP RXT 260 & RS - 2014
-
№АртикулНазвание
-
1420665209 Engine Wiring Harness Ass'y. Inclus 1 a 7Engine Wiring Harness Ass'y. Inclus 1 a 7
-
2710001136 HousingHousing
-
3278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
4278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6415128566 Male Housing, 2 Circuits, AmpMale Housing, 2 Circuits, Amp
-
7278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8420866716 Tie-RapTie-Rap
-
9420866714 Tie RapTie Rap
