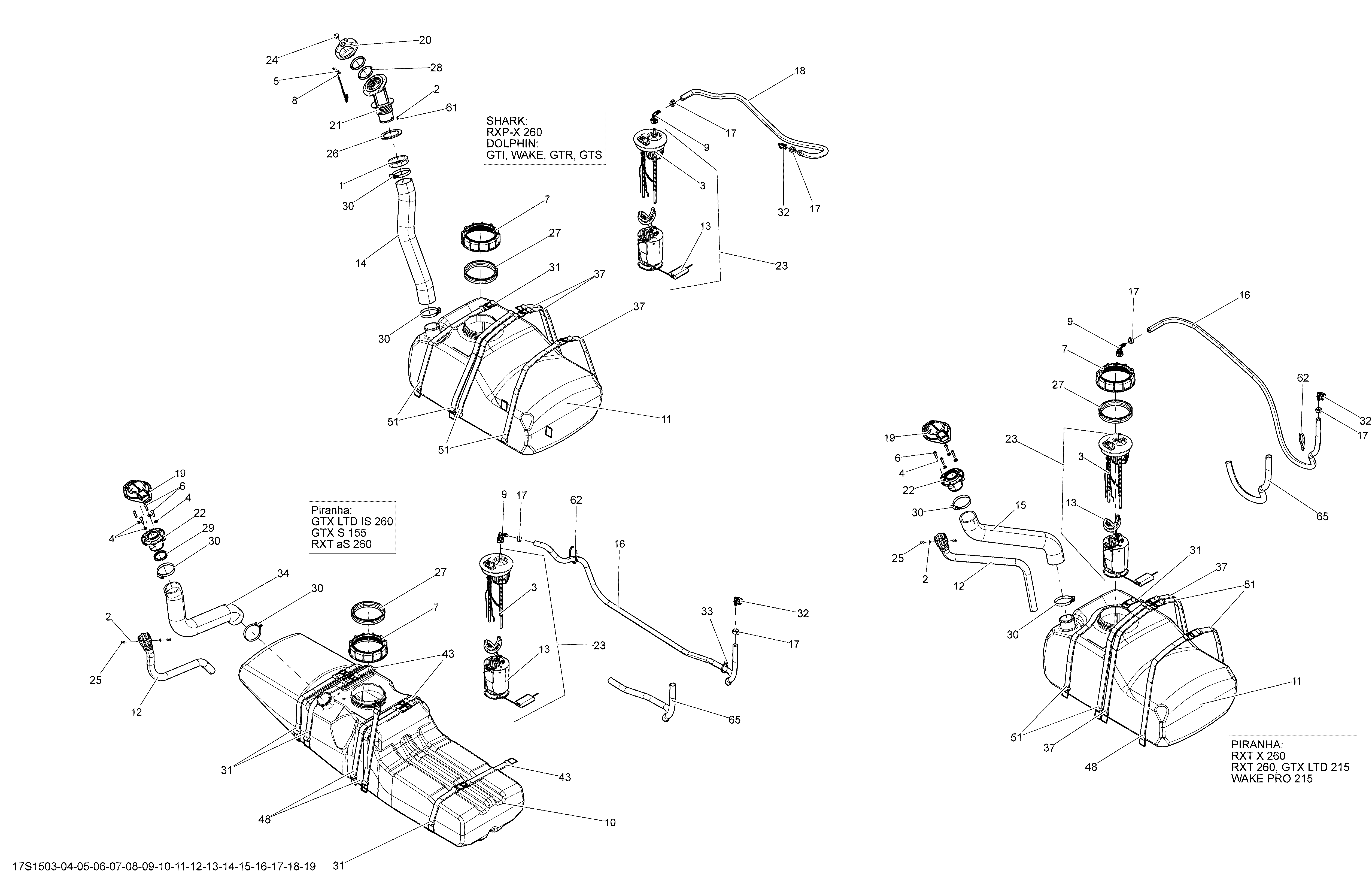

02- Fuel System _17S1516 для BRP GTI LTD 155 - 2015
-
№АртикулНазвание
-
1211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
2234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
3270600108 Fuel FilterFuel Filter
-
5241140060 Screw K40 X 10Screw K40 X 10
-
7250100062 Special Nut M130Special Nut M130
-
8275500507 Fuel Cap ChainFuel Cap Chain
-
9275500700 Quick Attach 90°Quick Attach 90°
-
11275500754 Fuel Tank Ass'yFuel Tank Ass'y
-
13275500780 Sensor LeverSensor Lever
-
14275500918 HoseHose
-
17293650053 Crimp ClampCrimp Clamp
-
18296000331 BoyauBoyau
-
20275500833 Fuel Cap Ass'yFuel Cap Ass'y
-
21275500845 Filler NeckFiller Neck
-
23275500850 Fuel Pump Ass'yFuel Pump Ass'y
-
24293000034 Snap Cap, BlackSnap Cap, Black
-
26293250029 GasketGasket
-
27293250173 GasketGasket
-
28293250285 GasketGasket
-
30293650081 Norma ClampNorma Clamp
-
31293850112 Holding StrapHolding Strap
-
32275500921 Quick DisconnectQuick Disconnect
-
37293850111 StrapStrap
-
51293850115 Holding StrapHolding Strap
-
61390407900 Pop Rivet 1/8''Pop Rivet 1/8''
