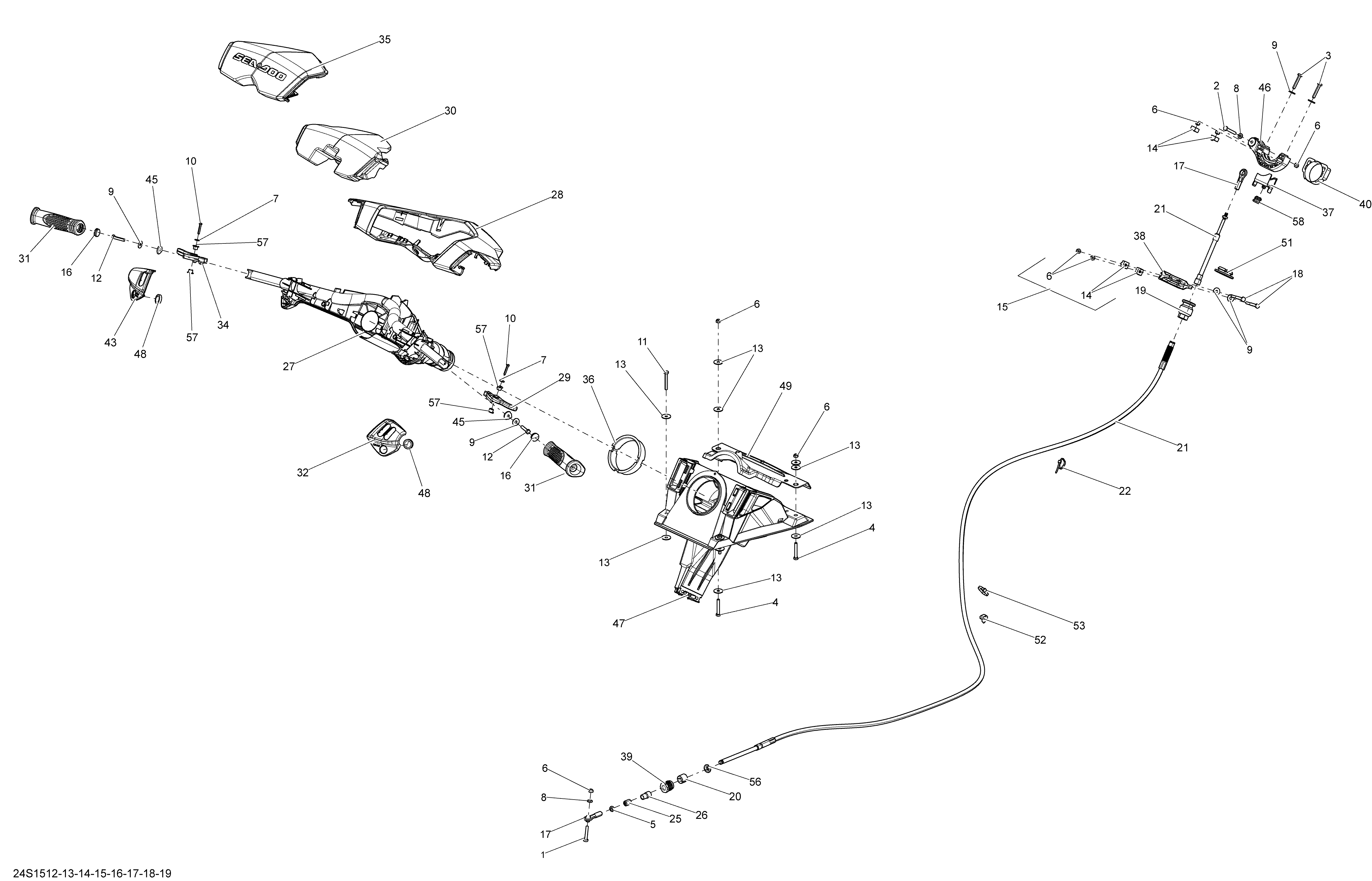

07- Steering _24S1516 для BRP GTI LTD 155 - 2015
-
№АртикулНазвание
-
1207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
2207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
3207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
4245064560 Hex Cap Screw M6X1.0X45 S.GripHex Cap Screw M6X1.0X45 S.Grip
-
5211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
6232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
11245064560 Hex Cap Screw M6X1.0X45 S.GripHex Cap Screw M6X1.0X45 S.Grip
-
12250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
13250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
14269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
15269501166 Nut Housing Ass'yNut Housing Ass'y
-
16277000203 Cap, BlackCap, Black
-
17277000775 Ball JointBall Joint
-
18207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
19277000782 Ajustment KnobAjustment Knob
-
20277001527 Half RingHalf Ring
-
21277001578 Steering Cable Ass'ySteering Cable Ass'y
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25277001582 Small BootSmall Boot
-
26277001583 Large BootLarge Boot
-
27277001949 Steering ColumnSteering Column
-
28277001922 Steering CoverSteering Cover
-
29277001944 Throttle HandleThrottle Handle
-
30277001921 Handle Bar FoamHandle Bar Foam
-
31277001624 Handle GripHandle Grip
-
32277001755 RH Housing CoverRH Housing Cover
-
34277001945 Reverse HandleReverse Handle
-
35277001886 Steering Pad, MagnesiumSteering Pad, Magnesium
-
36277001653 Wear RingWear Ring
-
37277001654 SpacerSpacer
-
38277001655 Thrust Support Ass'yThrust Support Ass'y
-
39277001729 Steering Cable LockSteering Cable Lock
-
40277001741 Wear RingWear Ring
-
43277001860 LH Housing CoverLH Housing Cover
-
47277001947 Steering Support Ass'ySteering Support Ass'y
-
48277001887 Knob Switch, RedKnob Switch, Red
-
49293000116 DeflectorDeflector
-
51293720090 Cable GrommetCable Grommet
-
52293730040 Mount DartMount Dart
-
53293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
56293830063 Rubber WasherRubber Washer
-
57293900091 BushingBushing
-
58517302716 CapCap
