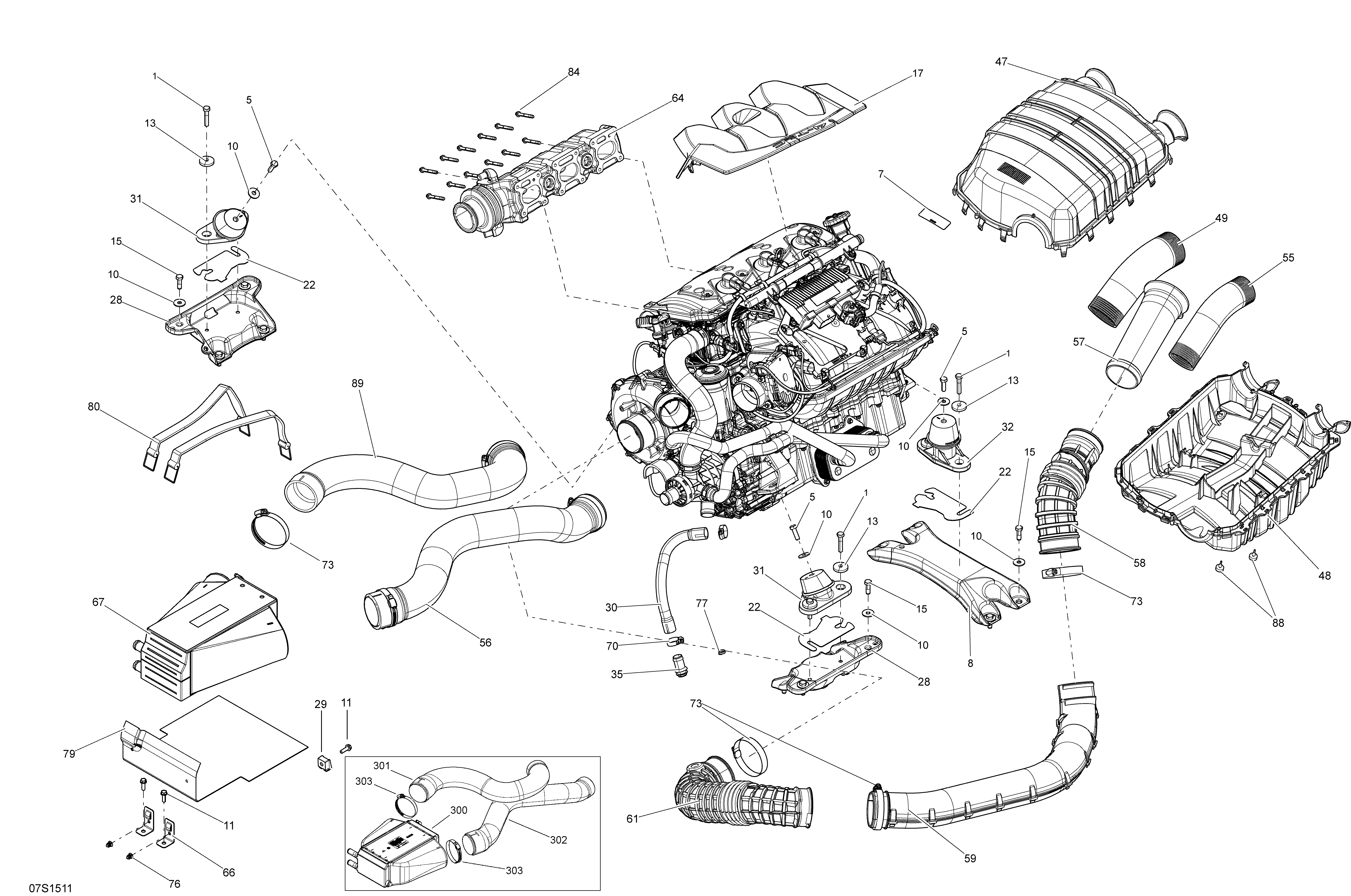

01- Engine _07S1511 для BRP RXP-X 260 & RS - 2015
-
№АртикулНазвание
-
1207284060 Hex. Screw M8 X 40, Scotch Grip. Model-Hull LFIHex. Screw M8 X 40, Scotch Grip. Model-Hull LFI
-
1250000782 Hexagonal Head Cap Screw M8 X 45. Model-Hull ACMPHexagonal Head Cap Screw M8 X 45. Model-Hull ACMP
-
5207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
8270000842 Front SpacerFront Spacer
-
10234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
13250200018 Cone WasherCone Washer
-
15250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
17270000680 Engine CoverEngine Cover
-
22270000762 Shim 1.3 mmShim 1.3 mm
-
28270000843 Rear SpacerRear Spacer
-
29270000946 Holding Strap. Model-Hull ACMPHolding Strap. Model-Hull ACMP
-
29270000854 Holding Strap. Model-Hull LFIHolding Strap. Model-Hull LFI
-
30270000864 Formed HoseFormed Hose
-
31270000882 Rubber MountRubber Mount
-
32270000885 Rubber MountRubber Mount
-
35273000234 BreatherBreather
-
47273000288 Air Silencer UpperAir Silencer Upper
-
48273000289 Air Silencer LowAir Silencer Low
-
49273000290 Air Silencer HoseAir Silencer Hose
-
55273000299 Air Silencer TubeAir Silencer Tube
-
56273000300 Outlet Hose CoolerOutlet Hose Cooler
-
57273000301 Intake HoseIntake Hose
-
58273000306 Hose ConnectorHose Connector
-
59273000311 Intake Hose, CenterIntake Hose, Center
-
61273000328 Hose Intake, RearHose Intake, Rear
-
64274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
66275500743 Strap Clip 90°Strap Clip 90°
-
67276000332 IntercoolerIntercooler
-
70293650051 Tridon Gear ClampTridon Gear Clamp
-
73293650179 Tridon ClampTridon Clamp
-
76293730016 Dart, BlackDart, Black
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
79293830146 Rubber PadRubber Pad
-
80293850093 StrapStrap
-
84420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
88708000759 Rubber StopperRubber Stopper
-
89273000282 Inlet Hose CoolerInlet Hose Cooler
-
300276000397 Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
-
301273000361 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
302273000362 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
303293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7Tridon Gear Clamp. Ref Service Bulletin 2015-7
