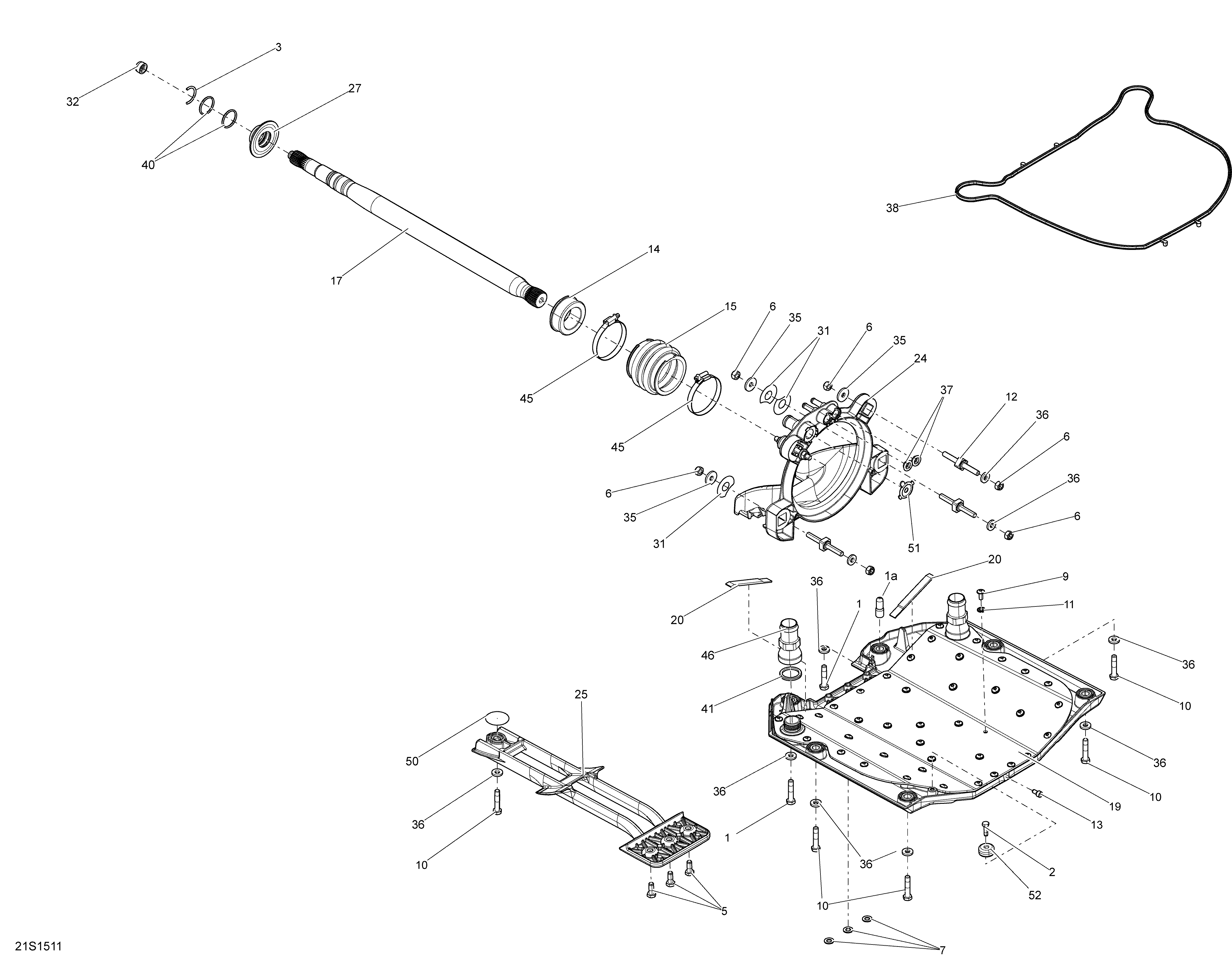

05- Propulsion _21S1511 для BRP RXP-X 260 & RS - 2015
-
№АртикулНазвание
-
1250000782 Hexagonal Head Cap Screw M8 X 45. Hull LFIHexagonal Head Cap Screw M8 X 45. Hull LFI
-
1250000812 Hexagonal Head Cap Screw M8 X 75. Hull ACMPHexagonal Head Cap Screw M8 X 75. Hull ACMP
-
1a293000105 Cap Plug. Hull ACMPCap Plug. Hull ACMP
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
3271001577 C-ClipC-Clip
-
5207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
10250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
11250200114 Sealing WasherSealing Washer
-
12250300046 Square StudSquare Stud
-
13250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
14271001420 Carbon RingCarbon Ring
-
15271001933 BellowBellow
-
17271001719 Drive ShaftDrive Shaft
-
19271001750 Riding Plate Ass'yRiding Plate Ass'y
-
20293250087 Gasket, NeopreneGasket, Neoprene
-
24271001931 Pump Support. Hull ACMPPump Support. Hull ACMP
-
24271001865 Pump Support. Hull LFIPump Support. Hull LFI
-
25271001867 Anodis Pump GridAnodis Pump Grid
-
27271001892 Support RingSupport Ring
-
31272000053 Shim, 0.3 mmShim, 0.3 mm
-
32272000173 Drive Shaft PlugDrive Shaft Plug
-
35279000164 Flat WasherFlat Washer
-
36293050001 Flat WasherFlat Washer
-
37293250084 Watertight SealWatertight Seal
-
38293250235 SealSeal
-
40293300107 O-RingO-Ring
-
41293300121 O-RingO-Ring
-
45293650079 Norma ClampNorma Clamp
-
46293710111 Straight Plastic FittingStraight Plastic Fitting
-
50293830047 Protector DiskProtector Disk
-
51271001903 ReducerReducer
-
52271001920 Anode ZincAnode Zinc
